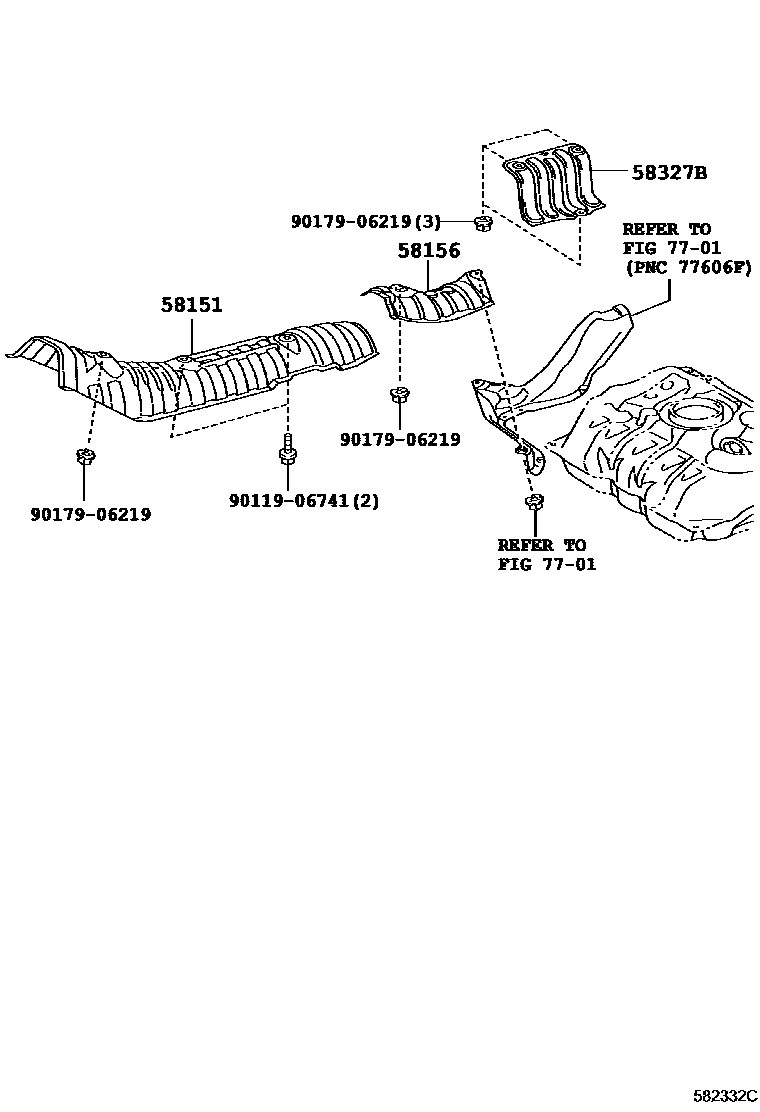

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52060iNCP9#200508-200605

main58151-52061iNCP9#200606-200808

main58151-52062iNCP9#200911-201107

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52010iNCP9#200508-200808

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52110iNCP9#200508-200808

main58327-52111iNCP9#201001-201107

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 1 diagram in section
