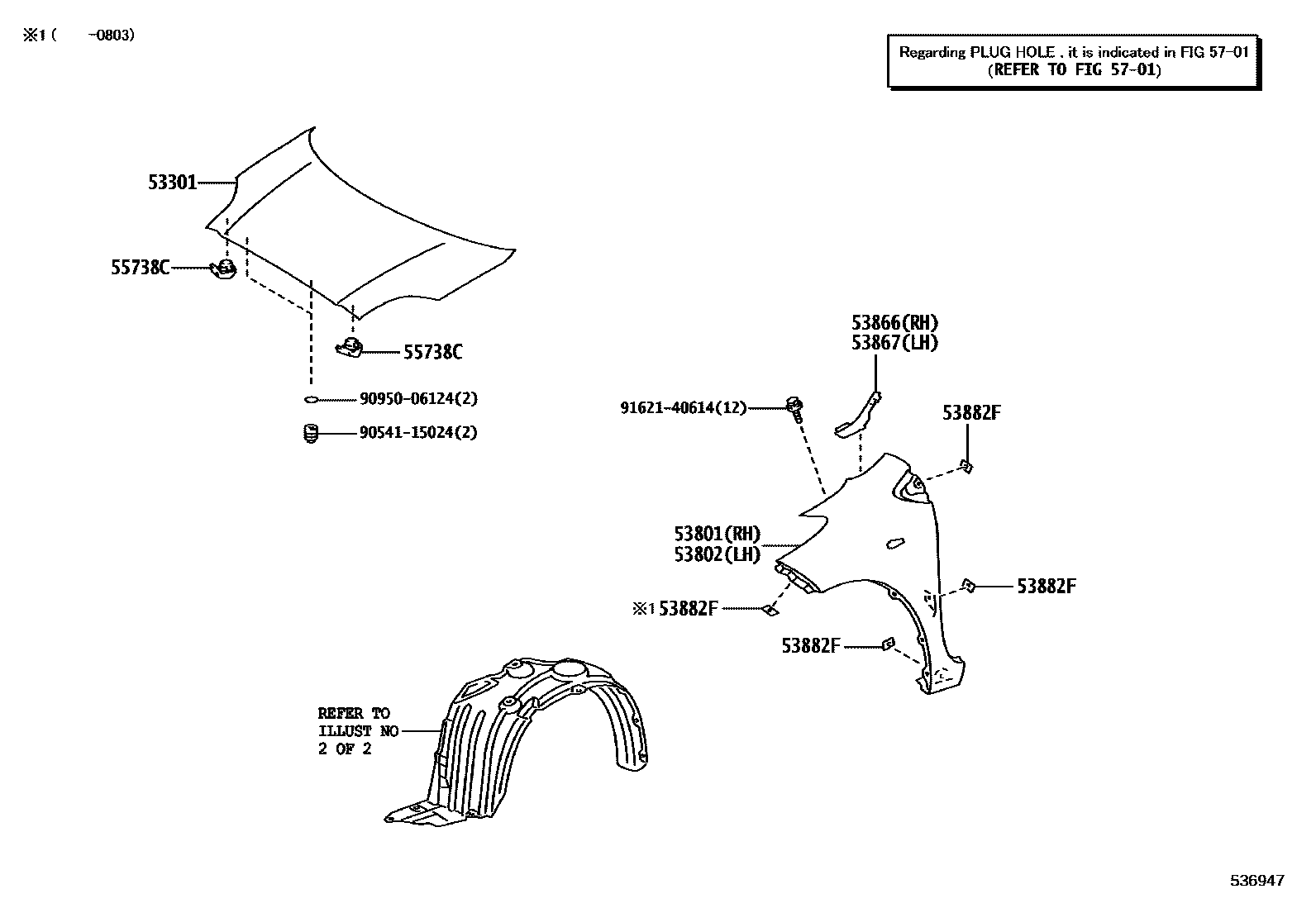

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52230iNCP9#200508-201108

53801FENDER SUB-ASSY, FRONT RH

main53811-52210iNCP9#200508-201001

main53811-52410iNCP9#201002-201108

53802FENDER SUB-ASSY, FRONT LH

main53812-52210iNCP9#200508-201001

main53812-52380iNCP9#201002-201108

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52080iNCP9#200508-201107

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52080iNCP9#200508-201107

53882FSEAL, FRONT FENDER

main53882-16030iNCP9#200508-201107

55738CSTOPPER, HOOD, RH

main55738-52050iNCP9#200508-201010

main55738-52060iNCP9#201011-201107

5701HOLE PLUG

→ Go to FIG 57-01

9054115024

main90541-15024

9095006124

main90950-06124

9162140614

main91621-40614

11 parts on this diagram · 2 diagrams in section
