4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-52221i200508-200808

main47311-52240i200508-200808

main47311-52370i200808-201107

main47311-52390i200808-201107

main47311-52260i200704-200808

ABS-WITHOUT

main47311-52450i200908-201107

VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260i200508-200808

47312TUBE, FRONT BRAKE, NO.2

main47312-52201i200508-200808

main47312-52220i200508-200808

main47312-52330i200808-201107

main47312-52350i200808-201107

main47312-52240i200704-200808

ABS-WITHOUT

main47312-52400i200908-201107

VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK

47313TUBE, FRONT BRAKE, NO.3

main47313-52110i200508-200808

main47313-52130i200508-200808

main47313-52160i200808-201107

main47313-52190i200808-201107

main47313-52150i200704-200808

ABS-WITHOUT

main47313-52170i200908-201107

VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E07i200508-200808

RH

main90947-02E08i200508-200808

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2i200508-200808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2i200508-200808

47315TUBE, FRONT BRAKE, NO.5

main47315-52140i200508-200808

main47315-52160i200508-200808

main47315-52190i200808-201107

main47315-52210i200808-201107

main47315-52180i200704-200808

ABS-WITHOUT

main47315-52200i200908-201107

VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK

47316TUBE, FRONT BRAKE, NO.6

main47316-52100i200508-200808

main47316-52120i200508-200808

main47316-52150i200808-201107

main47316-52180i200808-201107

main47316-52140i200704-200808

ABS-WITHOUT

main47316-52160i200908-201107

VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK

47317TUBE, FRONT BRAKE, NO.7

main47317-52100i200508-200808

main47317-52120i200508-200808

main47317-52150i200808-201107

main47317-52180i200808-201107

main47317-52140i200704-200808

ABS-WITHOUT

main47317-52160i200908-201107

VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E09i200808-201107

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E10i200508-200808

47321TUBE, REAR BRAKE, NO.1

main47321-52270i200508-200808

47322TUBE, REAR BRAKE, NO.2

main47322-52250i200508-200808

47323TUBE, REAR BRAKE, NO.3

main47323-52100i200508-200808

47324TUBE, REAR BRAKE, NO.4

main47324-52090i200508-200808

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868×2i200808-201107

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00857i200808-201107

47372CLAMP, BRAKE TUBE, NO.2

main90949-01969i200508-200808

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C82×2i200508-200808

main90949-01D27i200808-201107

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D02i200508-200808

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020×2i200508-200808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9167180614

main91671-80614

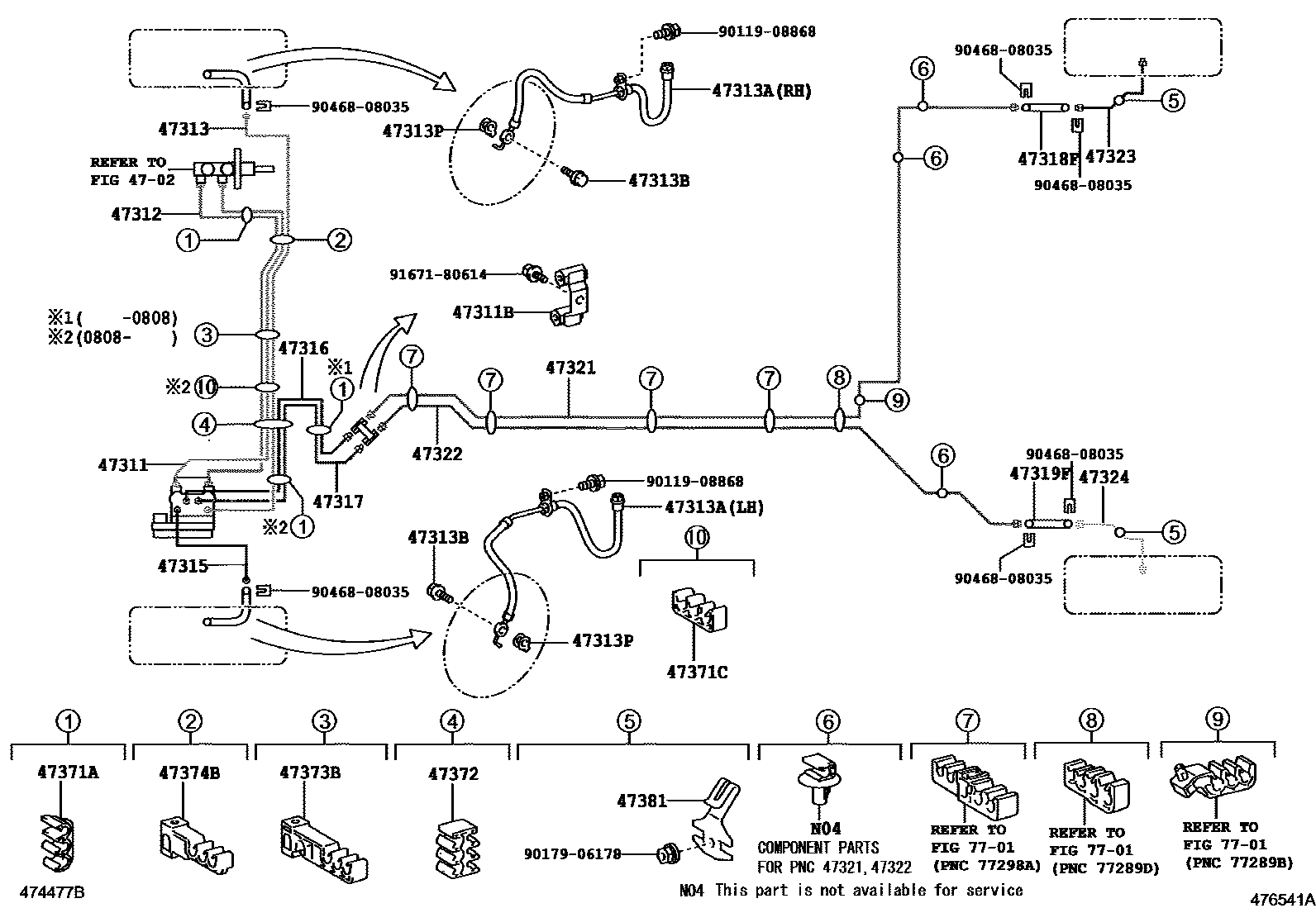

BRAKE TUBE & CLAMP
