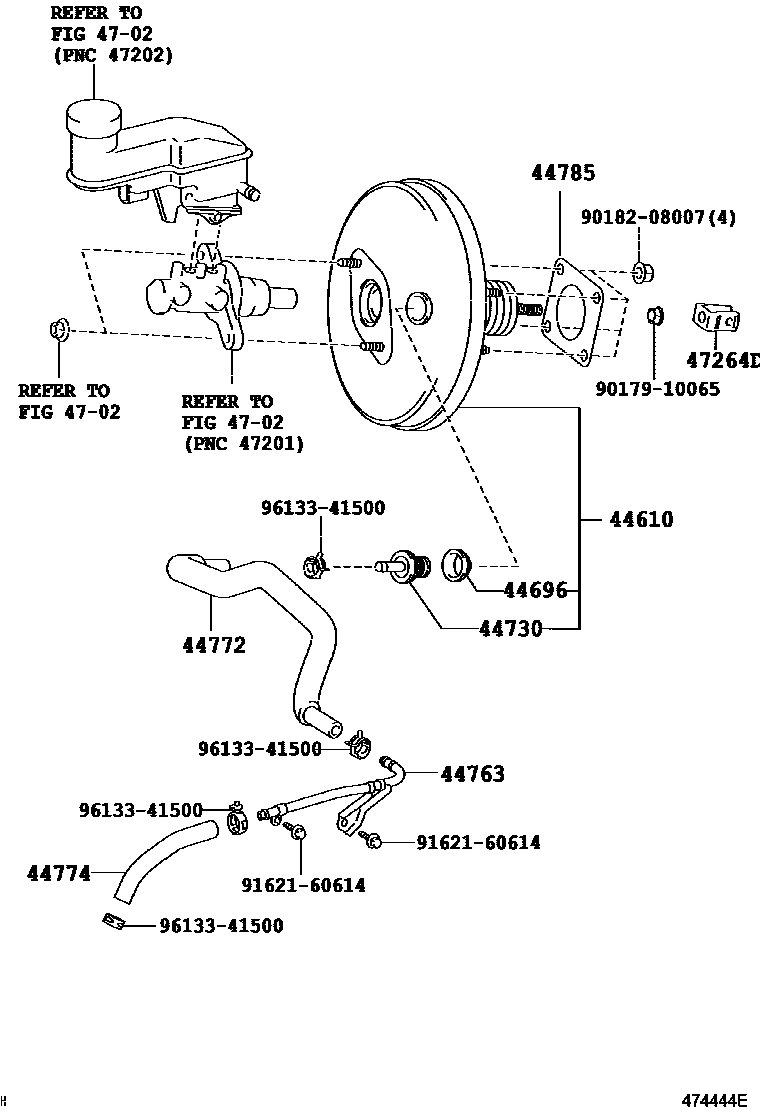

BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; VSC-WITH&TIRE & DISK WHEEL-185/60R15 5.5J BLACK
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
44763TUBE, BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44774HOSE, UNION TO CONNECTOR TUBE
44785GASKET, BRAKE BOOSTER
4702BRAKE MASTER CYLINDER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
9017910065
main90179-10065
9018208007
main90182-08007
9162160614
main91621-60614
9613341500
main96133-41500
13 parts on this diagram · 2 diagrams in section
