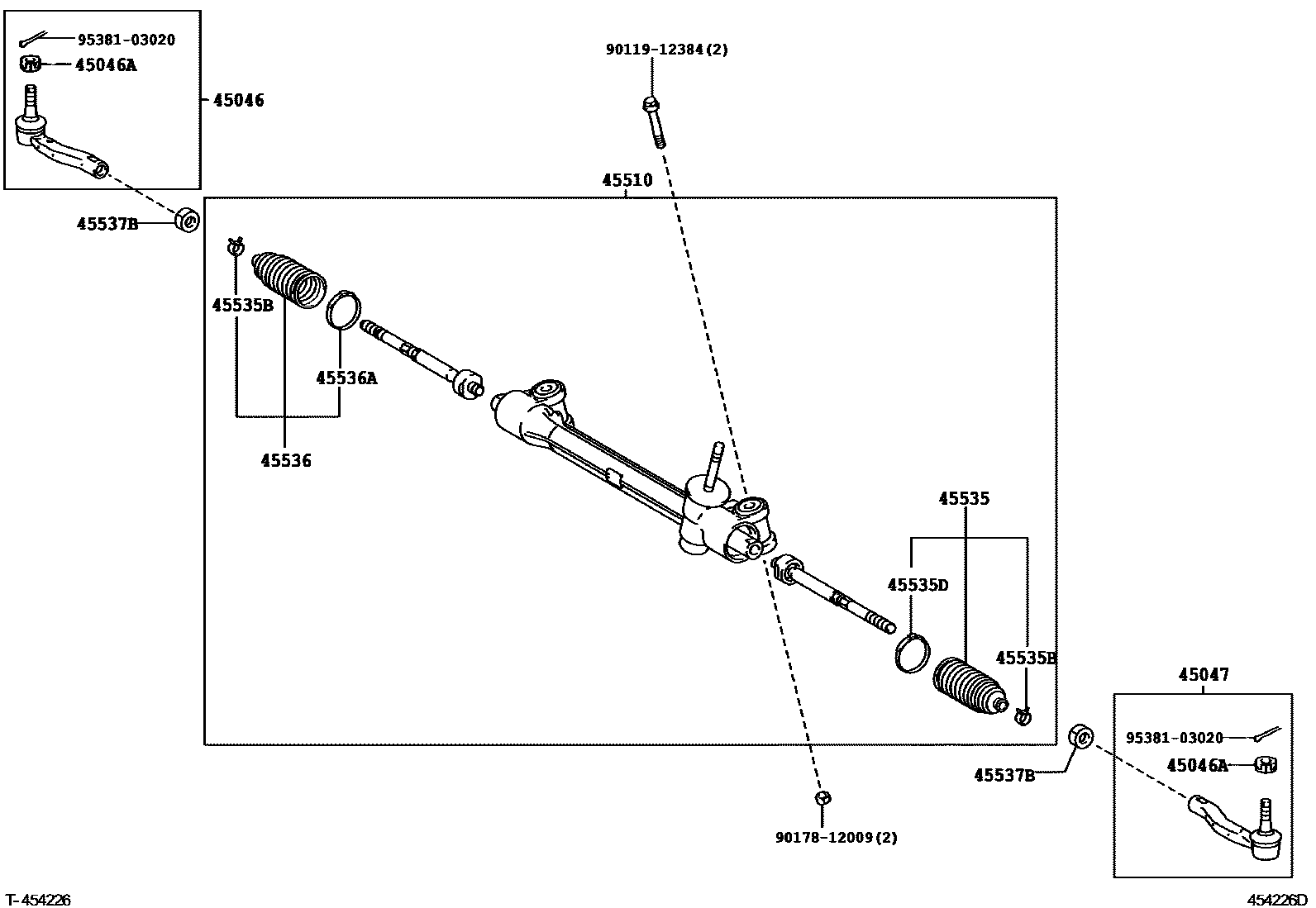

FRONT STEERING GEAR & LINK

0001 1LHD 0002 1RHD

45046END SUB-ASSY, TIE ROD, RH

main45046-59195iNCP9#200508-201107

sub45046-59255

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNCP9#200508-201107

45047END SUB-ASSY, TIE ROD, LH

main45047-59135iNCP9#200508-201107

sub45047-59165

45510GEAR ASSY, STEERING

main45510-52040iNCP9#..RHD200508-201107

sub45510-52041

main45510-52140iNCP9#..LHD200508-201107

sub45510-52141

45535BOOT, STEERING RACK, NO.1

main45535-59015iNCP9#200508-201104

sub45535-59035

main45535-59035iNCP9#201105-201107

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNCP9#200508-201107

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNCP9#200508-201107

45536BOOT, STEERING RACK, NO.2

main45535-59015iNCP9#200508-201104

sub45535-59035

main45535-59035iNCP9#201105-201107

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNCP9#200508-201107

45537BNUT, RACK END LOCK

main90179-14019iNCP9#200508-201107

9011912384

main90119-12384

9017812009

main90178-12009

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section
