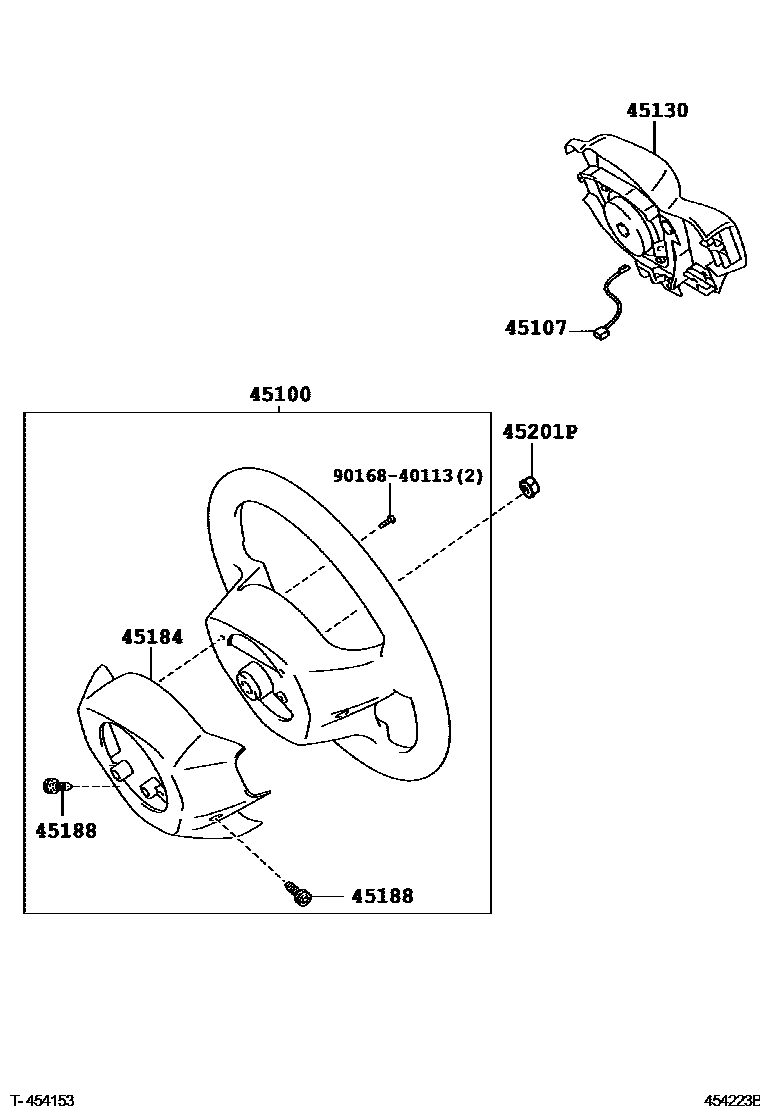

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52321-B0i200508-200808

3-SPOKE,URETHANE,DK.GRAY,TRIM18,19

main45100-52331-B0i200808-201108

3-SPOKE,LEATHER,AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEAT.3SP,A/BST.SW B,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,3SP,A/B,STG SW A,DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010i200808-201107

AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100; AUDIO-AM/FM CD 4SPEAKER EXTRA; AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH); AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH); AUDIO-RADIOLESS 4SPEAKER MULTI; STEERING WHEEL-LEAT.3SP,A/BST.SW B; STEERING WHEEL-LEATHER,3SP,A/B,STG SW A

45130BUTTON ASSY, HORN

main45130-52350-B0i200808-201107

DK.GRAY,TRIM1#

main45130-52360-B0i200508-200808

DK.GRAY,TRIM18,19; STEERING WHEEL-LEATHER,3SP,A/B,STG SW A,DK.GRAY,TRIM18,19

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52090-B0i200508-200808

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200508-200808

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200508-200808

9016840113

main90168-40113

7 parts on this diagram · 2 diagrams in section
