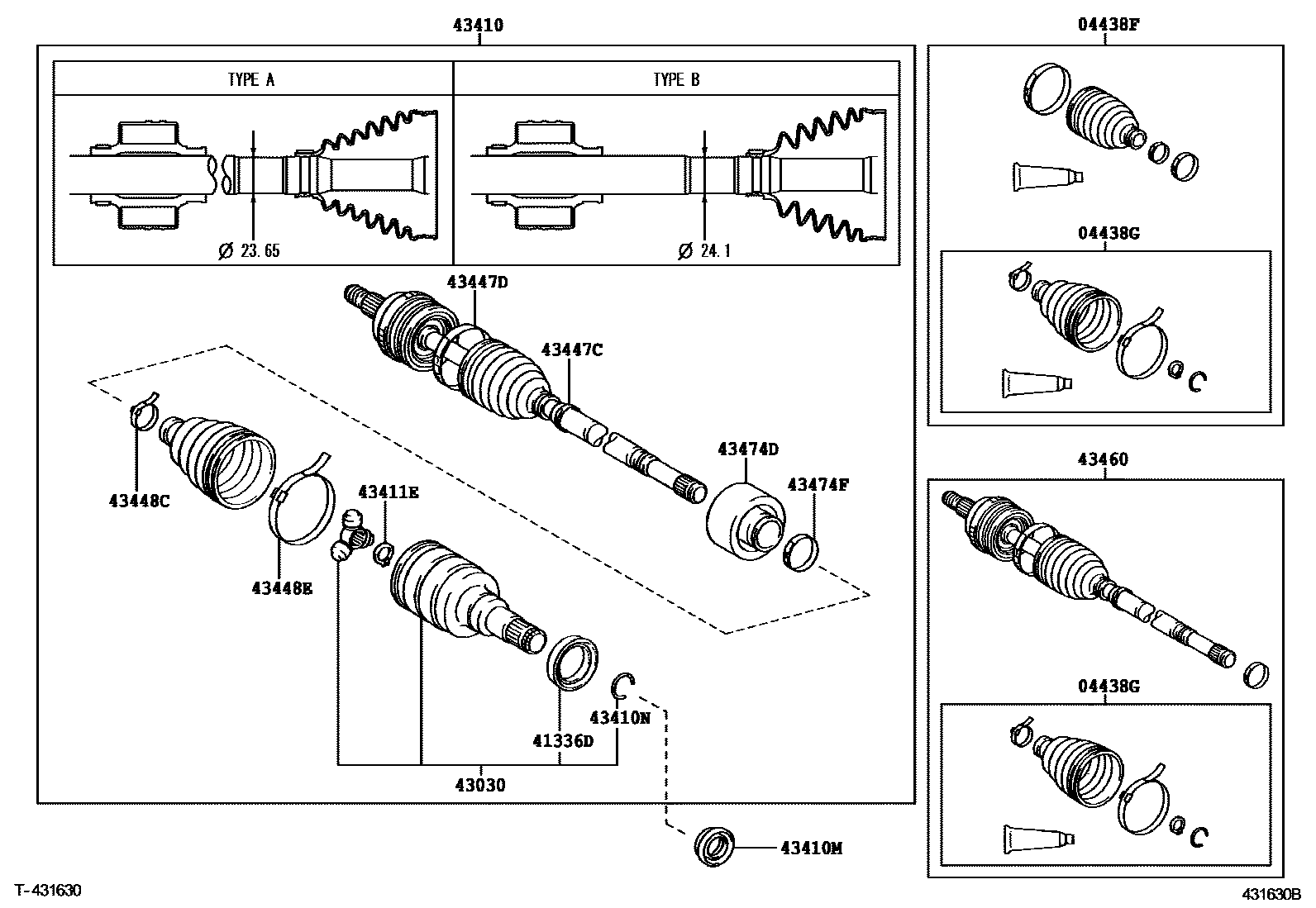

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12530iNCP91200604-200909

sub04427-52671

main04427-52260iNCP90200510-200603

TYPE B:REFER ILLUST.

sub04427-52580

main04427-52260iNCP91200508-200603

sub04427-52580

main04427-52580iNCP90200604-200909

TYPE B:REFER ILLUST.

sub04427-52671

main04427-52671iNCP90200909-200910

TYPE B:REFER ILLUST.

sub04427-52890

main04427-52690iNCP90200510-201107

TYPE A:REFER ILLUST.

sub04427-52691

main04427-52690iNCP90200508-200510

sub04427-52691

main04427-52890iNCP90200911-201002

TYPE B:REFER ILLUST.

sub04427-52891

main04427-52891iNCP90201003-201107

TYPE B:REFER ILLUST.

sub04427-52897

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52140iNCP90200508-200510

main04437-52140iNCP90200510-201107

TYPE A:REFER ILLUST.

main04437-52190iNCP91200508-200808

sub04437-52191

main04437-52190iNCP90200510-200909

TYPE B:REFER ILLUST.

sub04437-52191

main04437-52191iNCP91200909-201107

TYPE B:REFER ILLUST.

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP91200508-201107

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-10011iNCP90200510-201107

PNC 43410=TYPE B

sub43403-0W031

main43403-10011iNCP91200508-200808

sub43403-0W031

main43403-16020iNCP90200510-201107

PNC 43410=TYPE A

main43403-16020iNCP90200508-200510

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52200iNCP90200510-201003

TYPE A:REFER ILLUST.

sub43410-52201

main43410-52200iNCP90200508-200510

sub43410-52201

main43410-52201iNCP90201004-201108

TYPE A:REFER ILLUST.

main43410-52210iNCP91200510-201108

TYPE B:REFER ILLUST.

sub43410-52211

main43410-52210iNCP91200508-200808

sub43410-52211

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCP90..4FC200508-201108

main90311-34031iNCP91..4FC200508-201108

sub90311-34045

main90311-34033iNCP9#..5F200811-201102

sub90311-34039

main90311-34039iNCP9#..5F201102-201108

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP9#200508-201107

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-16020iNCP90200808-201107

PNC 43410=TYPE A

main90520-22001iNCP91200508-200808

sub90520-22029

main90520-22001iNCP90200510-201107

PNC 43410=TYPE B

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52240iNCP90200508-200809

main42345-52260iNCP91200508-201107

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52230iNCP90200508-200809

main42345-52250iNCP91200508-201107

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16140iNCP90200808-201107

PNC 43410=TYPE A

main90949-01078iNCP90200510-201107

PNC 43410=TYPE B

main90949-01078iNCP91200508-200808

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16150iNCP90200808-201107

PNC 43410=TYPE A

main90949-01146iNCP90200510-201107

PNC 43410=TYPE B

main90949-01146iNCP91200508-200808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59315iNCP90200510-201004

TYPE A:REFER ILLUST.

sub43460-59316

main43460-59315iNCP90200508-200510

sub43460-59316

main43460-59316iNCP90201004-201107

TYPE A:REFER ILLUST.

sub43460-59317

main43460-59415iNCP90200510-200909

TYPE B:REFER ILLUST.

sub43460-59416

main43460-59415iNCP91200508-200808

sub43460-59416

main43460-59416iNCP91200909-201107

TYPE B:REFER ILLUST.

sub43460-59666

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP91200508-200808

main43474-52030iNCP90200510-201107

PNC 43410=TYPE B

main43474-52040iNCP90200808-201107

PNC 43410=TYPE A

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNCP91200508-201107

15 parts on this diagram · 2 diagrams in section
