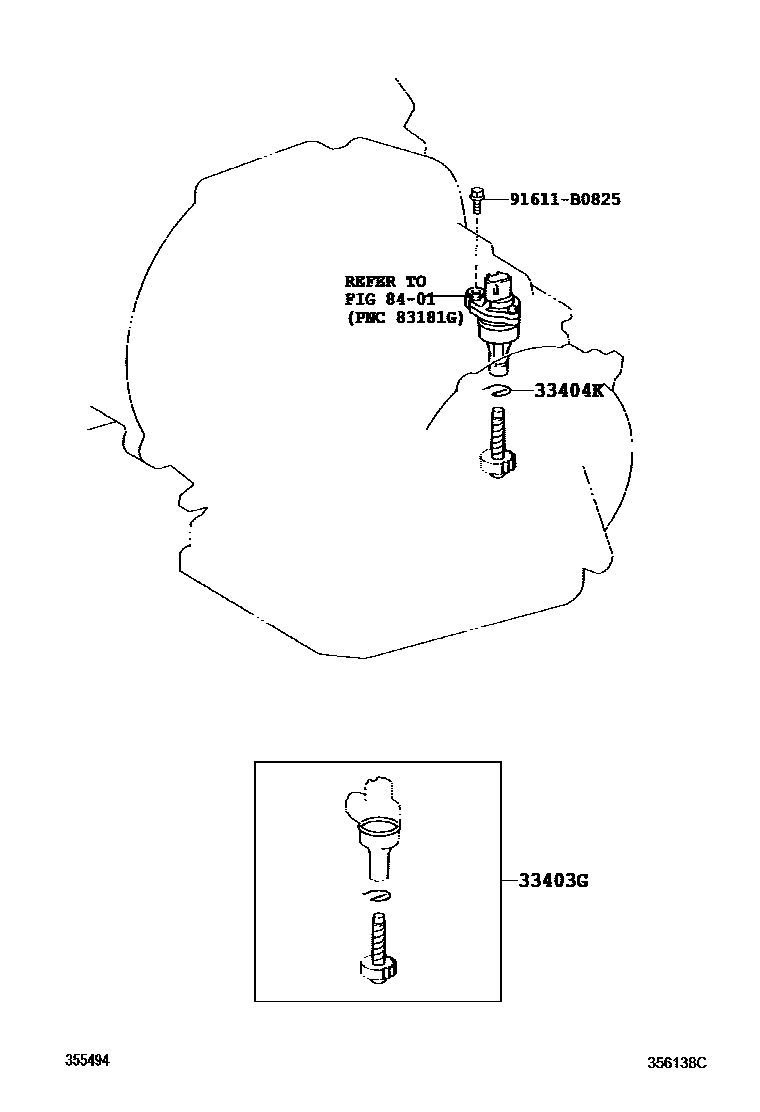

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455i200808-201108

N=30,MARK 30:35,ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&TIRE & DISK WHEEL-185/60R15 5.5JALUMINUM ROUGH ROAD SPEC.; N=30,MARK 30:35,ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&TIRE & DISK WHEEL-185/60R15 5.5JBLACK ROUGH ROAD SPEC.

main33403-19465i200808-201108

N=31,MARK 31:35,ABS(ANTI-LOCK BRK SYSTM)-WITHOUT

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i200808

ABS(ANTI-LOCK BRK SYSTM)-WITHOUT; ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROADSPEC.

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section
