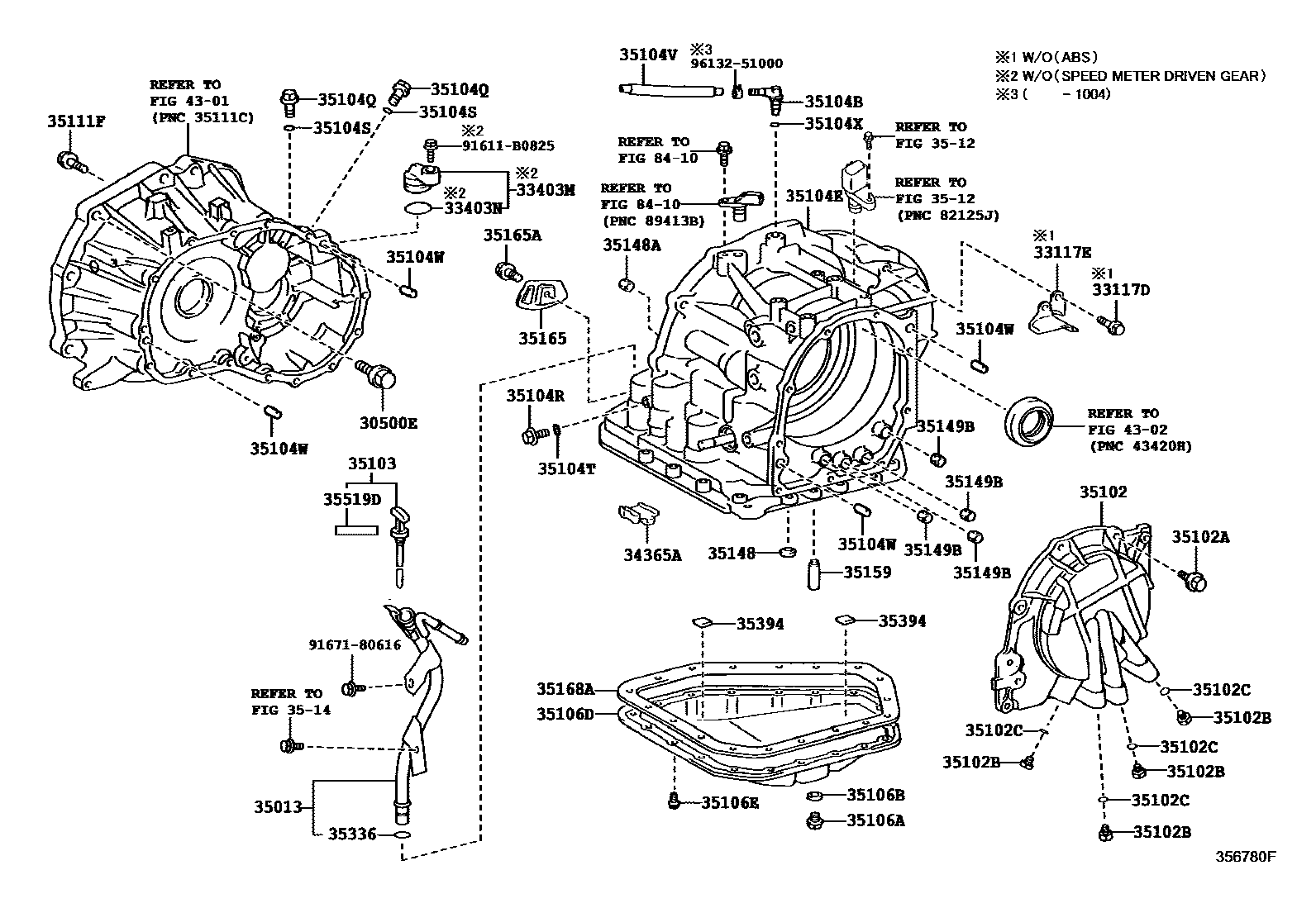

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U441E 0002 1U340E 0003 1U340E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91612-61045200606-201108

main91612-61050200508-200606

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230200508-201108

main33403-35230200508-201108

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018200508-200808

main96711-24030200508-200808

34365ARETAINER, OUTER RACE

main34365-52012200508-200808

main34365-52020200508-200808

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-52140200508-201107

main35013-52150200508-201107

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020200508-200808

main35102-52030200508-200808

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365200508-200808

main90105-08375200508-200808

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001200508-200808

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196200508-200808

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-52140200508-201107

main35103-52160200508-201107

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156200508-200808

main90930-03166200508-200808

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52031200508-201003

main35104-52032201003

main35104-52090200508-200808

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001200508-200808

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001200508-200808

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196200508-200808

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196200508-200808

35104VHOSE (FOR BREATHER PLUG)

main90447-11039200508-200808

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017200508-200808

main90250-10034200508-200808

35104XRING, O (FOR BREATHER PLUG)

main90301-06005200508-200808

main90301-08015200508-200808

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011200508-200808

main90341-18016200508-200808

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010200508-200808

main90430-18008200508-200808

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020200508-200808

main35106-52030200508-200808

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173200508-200808

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071200508-201108

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35148GASKET, GOVERNOR APPLY, NO.1

main35145-60020200508-200808

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010200508-200808

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020200508-200808

main35149-21010200508-200808

35159GASKET, BRAKE DRUM

main35159-21010200508-200808

main35159-52010200508-200808

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010200508-200808

main35165-52030200508-200808

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049200508-200808

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010200508-200808

main35168-52020200508-200808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173200508-201107

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011200508-200808

main35394-48010200508-200808

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030200508-201107

main35519-41010200508-201107

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

91611B0825

main91611-B0825

9167180616

main91671-80616

9613251000

main96132-51000

44 parts on this diagram · 3 diagrams in section
