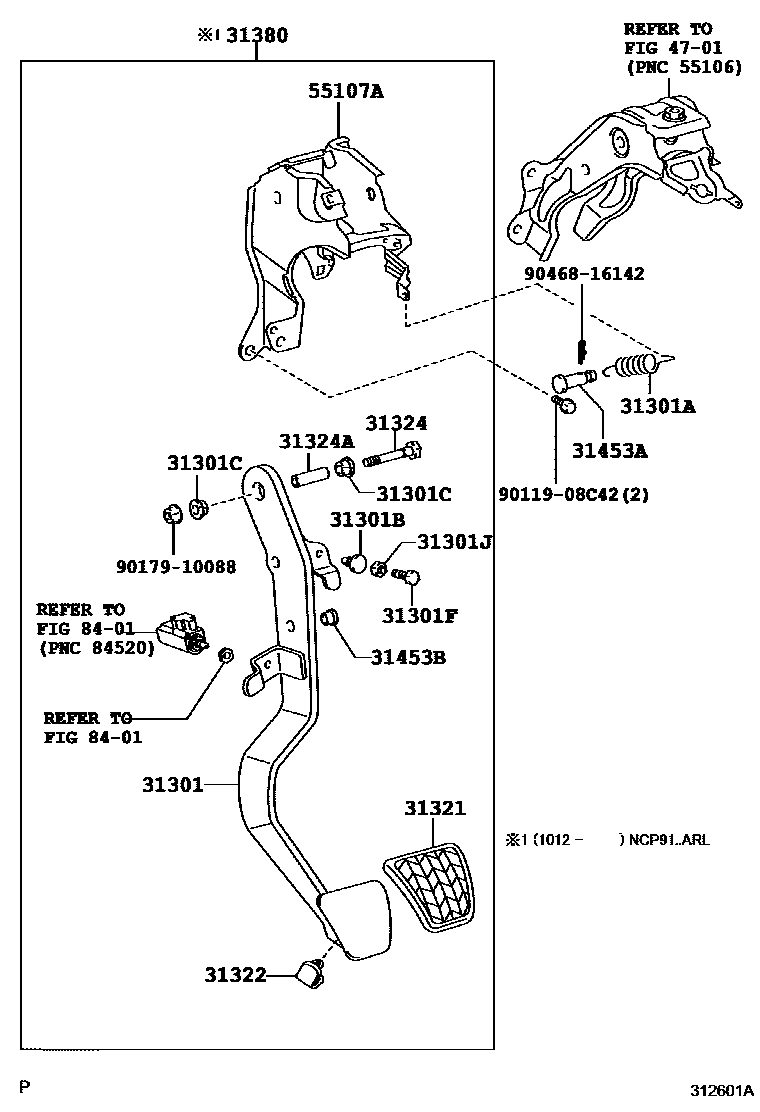

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31322STOPPER, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31380SUPPORT ASSY, PEDAL
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=31.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
4701BRAKE PEDAL & BRACKET
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
8401SWITCH & RELAY & COMPUTER
9011908C42
main90119-08C42
9017910088
main90179-10088
9046816142
main90468-16142
19 parts on this diagram · 4 diagrams in section
