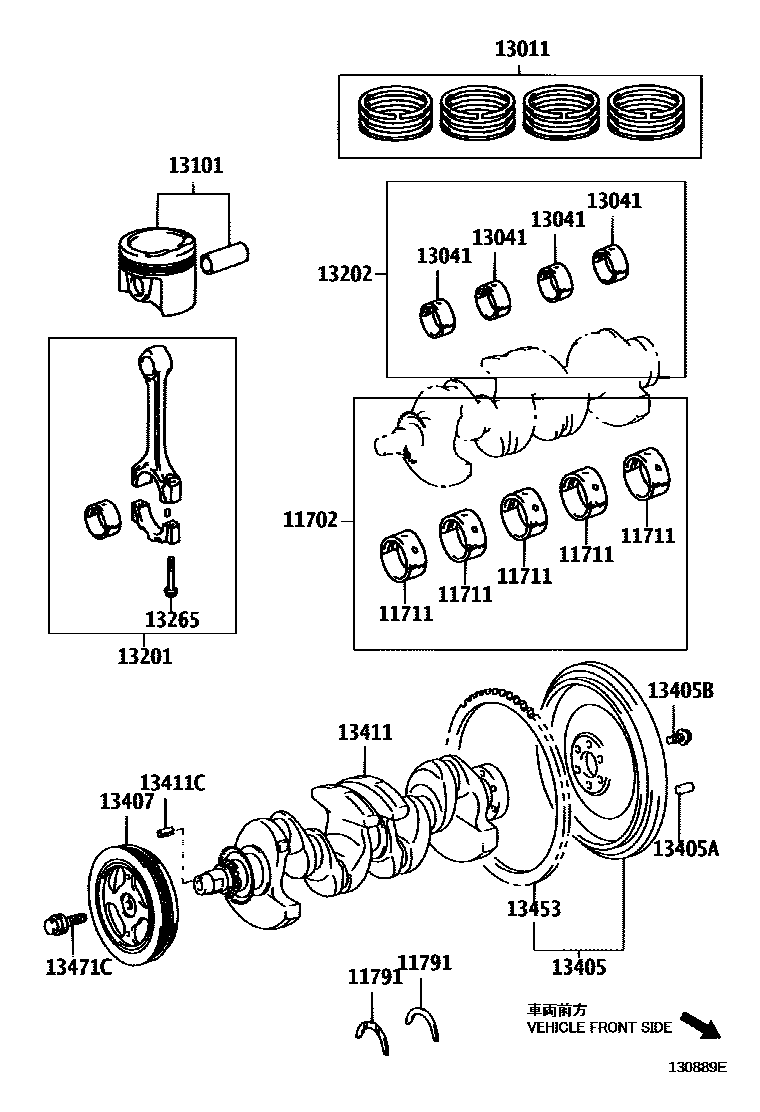

CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-21031i1NZFE,2NZFE..NCP9#200808-201107

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-21031-01×5i1NZFE,2NZFE..NCP9#200508-200808

MARK1,REFER REPAIR MANUAL

main11701-21031-02×5i1NZFE,2NZFE..NCP9#200808-201107

MARK2,REFER REPAIR MANUAL

main11701-21031-03×5i1NZFE,2NZFE..NCP9#200508-200808

MARK3,REFER REPAIR MANUAL

main11701-21031-04×5i1NZFE,2NZFE..NCP9#200508-200808

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-37010×2i1NZFE,2NZFE..NCP9#200508-200808

STD

main11792-22020×2i1NZFE,2NZFE..NCP9#200808-201108

O/S 0.125

main11793-22020×2i1NZFE,2NZFE..NCP9#200508-200808

O/S 0.25

13011RING SET, PISTON

main13011-21041i1NZFE..NCP91200508-200808

STD

main13011-21050i2NZFE..NCP90200808-201107

STD

main13011-21060i2NZFE..NCP90..LHD..5F..GEN200808-201107

STD,EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

13041BEARING, CONNECTING ROD

main13041-21022-01×4i1NZFE,2NZFE..NCP9#200508-200808

MARK1,REFER REPAIR MANUAL

main13041-21022-02×4i1NZFE,2NZFE..NCP9#200508-200808

MARK2,REFER REPAIR MANUAL

main13041-21022-03×4i1NZFE,2NZFE..NCP9#200508-200808

MARK3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-21070×4i1NZFE..NCP91200508-200808

STD

main13101-21080×4i2NZFE..NCP90200508-200808

STD

main13101-21050×4i2NZFE..NCP90..LHD..5F..GEN200808-201107

STD,EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

13201ROD SUB-ASSY, CONNECTING

main13201-29715×4i2NZFE..NCP90200508-200808

main13201-29735×4i1NZFE..NCP91200808-201107

13202BEARING SET, CONNECTING ROD

main13204-21022i1NZFE,2NZFE..NCP9#200508-200808

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020×8i1NZFE,2NZFE..NCP9#200508-200808

13405FLYWHEEL SUB-ASSY

main13405-21020i2NZFE..NCP90..5F200508-200808

main13405-21030i1NZFE..NCP91..5F200508-200808

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i1NZFE,2NZFE..NCP9#..5F200508-200808

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01024×6i1NZFE,2NZFE..NCP9#..5F200508-200808

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21031i1NZFE,2NZFE..NCP9#200508-200808

13411CRANKSHAFT

main13401-21020i1NZFE..NCP91200808-201107

main13401-21030i2NZFE..NCP90200808-201107

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i1NZFE,2NZFE..NCP9#200508-200808

13453GEAR, FLYWHEEL RING

main13453-10010i1NZFE,2NZFE..NCP9#..5F200508-200808

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZFE,2NZFE..NCP9#200508-200808

17 parts on this diagram · 1 diagram in section
