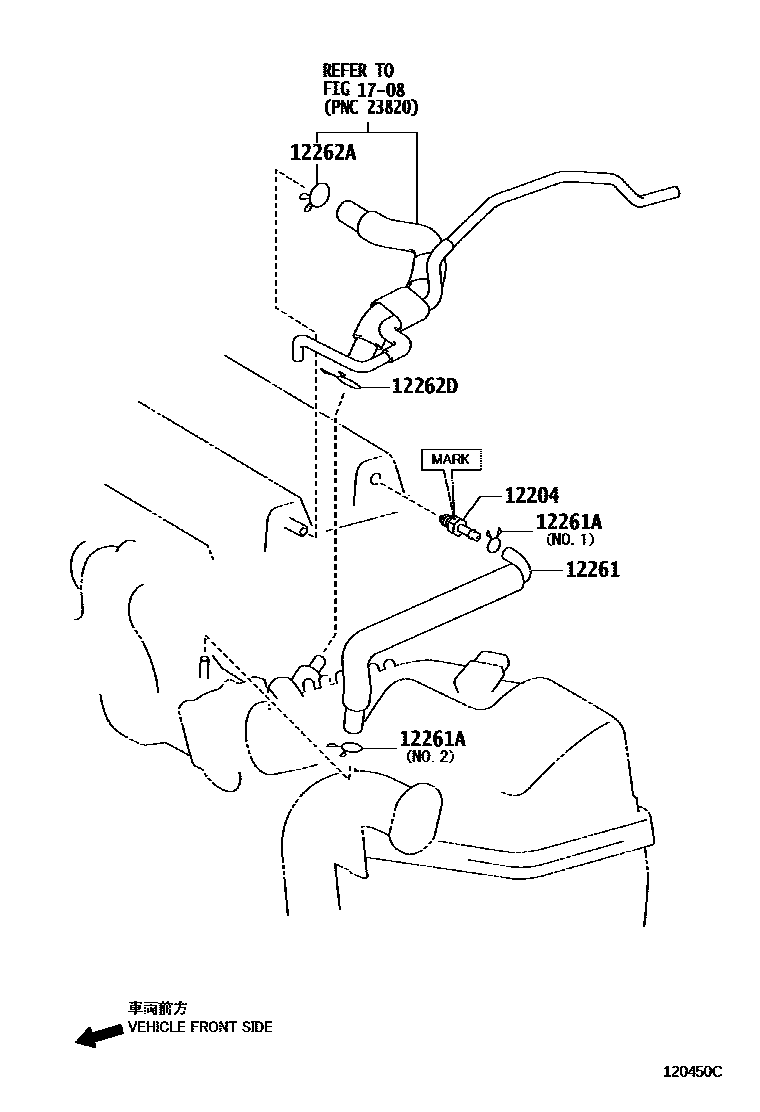

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-21011i1NZFE,2NZFE..NCP9#200508-200806

MARK 12204-21011

main12204-21012i1NZFE,2NZFE..NCP9#200806-200808

MARK 12204-21012

12261HOSE, VENTILATION

main12261-21030i1NZFE,2NZFE..NCP9#200808-201107

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i1NZFE,2NZFE..NCP9#200908-201107

NO.2

main90467-15120i1NZFE,2NZFE..NCP9#200508-200808

NO.1

main90467-24038i1NZFE,2NZFE..NCP9#200808-200908

NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21152i1NZFE,2NZFE..NCP9#200508-200808

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1NZFE,2NZFE..NCP9#200508-200808

1708VACUUM PIPING

→ Go to FIG 17-08

6 parts on this diagram · 1 diagram in section
