ENGINE OVERHAUL GASKET KIT

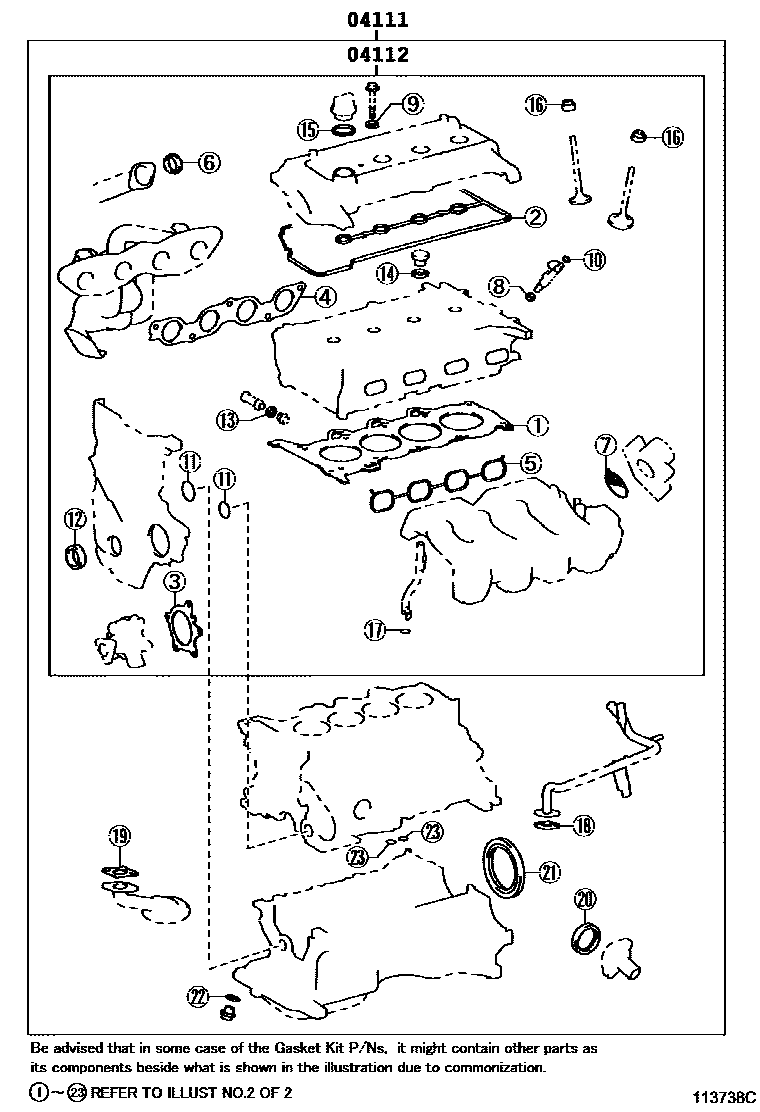

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21230i200508-200612

main04111-21231i200612-200808

main04111-21232i200811-201011

main04111-21233i201011-201108

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21230i200508-200612

main04112-21231i200612-200808

main04112-21232i201011-201108

2 parts on this diagram · 2 diagrams in section
