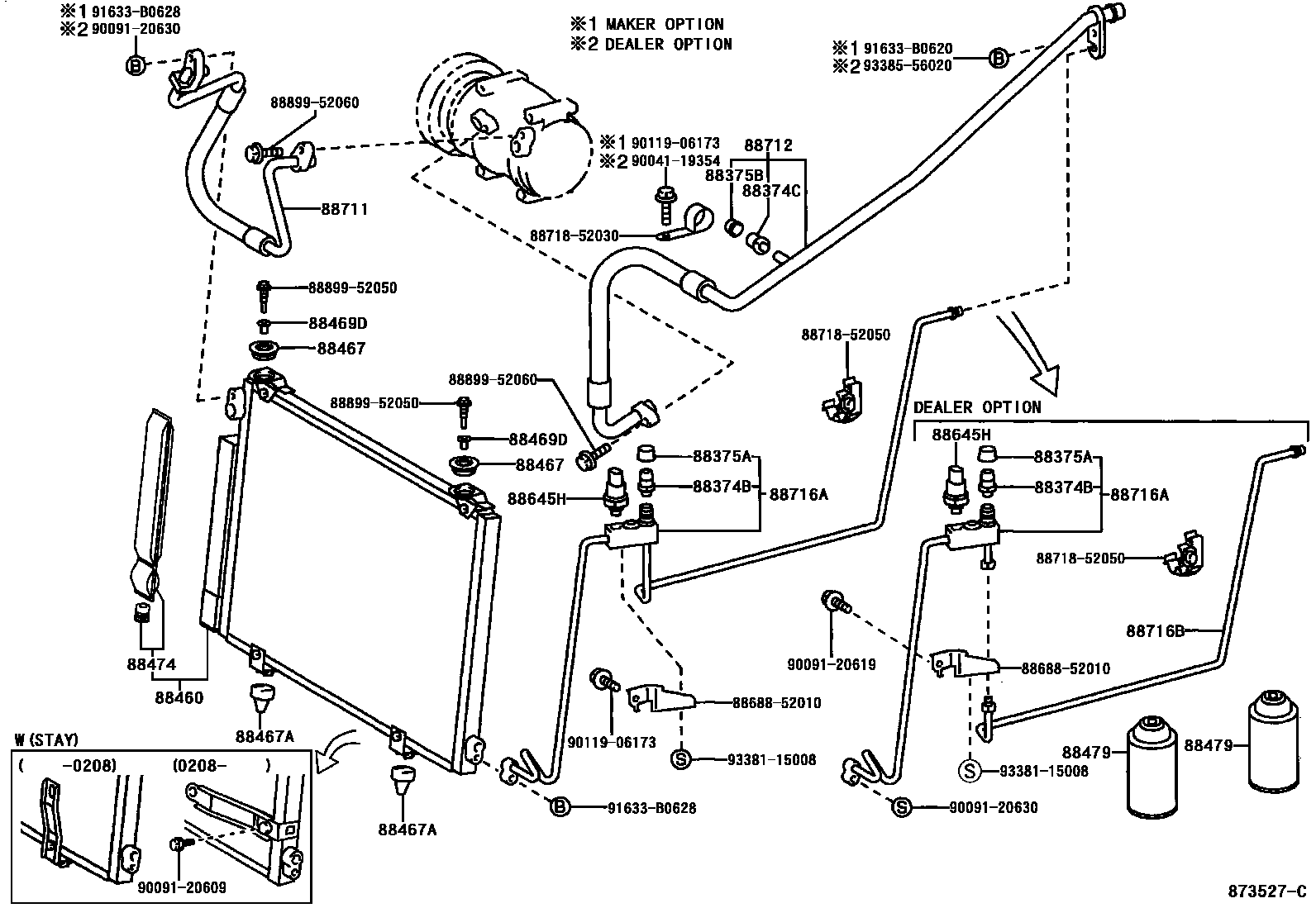

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP1#,SCP10199903-200212

main88374-33070iNCP1#200208-200212

W(MANUAL AIR CONDITIONER)

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP1#,SCP10199903-200212

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iNCP1#,SCP10199903-200212

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNCP1#,SCP10199903-200212

88460CONDENSER ASSY, COOLER

main88450-52161iNCP1#,SCP10..RHD200303-200508

MAKER OPTION

main88450-52170iNCP10..LHD200212-200508

main88450-52180iNCP1#,SCP10..RHD200212-200303

MAKER OPTION

main88450-52181iNCP10..RHD..GEN200212-200308

main88460-52010iNCP1#,SCP10..RHD199903-200212

main88460-52020iNCP10..LHD199908-200212

main88460-52050iNCP1#,SCP10..RHD199912-200208

W(STAY)

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iNCP1#..RHD200212

main88467-52010×2iNCP1#,SCP10..RHD; NCP10..LHD200208-200212

DEALER OPTION

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-52020×2iNCP10..LHD200212

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iNCP1#,SCP10199903-200212

88474DRYER, COOLER

main88474-17010iNCP1#..RHD; NCP10..LHD200212

MAKER OPTION

main88474-47010iNCP1#,SCP10199903-200212

DEALER OPTION

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02007iNCP10,SCP10..GEN199903-200212

250G

main90986-02008iNCP10..GEN200212-200508

200G

88645HSWITCH, PRESSURE NO.1

main88645-60030iNCP1#,SCP10199903-200212

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52010iSCP10199903-200212

main88711-52020iNCP10200008-200103

DEALER OPTION

main88711-52021iNCP1#200008-200212

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-52060iNCP10..LHD200212-200508

main88712-52010iSCP10199903-200212

MAKER OPTION

main88712-52020iSCP10199903-200212

DEALER OPTION

main88712-52030iNCP1#..RHD199908-200212

main88712-52050iNCP10..LHD199908-200212

DEALER OPTION

main88712-52150iNCP10..LHD200208-200212

MAKER OPTION

main88712-52160iNCP10..RHD..GEN200212-200307

DEALER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-52011iSCP10200212-200508

main88706-52100iNCP10..RHD..GEN200212-200508

main88706-52260iNCP10..LHD200208-200212

MAKER OPTION

main88706-52310iNCP10..LHD200212-200508

main88716-52010iSCP10199903-200212

MAKER OPTION

main88716-52030iNCP10..LHD199908-200208

MAKER OPTION

main88716-52040iNCP1#..RHD199908-200212

MAKER OPTION

main88716-52060iSCP10199903-200212

DEALER OPTION

main88716-52110iNCP1#..RHD199908-200212

DEALER OPTION

main88716-52160iNCP10..LHD199908-200212

DEALER OPTION

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-52050iSCP10199903-200212

main88716-52120iNCP1#..ARL200212-200307

main88716-52140iNCP10..LHD199908-200212

main88716-52360iNCP10..RHD..GEN200308-200508

main88716-52380iNCP10..LHD200212-200508

8868852010BRACKET, COOLER DIAPHRAGM

main88688-52010

8871852030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52030

8871852050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52050

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9004119354

main90041-19354

9009120609

main90091-20609

9009120619

main90091-20619

9009120630

main90091-20630

9011906173

main90119-06173

91633B0620

main91633-B0620

91633B0628

main91633-B0628

9338115008

main93381-15008

9338556020

main93385-56020

29 parts on this diagram · 7 diagrams in section
