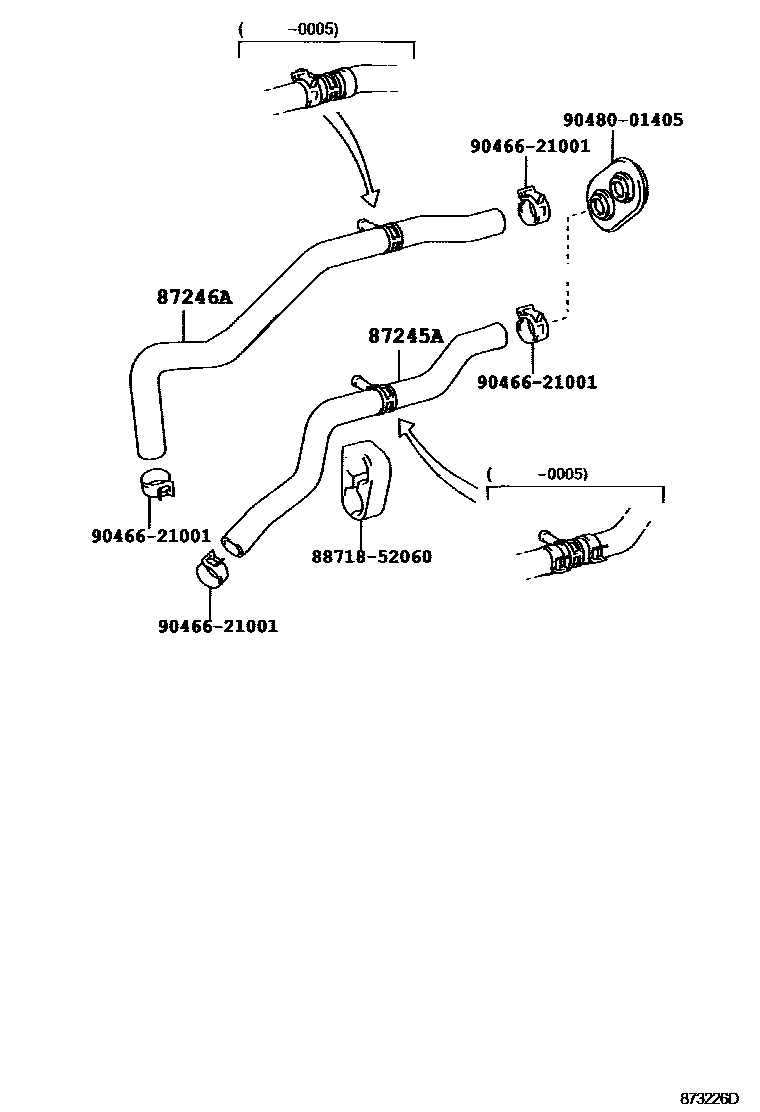

Toyota YARIS/ECHO (3D,5D)112 — HEATING & AIR CONDITIONING - WATER PIPING
87245AHOSE, HEATER WATER, INLET A
87246AHOSE, HEATER WATER, OUTLET A
8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2
9046621001
9048001405
5 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota YARIS/ECHO (3D,5D)112
This section contains 6 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota YARIS/ECHO (3D,5D)112. Key components include: HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, OUTLET A, PIPE, COOLER REFRIGERANT SUCTION, NO.2.
