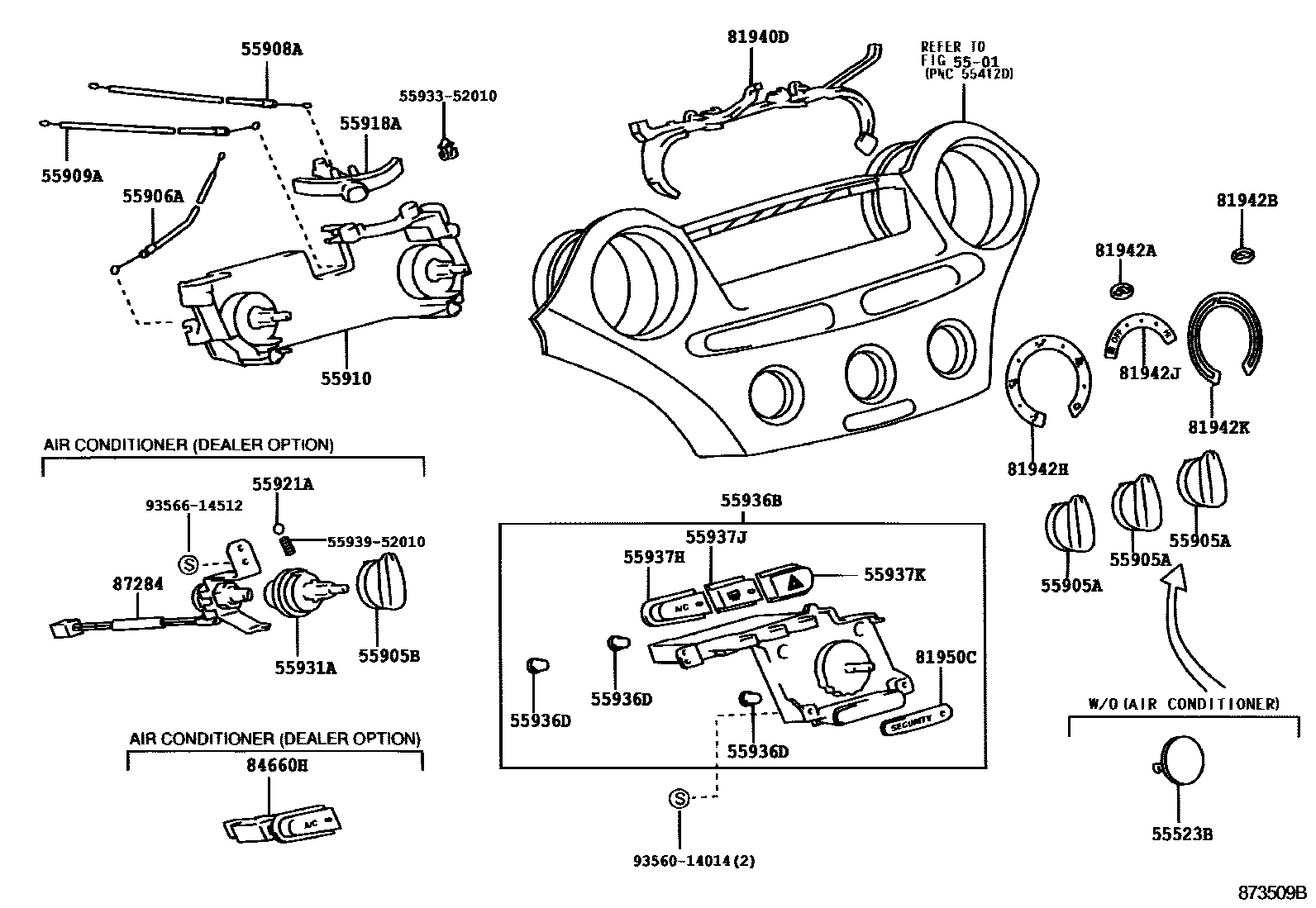

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL--W(HEATER) 0002 1CONTROL--W/O(HEATER) 0003 1CONTROL--W(HEATER) 0004 1CONTROL--W/O(HEATER) 0005 1CONTROL--W(HEATER) 0006 1CONTROL--W/O(HEATER) 0007 1CONTROL--W(HEATER) 0008 1CONTROL--W/O(HEATER) 0009 1AIR DUCT 0010 1AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55523BCOVER, HEATER CONTROL OPENING

main55523-52010-B0iNCP10..GEN199908-200212

SHADOW GRAY,TRIM1#

main55523-52010-H0iNCP10..GEN199908-200212

FRENCH TURQUOISE,TRIM7#

main55523-52030-B0iNCP10..GEN200212-200508

DK.GRAY,TRIM97,98

main55523-52040iNCP10..GEN200212-200508

55905AKNOB, HEATER CONTROL

main55905-52010×3iNCP10,SCP10199903-200212

W(AIR CONDITIONER)

main55905-52030×3iNCP13200101-200212

main55905-52080×2iNCP10; NCP10..GEN; NCP13,SCP10200212-200508

W(AIR CONDITIONER) OR W(HEATER)

main55905-52090×3iNCP10,SCP10; NCP10..GEN200212-200508

SILVER PAINTED; W(AIR CONDITIONER) OR W(HEATER),SILVER PAINTED; W(MANUAL AIR CONDITIONER(DOP))

55905BKNOB, HEATER CONTROL, NO.2

main55905-52010iNCP10..GEN200212-200404

W(AIR CONDITIONER (DEALER OPTION))

main55905-52080iNCP10..GEN200212-200508

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52010iNCP1#,SCP10199903-200212

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52010iNCP10..LHD199908-200212

main55908-52020iNCP1#,SCP10..RHD200212

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52010iNCP10..LHD199908-200212

main55909-52020iNCP1#,SCP10..RHD200212

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-52010iNCP10..LHD200212

W(HEATER)

main55910-52020iNCP10..LHD199908-200212

W(AIR CONDITIONER)

main55910-52030iNCP13200101-200212

main55910-52040iNCP10..RHD..GEN199908-200212

W(AIR CONDITIONER)

main55910-52060iNCP10..LHD200212

main55910-52070iNCP10..RHD..GEN200212

55918ALEVER, AIR INLET DAMPER CONTROL

main55918-52010iNCP1#,SCP10199903-200112

main55918-52060iNCP1#,SCP10200112-200212

main55918-52070iNCP1#,SCP10200212

55921ARETAINER, HEATER CONTROL

main55921-52010iNCP10..GEN199908-200212

55931ASHAFT, HEATER CONTROL LEVER

main55931-52010iNCP10..GEN200212-200508

55936BSWITCH, CENTER CLUSTER MODULE

main84010-52020iNCP10..GEN199908-200212

W(AIR CONDITIONER & REAR WINDOW DEFOGGER)

main84010-52040iNCP10..GEN199908-200212

W(REAR WINDOW DEFOGGER)

main84010-52060iNCP10..GEN199908-200212

W(AIR CONDITIONER)

main84010-52080iNCP10..GEN199908-200212

main84010-52100iNCP13200101-200212

AIR CONDITIONER(MANUAL)

main84010-52120iNCP10199908-200212

W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)

main84010-52130iNCP10..GEN199908-200212

W(AIR CONDITIONER & ENGINE IMMOBILIZER)

main84010-52140iNCP10..GEN199908-200212

W(ENGINE IMMOBILIZER SYSTEM)

main84010-52150iSCP10199903-200212

W(AIR CONDITIONER)

main84010-52170iSCP10199903-200212

main84010-52370iNCP10..GEN200212

main84010-52380iNCP10..GEN200212

W(REAR WINDOW DEFOGGER)

main84010-52390iNCP10..GEN200212

W(AIR CONDITIONER & HEATER)

main84010-52400iNCP10..GEN; SCP10200212

W(AIR CONDITIONER & HEATER & REAR WINDOW DEFOGGER)

main84010-52410iNCP10..GEN200212

W(ENGINE IMMOBILIZER SYSTEM)

main84010-52420iNCP1#..ARL; NCP10..GEN200212

W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)

main84010-52430iNCP10..GEN200212

W(AIR CONDITIONER & HEATER & ENGINE IMMOBILIZER)

main84010-52440iNCP1#200212

W(AIR CONDITIONER)

55936DBLUB, CENTER CLUSTER MODULE SWITCH

main84999-10490iSCP10199903-200212

14V 0.84W

main84999-10530×2iNCP1#,SCP10199903-200112

14V 1.8W

main90010-01047iNCP1#,SCP10..RHD199903-200112

14V,1.4W

55937HKNOB, CENTER CLUSTER MODULE, NO.5

main55937-52010iNCP1#,SCP10199903-200212

W(AIR CONDITIONER)

main55937-52020iNCP1#,SCP10199903-200212

main55937-52260iNCP1#; SCP10200212

W(AIR CONDITIONER & HEATER)

main55937-52300iNCP1#200212

55937JKNOB, CENTER CLUSTER MODULE, NO.6

main55937-52030iNCP10,SCP10199903-200212

W(REAR WINDOW DEFOGGER)

main55937-52050iNCP10..GEN199908-200212

main55937-52290iNCP1#; SCP10200212

W(REAR WINDOW DEFOGGER)

main55937-52310iNCP10..GEN200212

55937KKNOB, CENTER CLUSTER MODULE, NO.7

main55937-52060iNCP1#,SCP10199903-200212

main55937-52270iNCP1#,SCP10200212

81940DLENS ASSY, HEATER CONTROL

main81940-52020iNCP1#,SCP10199903-200212

main81940-52080iNCP1#,SCP10200212

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-52010-B0iNCP10,SCP10199903-200212

SHADOW GRAY,TRIM1#

main81942-52010-B2iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main81942-52010-H0iNCP10,SCP10199903-200212

FRENCH TURQUOISE,TRIM7#

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-52020-B0iNCP10,SCP10199903-200212

SHADOW GRAY,TRIM1#

main81942-52020-B2iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main81942-52020-H0iNCP10,SCP10199903-200212

FRENCH TURQUOISE,TRIM7#

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-52030-B0iSCP10199903-200108

SHADOW GRAY,TRIM1#

main81942-52030-H0iNCP10..RHD199908-200108

W(HEATER),FRENCH TURQUOISE,TRIM7#

main81942-52070-B0iNCP10..GEN199908-200212

SHADOW GRAY,TRIM1#

main81942-52070-H0iNCP10..GEN199908-200212

FRENCH TURQUOISE,TRIM7#

main81942-52080-B0iNCP10,SCP10; NCP13200108-200212

W(HEATER),SHADOW GRAY,TRIM1#; W(HEATER),SHADOW GRAY,TRIM9#

main81942-52080-H0iNCP10..LHD199908-200108

W(HEATER),FRENCH TURQUOISE,TRIM7#

81942JSHEET, HEATER CONTROL NAME, NO.4

main81942-52040-B0iNCP10,SCP10199903-200212

SHADOW GRAY,TRIM1#

main81942-52040-H0iNCP10,SCP10199903-200212

FRENCH TURQUOISE,TRIM7#

81942KSHEET, HEATER CONTROL NAME, NO.5

main81942-52050-B0iNCP13200101-200212

SHADOW GRAY,TRIM9#

main81942-52050-H0iNCP10,SCP10199903-200212

W(HEATER),FRENCH TURQUOISE,TRIM7#

main81942-52060-B0iNCP10..GEN199908-200212

SHADOW GRAY,TRIM1#

main81942-52060-H0iNCP10..GEN199908-200212

FRENCH TURQUOISE,TRIM7#

81950CLENS ASSY, CENTER CLUSTER MODULE INDICATOR

main81950-52010iSCP10199903-200212

main81950-52020iNCP13200101-200212

main81950-52030iNCP10..GEN199908-200212

main81950-52080iNCP1#200212

W(ENGINE IMMOBILIZER SYSTEM)

main81950-52090iNCP10,SCP10..GEN200212

84660HSWITCH ASSY, COOLER CONTROL

main84660-52010iNCP10..RHD..GEN200212-200404

TYPE A:REFER TO ILLUSTRATION

main84660-52020iNCP10..LHD200307-200404

TYPE B

87284RESISTOR SUB-ASSY, VARIABLE

main88032-52010iNCP10..LHD200212-200508

main88032-52020iNCP10..RHD..GEN200212-200508

5593352010GUIDE, LEVER, NO.2

main55933-52010

5593952010ORNAMENT, HEATER CONTROL

main55939-52010

9356014014

main93560-14014

9356614512

main93566-14512

29 parts on this diagram · 10 diagrams in section
