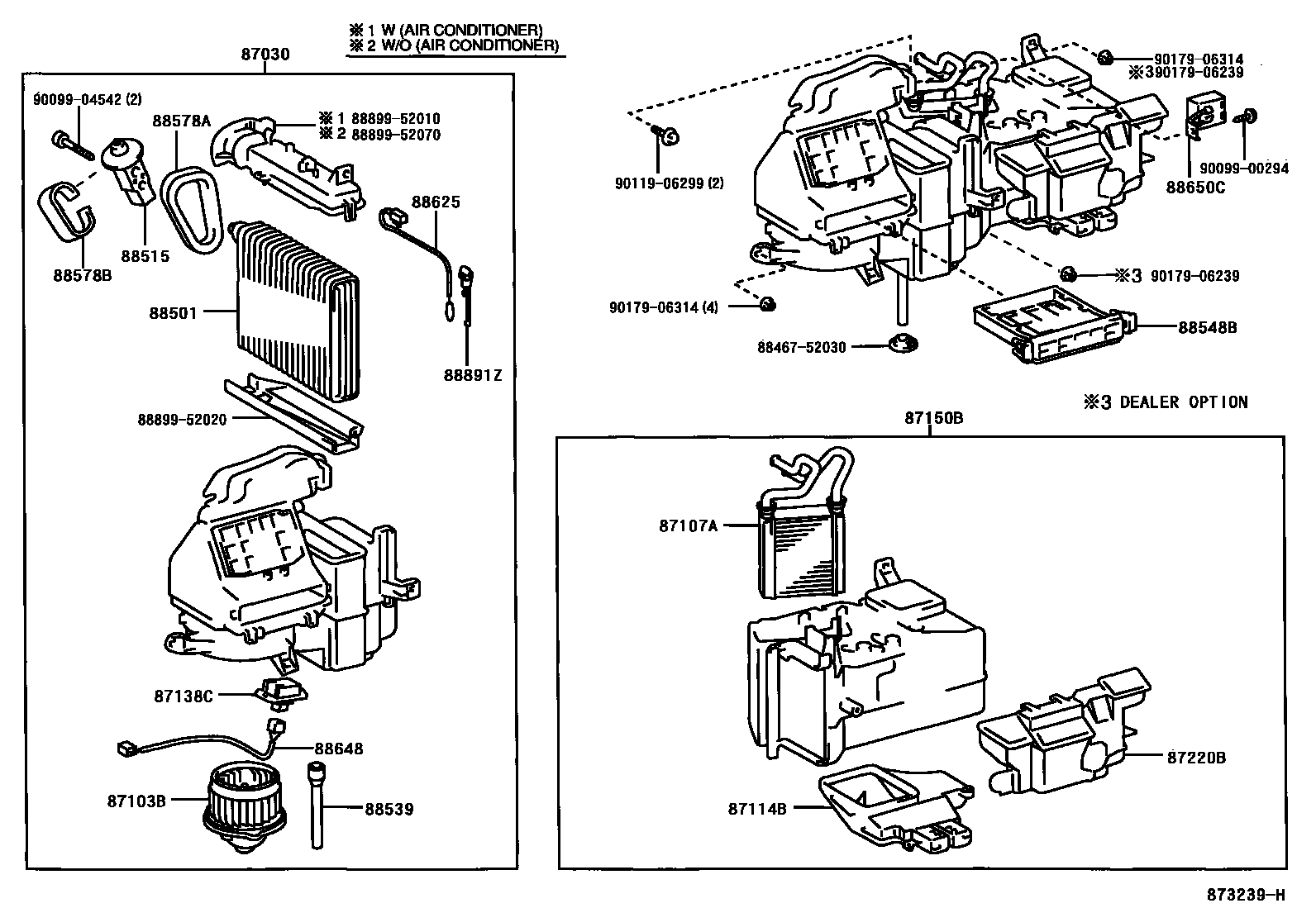

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W(HEATER) 0002 1W(BOOST VENTILATOR) 0003 1W(HEATER) 0004 1W(BOOST VENTILATOR) 0005 1W(HEATER) 0006 1W(BOOST VENTILATOR) 0007 1W(HEATER) 0008 1W(BOOST VENTILATOR) 0009 1O-RING

87030BLOWER ASSY, AIR CONDITIONER

main87030-52010iNCP1#,SCP10..RHD199903-200212

W(AIR CONDITIONER)

main87030-52011iNCP1#,SCP10..RHD200303

W(AIR CONDITIONER)

main87030-52030iNCP1#..RHD200212

main87030-52170iNCP10..LHD199908-200209

W(AIR CONDITIONER)

main87030-52171iNCP10..LHD200212-200303

W(AIR CONDITIONER)

main87030-52172iNCP10..LHD200303

W(AIR CONDITIONER)

main87030-52180iNCP10..LHD200212

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52010iSCP10200212-200303

main87103-52050iNCP1#,SCP10..RHD200303-200506

W(MANUAL AIR CONDITIONER)

main87103-52060iNCP10..LHD200212-200508

main87103-52110iNCP1#,SCP10..RHD200507-200508

W(MANUAL AIR CONDITIONER)

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52010iNCP1#,SCP10..RHD199903-200212

main87107-52020iNCP10..LHD199908-200212

87114BCOVER, HEATER

main87114-52010iNCP1#,SCP10..RHD199903-200212

main87114-52040iNCP10..LHD200212-200508

87138CRESISTOR, BLOWER

main87138-52010iNCP1#,SCP10200212-200508

87150BRADIATOR ASSY, HEATER

main87150-52010iNCP1#,SCP10..RHD200212-200508

main87150-52070iNCP10..LHD199908-200212

main87150-52071iNCP10..LHD200311-200508

87220BDUCT ASSY, AIR

main87220-52010iNCP10,SCP10..RHD199903-200002

main87220-52020iNCP10..LHD200208-200212

main87220-52040iNCP10..RHD..GEN200212-200508

W(BOOST VENTILATOR)

main87220-52050iNCP10..LHD200212-200508

W(BOOST VENTILATOR)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52010iSCP10200212-200303

main88501-52030iNCP1#..ARL199908-200212

DEALER OPTION

main88501-52040iNCP10..LHD199908-200212

main88501-52041iNCP10..LHD200212-200303

main88501-52070iNCP1#,SCP10..RHD200303-200508

main88501-52080iNCP10..LHD200303-200508

88515VALVE, COOLER EXPANSION

main88515-52010iNCP1#..RHD200212-200402

DEALER OPTION

main88515-52020iNCP10,SCP10..RHD..GEN200211-200212

main88515-52040iNCP1#,SCP10..RHD200312-200508

main88515-52050iNCP10..RHD..GEN200405-200508

DEALER OPTION

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-52010iNCP1#,SCP10..RHD; NCP10..LHD200212

88548BCASE, AIR FILTER

main88508-52040iNCP10..GEN; SCP10200405

MANUAL AIR CONDITIONER

main88548-52010iNCP1#,SCP10199903-200212

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-52010iNCP10..RHD..GEN200212-200508

main88578-52020iNCP10..LHD200212-200508

88578BPACKING, COOLING UNIT, NO.1

main88578-52030iNCP10..LHD200212-200307

88625THERMISTOR, COOLER, NO.1

main88625-52020iNCP1#..RHD; NCP10..LHD200212-200307

DEALER OPTION

main88625-52070iNCP1#,SCP10..RHD200211-200212

main88625-52090iNCP1#,SCP10..RHD200303-200508

main88625-52100iNCP10..LHD200308-200405

88648WIRING, COOLER, NO.1

main88648-52020iNCP1#..RHD; NCP10..LHD200212-200508

W(FRONT AIR CONDITIONER---MANUAL DIAL TYPE)

main88648-52240iNCP1#,SCP10..RHD200507-200508

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-52050iNCP10..GEN199908-200212

W(BOOST VENTILATOR)

main88650-52110iNCP1#,SCP10200112-200212

88891ZBRACKET, COOLER THERMISTOR

main88891-20240iNCP10..RHD..5D..GEN200212-200303

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8889952010COVER, EVAPORATOR

main88899-52010

8889952020COVER, EVAPORATOR

main88899-52020

8889952070COVER, EVAPORATOR

main88899-52070

9009900294

main90099-00294

9009904542

main90099-04542

9011906299

main90119-06299

9017906239

main90179-06239

9017906314

main90179-06314

26 parts on this diagram · 9 diagrams in section
