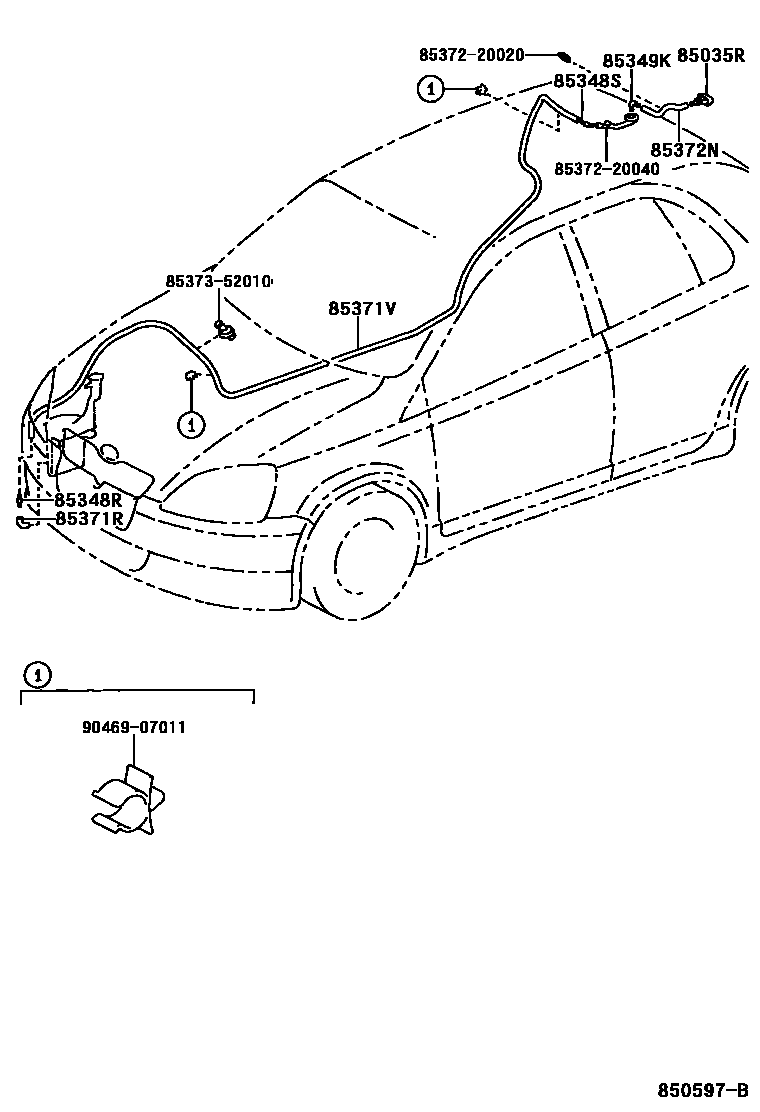

REAR WASHER

0001 1 0002 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52010iNCP1#,SCP10199903-200212

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP1#,SCP10199903-200212

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNCP1#,SCP10199903-200212

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNCP1#,SCP10199903-200212

main85377-52210iNCP1#,SCP10200503-200508

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP1#,SCP10199903-200212

L=1450(*H,L=50)

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-59247iNCP1#,SCP10199903-200212

L=4640

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNCP10,SCP10199903-199912

L=1450(*H,L=190)

main90099-33299iNCP1#,SCP10199912-200212

L=1000(*H,L=190)

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010

9046907011

main90469-07011

11 parts on this diagram · 2 diagrams in section
