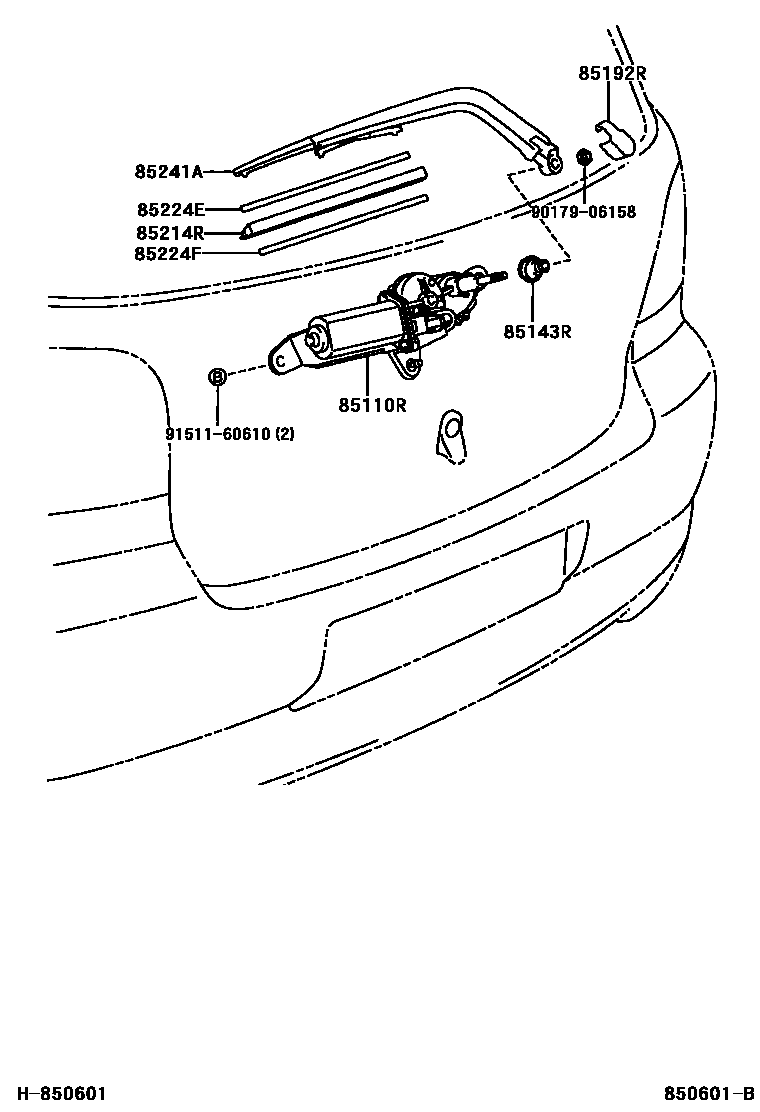

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-52010iNCP1#,SCP10199903-200212

85143RGROMMET, REAR WIPER MOTOR

main85143-52010iNCP1#,SCP10199903-200212

85192RCOVER, REAR WIPER ARM

main85244-52010iNCP1#,SCP10199903-200212

85214RRUBBER, REAR WIPER

main85214-52020iNCP1#,SCP10199903-200212

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-52020iNCP1#,SCP10199903-200212

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-52020iNCP1#,SCP10199903-200212

85241AARM, REAR WIPER

main85241-52010iNCP1#,SCP10199903-200212

9017906158

main90179-06158

9151160610

main91511-60610

9 parts on this diagram · 2 diagrams in section
