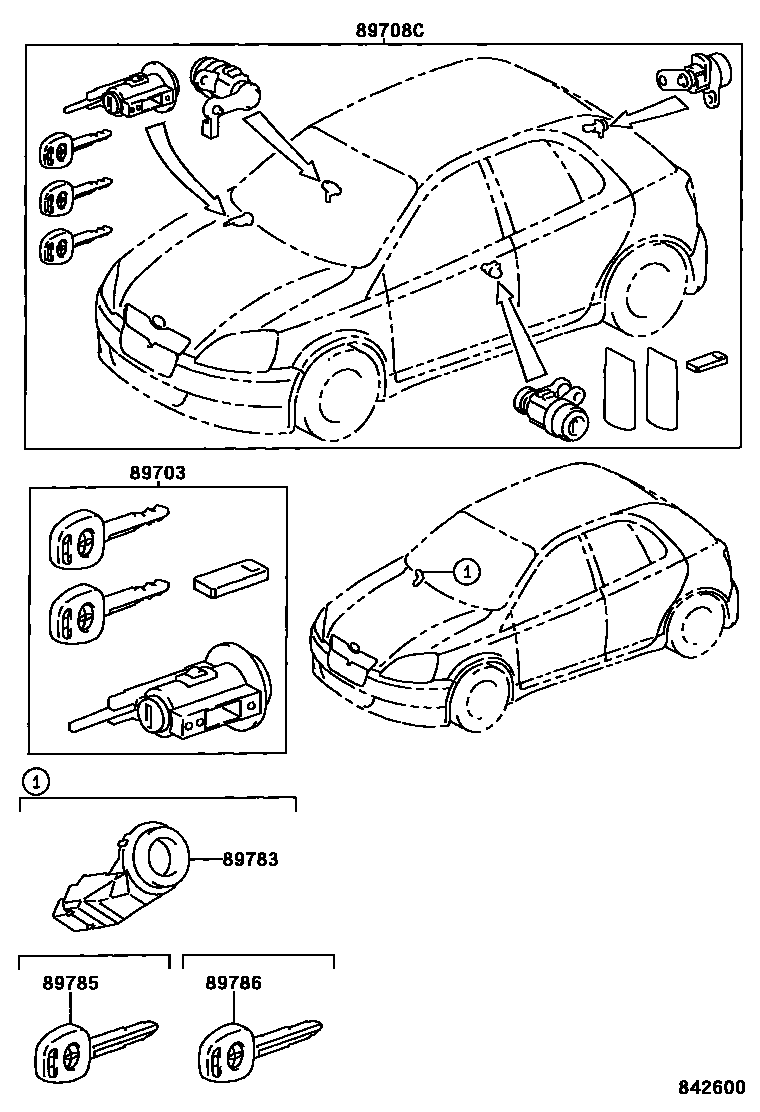

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1W(KEY LESS ENTRY)

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-48040iNCP1#200204-200212

main89703-52010iNCP1#199908-200204

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main69005-52870iNCP1#200212

main89708-52010iNCP10199908-200001

main89708-52011iNCP1#200001-200204

main89708-52050iNCP1#200204-200212

89783AMPLIFIER, TRANSPONDER KEY

main89783-52010iNCP1#200212

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-17020iNCP1#199908-200204

main89785-26020iNCP1#200204-200212

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-17020iNCP1#199908-200204

main89786-60050iNCP1#200204-200212

5 parts on this diagram · 3 diagrams in section
