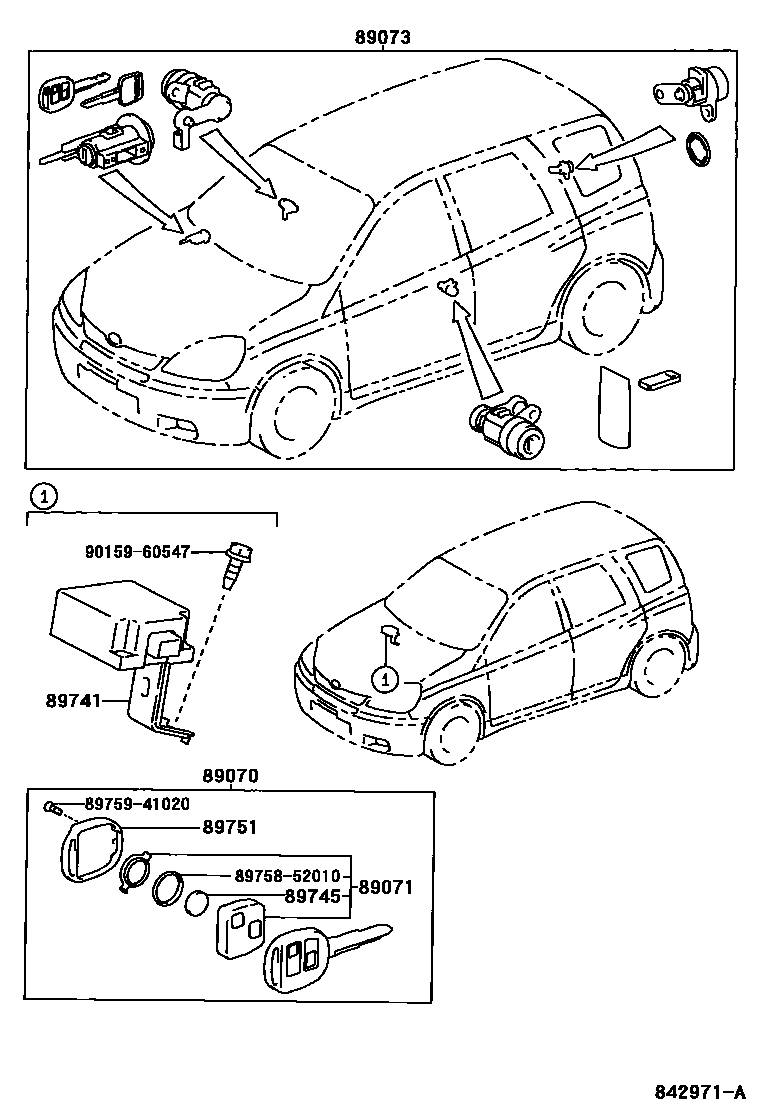

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1W(ENGINE IMMOBILIZER SYSTEM) 0004 1W(ENGINE IMMOBILIZER SYSTEM)

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-47101iNCP1#..ARL200204-200212

main89070-47160iNCP10..GEN200212-200508

W(ENGINE IMMOBILIZER SYSTEM)

main89070-52080iNCP10..ARL199908-200012

main89070-52081iNCP1#..ARL200012-200204

main89070-52110iNCP10..GEN199908-200204

W(ENGINE IMMOBILIZER SYSTEM)

main89070-52120iNCP10..GEN199908-200204

main89070-52340iNCP10..GEN200204-200212

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52020iNCP10..ARL199908-200101

main89071-52021iNCP1#..ARL200101-200212

main89071-52030iNCP10..GEN200212-200508

W(ENGINE IMMOBILIZER SYSTEM)

main89071-52040iNCP10..GEN200212-200508

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-52860iNCP10..GEN200212

main69005-52880iNCP1#200212

W(ENGINE IMMOBILIZER SYSTEM)

main89073-52060iNCP10..ARL199908-200001

main89073-52061iNCP10..ARL200001-200012

main89073-52062iNCP1#..ARL200012-200204

main89073-52090iNCP10..GEN199908-200001

W(ENGINE IMMOBILIZER SYSTEM)

main89073-52091iNCP10..GEN200001-200204

W(ENGINE IMMOBILIZER SYSTEM)

main89073-52100iNCP10..GEN199908-200001

main89073-52101iNCP10..GEN200001-200204

main89073-52460iNCP1#..ARL200204-200212

main89073-52470iNCP10..GEN200204-200212

W(ENGINE IMMOBILIZER SYSTEM)

main89073-52480iNCP10..GEN200204-200212

89741RECEIVER, DOOR CONTROL

main89741-52020iNCP10..ARL199908-200101

main89741-52021iNCP1#..ARL200101-200212

main89741-52040iNCP10..GEN199908-200212

89745BATTERY, TRANSMITTER

main89745-52010iNCP1#199908-200212

89751COVER, TRANSMITTER HOUSING

main89751-20010iNCP1#..ARL200204-200212

main89751-20020iNCP10..GEN200212-200508

W(ENGINE IMMOBILIZER SYSTEM)

main89751-52020iNCP10..GEN200204-200212

8975852010PACKING, DOOR CONTROL TRANSMITTER

main89758-52010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9015960547

main90159-60547

9 parts on this diagram · 4 diagrams in section
