EPC Data

WIRING & CLAMP

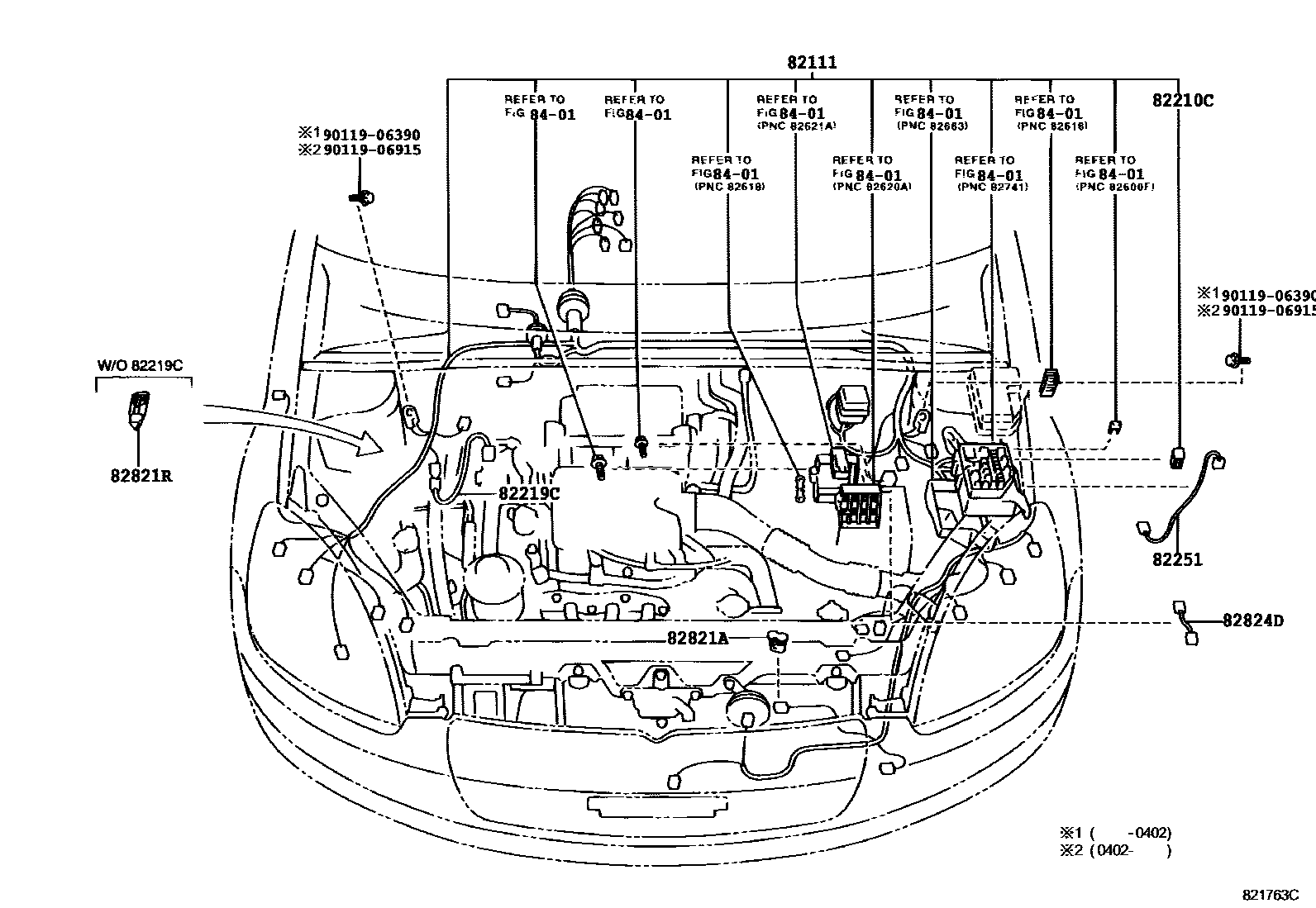

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-52010i199903-199912
W(ABS)
main82111-52011i199912-200101
W(ABS)
main82111-52030i199903-199912
W/O(ABS)
main82111-52031i199912-200101
main82111-52032i200101-200212
main82111-52240i199908-199912
main82111-52241i199912-200101
main82111-52242i200101-200212
main82111-52250i199908-199912
W(ABS)
main82111-52251i199912-200101
W(ABS)
main82111-52252i200101-200212
W(ABS)
main82111-52260i199908-199912
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52261i199912-200101
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52262i200101-200212
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52270i199908-199912
W(ABS & ENGINE IMMOBILIZER)
main82111-52271i199912-200101
W(ABS & ENGINE IMMOBILIZER)
main82111-52272i200101-200212
W(ABS & ENGINE IMMOBILIZER)
main82111-52280i199908-199912
main82111-52281i199912-200101
main82111-52282i200101-200208
main82111-52283i200208-200212
main82111-52290i199908-199912
W(ABS)
main82111-52291i199912-200101
W(ABS)
main82111-52292i200101-200208
W(ABS)
main82111-52293i200208-200212
W(ABS)
main82111-52300i199908-199912
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52301i199912-200101
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52302i200101-200208
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52303i200208-200212
W(ENGINE IMMOBILIZER SYSTEM)
main82111-52310i199908-199912
W(ABS & ENGINE IMMOBILIZER)
main82111-52311i199912-200101
W(ABS & ENGINE IMMOBILIZER); W(ABS)
main82111-52312i200101-200208
W(ABS & ENGINE IMMOBILIZER); W(ABS)
main82111-52313i200208-200212
W(ABS & ENGINE IMMOBILIZER); W(ABS)
main82111-52880i200101-200103
main82111-52881i200103-200208
main82111-52882i200208-200212
main82111-5D280i200212-200508
main82111-5D290i200212-200508
W(VSC)
main82111-5D470i200212-200508
main82111-5D480i200212-200508
W(ABS)
main82111-5D490i200212-200508
W(ENGINE IMMOBILIZER SYSTEM)
main82111-5D500i200212-200508
W(ABS & ENGINE IMMOBILIZER)
main82111-5D510i200212-200508
main82111-5D520i200212-200508
W(ABS)
main82111-5D530i200212-200508
W(ENGINE IMMOBILIZER SYSTEM)
main82111-5D540i200212-200508
W(ABS & ENGINE IMMOBILIZER); W(ABS)
main82111-5D550i200212-200508
main82111-5D560i200212-200508
W(ABS)
main82115-52010i200101-200208
W(ABS)
main82115-52011i200208-200212
W(ABS)
main82115-52040i200101-200212
W(ABS)
82210CFUSIBLE LINK
main90982-08283i199903-200212
30A,TERM.:FEMALE,PNK
main90982-08284i200212-200508
40A,TERM.:FEMALE,GRN
main90982-08285i200212-200508
50A,FEMALE,RED,32VDC
82219CWIRE, SENSOR
main82219-52020i199908-200212
82251WIRE, SPEED SENSOR
main82251-52010i199903-200212
82821ACOVER, CONNECTOR
main82821-10050i199903-200212
82821RCOVER, CONNECTOR
main82821-22120i199908-200208
82824CONNECTOR, WIRING HARNESS
main82824-52100i199903-200212
82824DCONNECTOR, WIRING HARNESS
main82824-52120i199903-200212
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906390
main90119-06390
9011906915
main90119-06915

11 parts on this diagram · 12 diagrams in section
