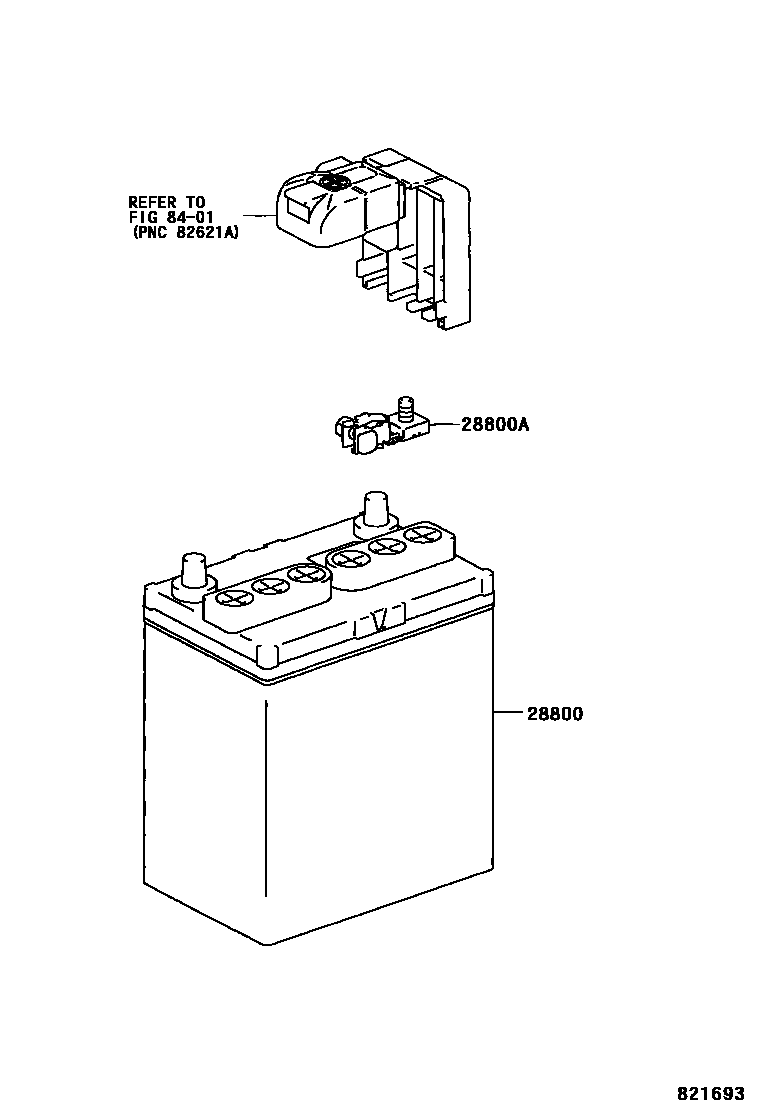

BATTERY & BATTERY CABLE

28800BATTERY

main28800-21060i1SZFE..SCP10200212-200508

34B19R,FURUKAWA

main28800-21070i1NZFE,2NZFE..NCP1#..MTM199908-200212

34B19R(S)

main28800-21100i2NZFE..NCP10..GEN;2NZFE..NCP10..ATM..ARL199908-200212

46B24R(S),MATSUSHITA

main28800-21140i1SZFE..SCP10199912-200003

34B19R

main28800-24040i1SZFE..SCP10200003-200212

34B19R

main28800-74231i2NZFE..NCP10..GEN;2NZFE..NCP10..ATM..ARL199908-200212

46B24R(S),FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05052i1SZFE..SCP10199903-200212

main90982-05053i1NZFE,2NZFE..NCP1#200212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section
