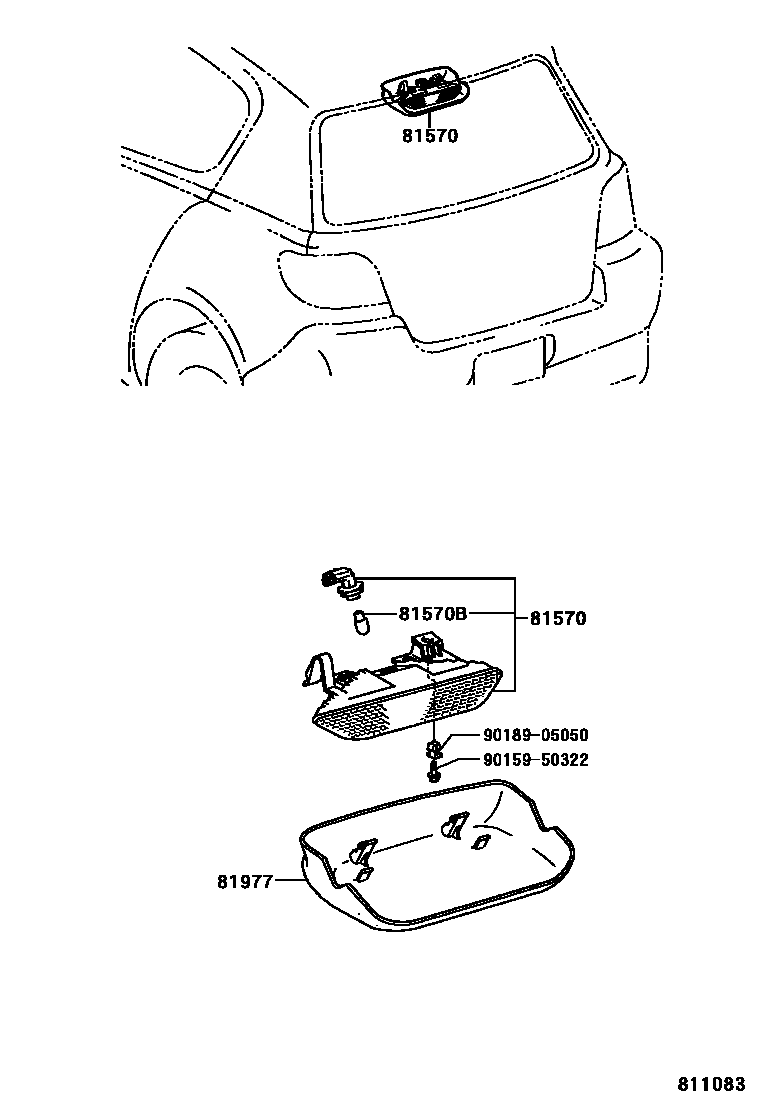

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-52010iNCP1#,SCP10199903-200212

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iNCP1#,SCP10199903-200212

12V 16W

81977COVER, CENTER STOP LAMP

main81977-52010-B0iNCP10,SCP10199903-200101

SHADOW GRAY,TRIM1#,7#

main81977-52010-B1iNCP10,SCP10; NCP13200101-200212

DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#

9015950322

main90159-50322

9018905050

main90189-05050

5 parts on this diagram · 1 diagram in section
