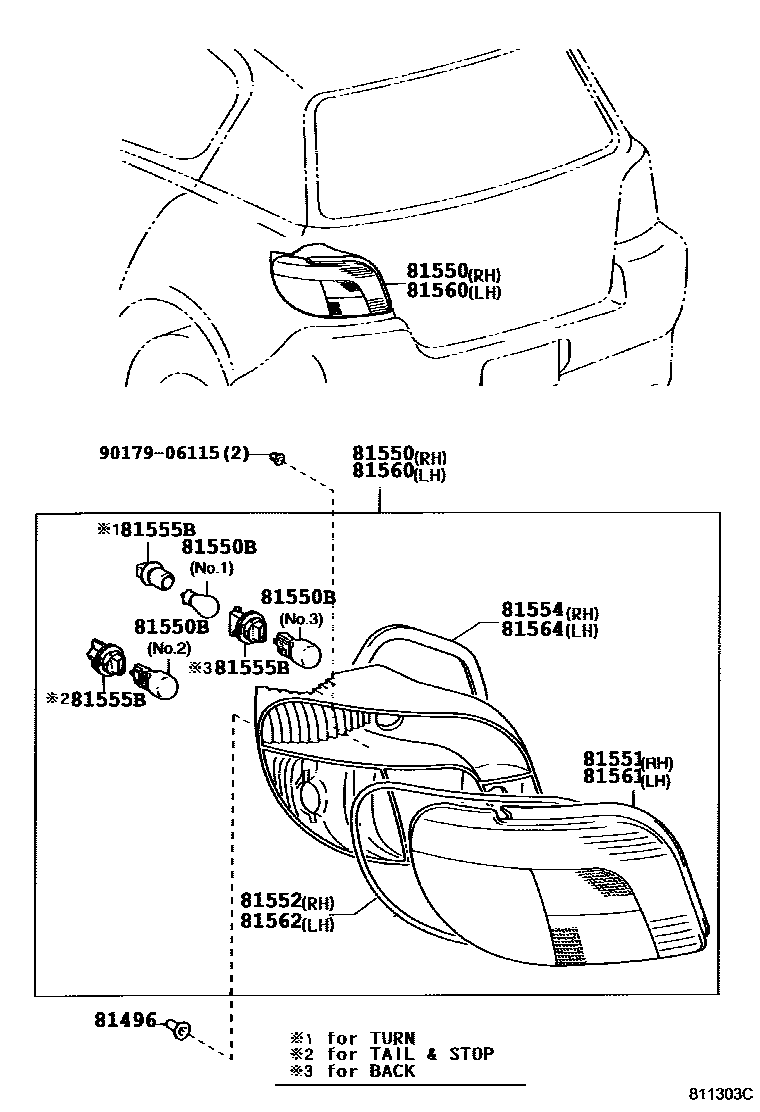

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-52010×2iNCP1#,SCP10199903-200212

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52040iSCP10199903-199908

main81550-52130iNCP10,SCP10..GEN199908-200101

main81550-52180iNCP13200101-200212

main81550-52280iNCP1#,SCP10200212-200508

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11048×2iNCP1#,SCP10200106-200212

12V 21/5W,NO.2

main90981-13043×4iNCP1#,SCP10200212

12V 21W,NO.1,3

main90981-13044×2iNCP1#,SCP10199903-200106

12V 21/5W,NO.2

main90981-15009×2iNCP1#,SCP10199903-200212

12V 21W,AMBER,NO.1

81551LENS, REAR COMBINATION LAMP, RH

main81551-52040iNCP10..ARL199908-200101

main81551-52130iNCP10,SCP10..GEN199908-200101

main81551-52180iNCP13200101-200212

main81551-52280iNCP1#,SCP10200212

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-52020iNCP1#,SCP10199903-200212

main81552-52280iNCP1#,SCP10200212

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52020iNCP1#,SCP10199903-200212

main81554-52280iNCP1#,SCP10200212

81555BSOCKET PLUG, NO.1

main90075-60015×2iNCP10,SCP10199903-200212

FOR BACK OR REAR FOG

main90075-60017×2iNCP1#,SCP10199903-200212

TAIL & STOP

main90075-60019×2iNCP1#,SCP10199903-200212

TURN SIGNAL

main90075-60052×2iNCP1#,SCP10200212

TURN SIGNAL

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52030iSCP10199903-199908

main81560-52120iNCP10,SCP10..GEN199908-200101

main81560-52160iNCP13200101-200212

main81560-52260iNCP1#,SCP10200212-200508

81561LENS, REAR COMBINATION LAMP, LH

main81561-52030iSCP10199903-199908

main81561-52120iNCP10,SCP10..GEN199908-200101

main81561-52160iNCP13200101-200212

main81561-52260iNCP1#,SCP10200212

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-52020iNCP1#,SCP10199903-200212

main81552-52280iNCP1#,SCP10200212

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52020iNCP1#,SCP10199903-200212

main81564-52260iNCP1#,SCP10200212

9017906115

main90179-06115

12 parts on this diagram · 1 diagram in section
