EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

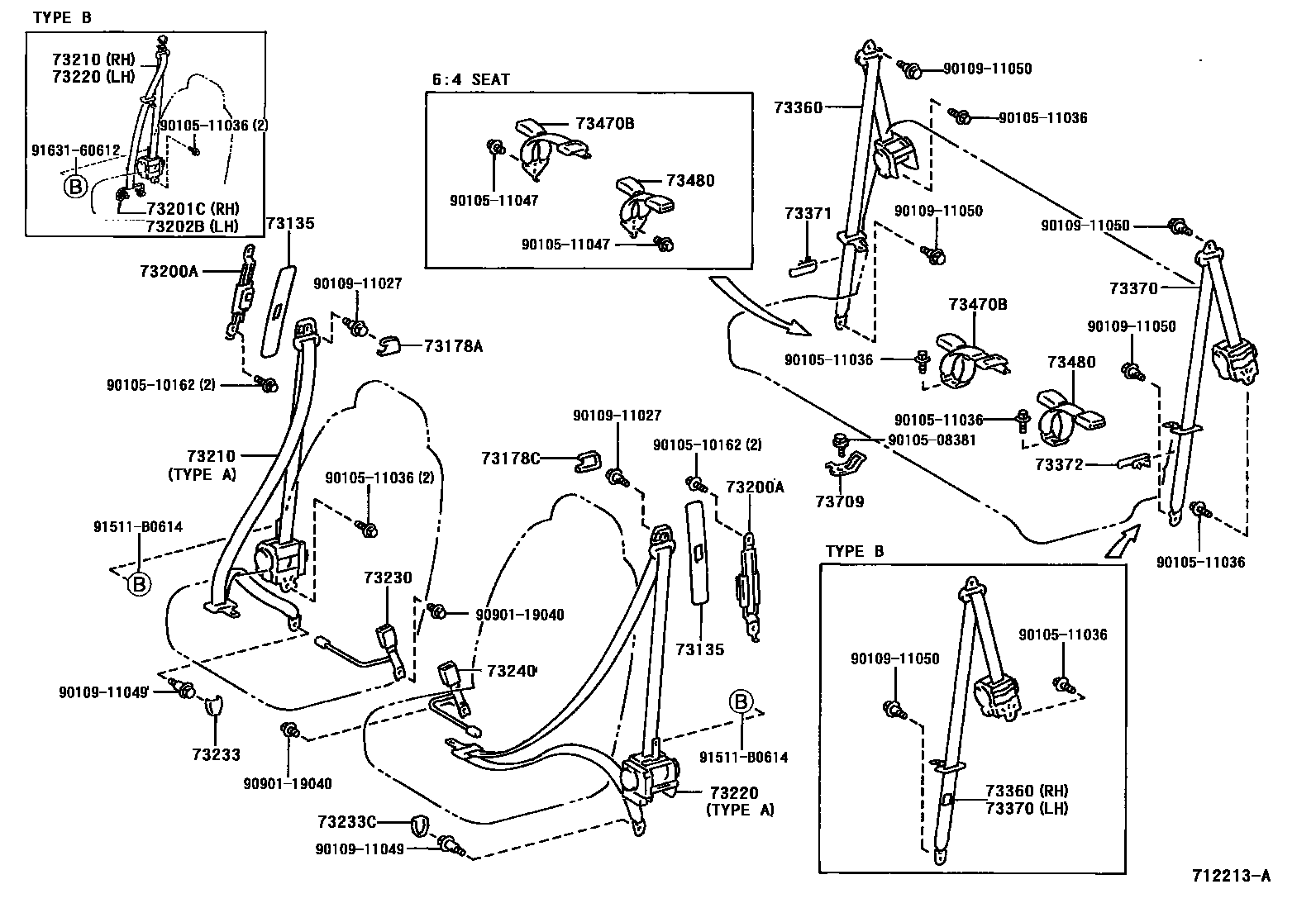

Parts diagram
73135COVER, SHOULDER BELT ANCHORAGE PLATE
main73135-12030-B7×2i199903-199908
LT. GRAY,TRIM1#
main73135-12030-B9×2i200101-200212
LT.GRAY,TRIM9#
main73135-12030-G1×2i199903-199908
LT. GREEN,TRIM7#
main73135-12030-G2×2i199908-200212
AGATE,TRIM7#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-12040-B5i200101-200108
LT.GRAY,TRIM9#
main73178-12040-G3i199903-200108
AGATE,TRIM7#
main73178-33020-B3i200108-200212
LT.GRAY,TRIM1#; LT.GRAY,TRIM9#
main73178-33020-G1i200108-200212
AGATE,TRIM7#
73178CCAP, SEAT BELT ANCHOR COVER
main73178-12040-B5i200101-200108
LT.GRAY,TRIM9#
main73178-12040-G3i199903-200108
AGATE,TRIM7#
main73178-33020-B3i200212-200508
LT.GRAY,TRIM9#
main73178-33020-G1i200108-200212
AGATE,TRIM7#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-60020-B2×2i199903-200212
LT.GRAY,TRIM1#
main73200-60020-G1×2i199903-200212
AGATE,TRIM7#
73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH
main73201-52010i199908-200008
73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH
main73202-52010i199908-200008
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-52011-C0i199908-200001
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE A; W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE A
main73210-52011-C1i199908-200001
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE A; W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE A
main73210-52021-C0i199908-200001
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE A
main73210-52021-C1i199908-200001
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE A
main73210-52031-C0i199908-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B
main73210-52031-C1i199908-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B
main73210-52041-C0i199908-200008
BLACK,TRIM1#,TYPE B
main73210-52041-C1i199908-200008
BLACK,TRIM7#,TYPE B
main73210-52041-C2i200008-200108
BLACK,TRIM1#,TYPE B
main73210-52041-C3i200101-200108
BLACK,TRIM7#,TYPE B
main73210-52042-C2i200212-200508
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9#
main73210-52042-C3i200108-200208
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE B
main73210-52050-C0i199908-200101
BLACK,TRIM1#,TYPE A
main73210-52050-C1i199908-200101
BLACK,TRIM7#,TYPE A
main73210-52050-C2i200101-200208
BLACK,TRIM1#,TYPE A
main73210-52050-C3i200101-200208
BLACK,TRIM7#,TYPE A
main73210-52060-C0i199903-199905
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52060-C1i199903-199905
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52061-C0i199908-200008
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#
main73210-52061-C1i199908-200008
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#
main73210-52061-C2i200008-200108
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#
main73210-52061-C3i200008-200108
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#
main73210-52062-C2i200108-200205
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#
main73210-52062-C3i200108-200205
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#
main73210-52063-C2i200205-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#
main73210-52063-C3i200205-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#
main73210-52071-C0i199908-200001
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52071-C1i199908-200001
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52081-C0i200001-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52081-C1i200001-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52090-C0i199908-200101
BLACK,TRIM1#
main73210-52090-C1i199908-200101
BLACK,TRIM7#
main73210-52090-C2i200101-200108
BLACK,TRIM1#
main73210-52090-C3i200101-200108
BLACK,TRIM7#
main73210-52091-C2i200108-200212
BLACK,TRIM1#
main73210-52091-C3i200108-200212
BLACK,TRIM7#
main73210-52180-C0i200001-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE A
main73210-52180-C1i200001-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE A
main73210-52200-C0i200001-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52200-C1i200001-200008
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52201-C2i200101-200108
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#; W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9#
main73210-52201-C3i200008-200108
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#
main73210-52202-C2i200212-200508
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9#
main73210-52202-C3i200108-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#
main73210-52210-C3i200008-200010
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52211-C0i200010-200101
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52211-C1i200101-200108
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52211-C2i200101-200108
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52212-C1i200108-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52212-C2i200108-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52220-C0i200208-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-52220-C1i200208-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73210-52220-C2i200008-200101
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B
main73210-52230-C0i200101-200108
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE A; W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9#,TYPE A
main73210-52230-C1i200101-200108
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE A
main73210-52230-C2i200008-200101
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE A
main73210-52230-C3i200008-200101
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE A
main73210-52231-C0i200108-200208
BLACK,TRIM1#,TYPE B; BLACK,TRIM9#,TYPE B; W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE B
main73210-52231-C1i200108-200208
BLACK,TRIM7#,TYPE B; W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE B
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-52011-C0i199908-200001
TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1#
main73220-52011-C1i199908-200008
W(*80,PASSENGER SIDE),BLACK,TRIM7#
main73220-52021-C0i199908-200001
W(*80,DRIVER SIDE ONLY),BLACK,TRIM1#
main73220-52021-C1i199908-200001
W(*80,DRIVER SIDE ONLY),BLACK,TRIM7#
main73220-52031-C0i199908-200008
BLACK,TRIM1#
main73220-52031-C1i199908-200008
BLACK,TRIM7#
main73220-52051-C0i199908-200008
TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1#; W(*80,PASSENGER SIDE),BLACK,TRIM1#
main73220-52051-C1i199908-200008
TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7#; W(*80,PASSENGER SIDE),BLACK,TRIM7#
main73220-52051-C2i200008-200108
W(*80,PASSENGER SIDE),BLACK,TRIM1#
main73220-52051-C3i200008-200108
W(*80,PASSENGER SIDE),BLACK,TRIM7#
main73220-52052-C2i200208-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#; W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9#
main73220-52052-C3i200208-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#
main73220-52060-C0i199908-200101
BLACK,TRIM1#
main73220-52060-C1i199908-200101
BLACK,TRIM7#
main73220-52060-C2i200208-200212
BLACK,TRIM1#
main73220-52060-C3i200208-200212
BLACK,TRIM7#
main73220-52070-C0i199903-199905
W(*80,PASSENGER SIDE),BLACK,TRIM1#
main73220-52070-C1i199903-199905
W(*80,PASSENGER SIDE),BLACK,TRIM7#
main73220-52071-C0i199905-200001
W(*80,PASSENGER SIDE),BLACK,TRIM1#
main73220-52071-C1i199905-200001
W(*80,PASSENGER SIDE),BLACK,TRIM7#
main73220-52071-C2i200101-200108
W(*80),BLACK,TRIM9#; W(*80,PASSENGER SIDE),BLACK,TRIM1#
main73220-52071-C3i200008-200108
W(*80,PASSENGER SIDE),BLACK,TRIM7#
main73220-52072-C2i200108-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#; W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9#
main73220-52072-C3i200108-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#
main73220-52080-C0i199903-199905
BLACK,TRIM1#
main73220-52080-C1i199903-199905
BLACK,TRIM7#
main73220-52081-C0i199908-200001
W(*80,DRIVER SIDE ONLY),BLACK,TRIM1#
main73220-52081-C1i199908-200001
W(*80,DRIVER SIDE ONLY),BLACK,TRIM7#
main73220-52100-C0i199908-200101
BLACK,TRIM1#
main73220-52100-C1i199908-200101
BLACK,TRIM7#
main73220-52100-C2i200101-200108
BLACK,TRIM1#
main73220-52100-C3i200101-200108
BLACK,TRIM7#
main73220-52101-C2i200108-200212
BLACK,TRIM1#
main73220-52101-C3i200108-200212
BLACK,TRIM7#
main73220-52111-C0i199908-200008
BLACK,TRIM1#
main73220-52111-C1i199908-200008
BLACK,TRIM7#
main73220-52210-C0i200001-200008
W(*80,DRIVER SIDE ONLY),BLACK,TRIM1#
main73220-52210-C1i200001-200008
W(*80,DRIVER SIDE ONLY),BLACK,TRIM7#
main73220-52220-C0i200001-200008
W(*80,DRIVER SIDE),BLACK,TRIM1#
main73220-52220-C1i200001-200008
W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52221-C1i200008-200010
W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52222-C1i200010-200101
W(*80,DRIVER SIDE) OR W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM7#
main73220-52222-C2i200101-200108
W(*80,DRIVER SIDE),BLACK,TRIM1#
main73220-52222-C3i200101-200108
W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52223-C2i200212-200508
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9#
main73220-52223-C3i200108-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#
main73220-52230-C0i200001-200008
BLACK,TRIM1#,7#
main73220-52231-C2i200008-200010
GRAY,TRIM7#; W(*80,DRIVER SIDE ONLY),GRAY,TRIM7#
main73220-52232-C2i200010-200101
BLACK,TRIM7#; W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52232-C4i200101-200108
BLACK,TRIM1#; BLACK,TRIM9#; W(*80,DRIVER SIDE),BLACK,TRIM1#
main73220-52232-C5i200101-200108
BLACK,TRIM7#; W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52233-C4i200212-200508
W(PRETENSIONER SEAT BELT),BLACK,TRIM9#
main73220-52233-C5i200108-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73220-52240-C0i200208-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#; W(PRETENSIONER SEAT BELT),BLACK,TRIM9#
main73220-52240-C1i200208-200212
W(PRETENSIONER SEAT BELT),BLACK,TRIM7#
main73220-52240-C2i200008-200101
BLACK,TRIM1#; W(*80,DRIVER SIDE ONLY),BLACK,TRIM1#
main73220-52250-C0i200101-200108
W(*80,DRIVER SIDE),BLACK,TRIM1#
main73220-52250-C1i200101-200108
W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52250-C2i200008-200101
W(*80,DRIVER SIDE),BLACK,TRIM1#
main73220-52250-C3i200008-200101
W(*80,DRIVER SIDE),BLACK,TRIM7#
main73220-52251-C0i200208-200212
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#
main73220-52251-C1i200108-200208
W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE B
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-52010-B0i199903-200008
SHADOW GRAY,TRIM1#,7#
main73230-52010-B2i200101-200112
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
main73230-52030-B0i199908-200101
SHADOW GRAY,TRIM1#,7#
main73230-52030-B2i200101-200212
DK.GRAY,TRIM1#,7#
main73230-52040-B0i199908-200008
SHADOW GRAY,TRIM1#,7#
main73230-52180-B0i200112-200212
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
main73230-52310-B0i200212-200508
DK.GRAY,TRIM9#
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-B3i199903-200101
SHADOW GRAY,TRIM1#,7#
main73233-33010-B8i200101-200212
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-33010-B3i199903-200001
SHADOW GRAY,TRIM1#,7#
main73233-33010-B8i200101-200212
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-52020-B0i199903-199907
SHADOW GRAY,TRIM1#,7#
main73230-52021-B0i199907-200101
SHADOW GRAY,TRIM1#,7#
main73230-52021-B2i200101-200112
DK.GRAY,TRIM1#,7#
main73230-52030-B0i199908-200008
SHADOW GRAY,TRIM1#,7#
main73230-52030-B2i200212-200508
DK.GRAY,TRIM9#
main73230-52050-B0i199908-200008
SHADOW GRAY,TRIM1#,7#
main73230-52190-B0i200112-200212
DK.GRAY,TRIM1#,7#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-52010-C1i199903-199908
BLACK,TRIM1#
main73360-52010-C2i199903-199908
BLACK,TRIM7#
main73360-52010-C3i199908-200101
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#
main73360-52010-C4i200101-200212
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#
main73360-52020-C1i199903-199908
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#
main73360-52020-C2i199903-199908
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM7#
main73360-52020-C3i199908-200101
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#
main73360-52020-C4i200101-200212
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#; TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM9#
main73360-52150-C0i200212-200508
BLACK,TRIM9#
main73360-52180-C0i200212-200508
BLACK,TRIM9#; W (FOLDING REAR SEAT),BLACK,TRIM9#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-52010-C1i199903-199908
BLACK,TRIM1#
main73370-52010-C2i199903-199908
BLACK,TRIM7#
main73370-52010-C3i199908-200101
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#
main73370-52010-C4i200101-200212
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#
main73370-52020-C1i199903-199908
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#
main73370-52020-C2i199903-199908
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM7#
main73370-52020-C3i199908-200101
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#
main73370-52020-C4i200101-200212
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7#; TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM9#
main73370-52110-C0i200212-200508
BLACK,TRIM9#
main73370-52130-C0i200212-200508
BLACK,TRIM9#; W(FOLDING REAR SEAT),BLACK,TRIM9#
73371HANGER, REAR SEAT SHOULDER BELT, RH
main73371-16050-B1i199903-200212
SHADOW GRAY,TRIM1#
main73371-16050-H0i199903-200212
FRENCH TURQUOISE,TRIM7#
main73371-52010-B1i200212-200508
DK.GRAY,TRIM9#
73372HANGER, REAR SEAT SHOULDER BELT, LH
main73371-16050-B1i199903-200212
SHADOW GRAY,TRIM1#
main73371-16050-H0i199903-200212
FRENCH TURQUOISE,TRIM7#
main73371-52010-B1i200212-200508
DK.GRAY,TRIM9#
73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH
main73470-52010-C0i199903-200101
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7#
main73470-52020-C0i199908-200101
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7#
main73470-52020-C1i200101-200212
BLACK,TRIM1#,7#; BLACK,TRIM9#; W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7#
main73470-52040-C0i199903-200101
W(BENCH SEAT),BLACK,TRIM1#,7#
main73470-52040-C1i200101-200212
W(BENCH SEAT),BLACK,TRIM1#,7#
main73470-52200-C0i200212-200508
BLACK,TRIM9#
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
main73480-52010-C0i199908-200101
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7#
main73480-52010-C1i200101-200212
BLACK,TRIM9#; W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7#
main73480-52040-C0i199903-200101
W(BENCH SEAT),BLACK,TRIM1#,7#
main73480-52040-C1i200101-200212
W(BENCH SEAT),BLACK,TRIM1#,7#
main73480-52160-C1i200212-200508
BLACK,TRIM9#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-12050i200212
9010508381
main90105-08381
9010510162
main90105-10162
9010511036
main90105-11036
9010511047
main90105-11047
9010911027
main90109-11027
9010911049
main90109-11049
9010911050
main90109-11050
9090119040
main90901-19040
91511B0614
main91511-B0614
9163160612
main91631-60612

29 parts on this diagram · 4 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
