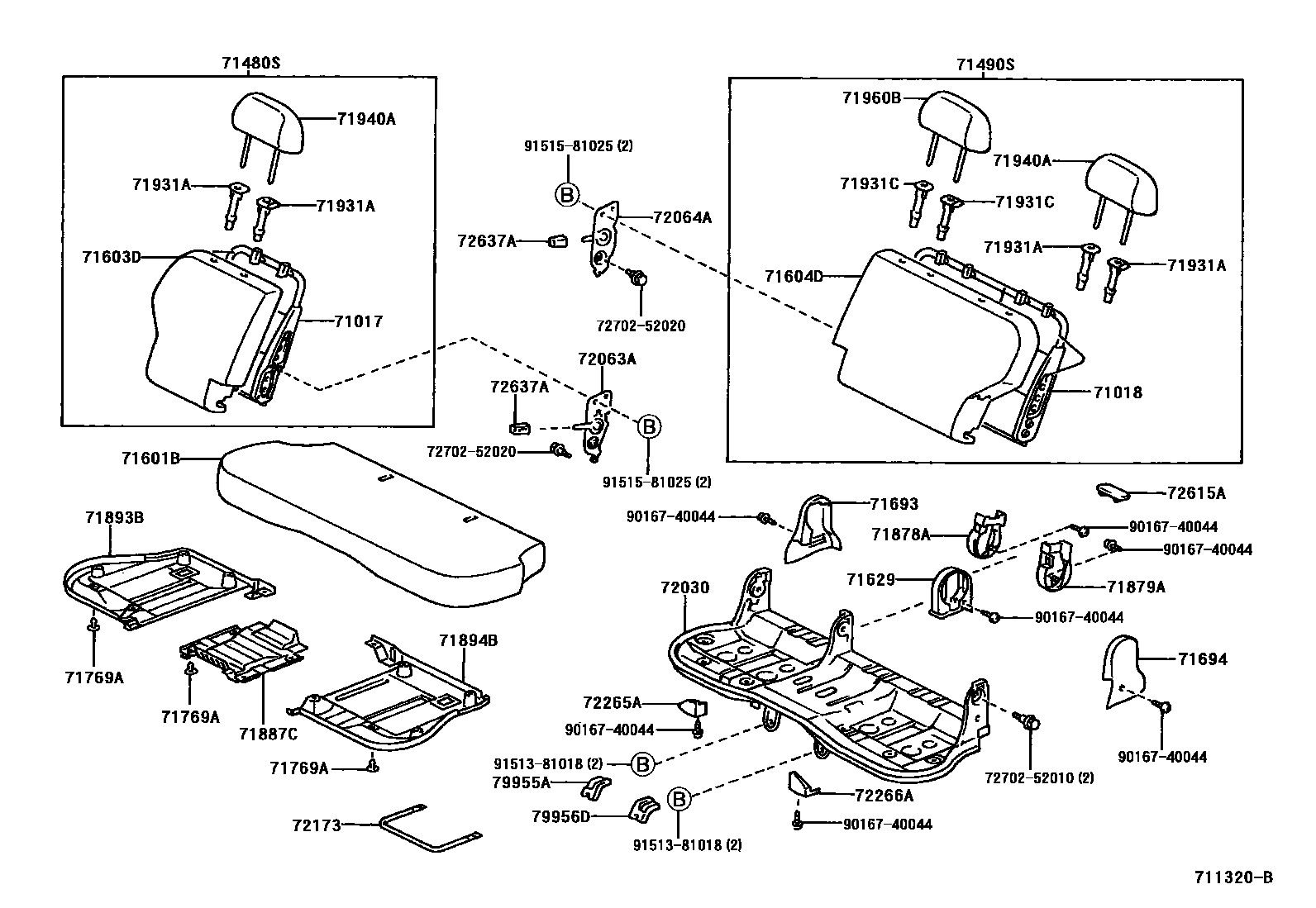

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE D-*104,SHADOW GRAY,TRIM9#
SEAT = TYPE D-*104,SHADOW GRAY,TRIM9#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE F OR TYPE G-*104,SHADOW GRAY,TRIM1#; SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE F OR TYPE G-*104,FRENCH TURQUOISE,TRIM7#; SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE D-*104,SHADOW GRAY,TRIM9#
SEAT = TYPE D-*104,SHADOW GRAY,TRIM9#
SEAT = TYPE E-*104,XXXX,TRIM1#
SEAT = TYPE E-*104,XXXX,TRIM7#
SEAT = TYPE G-*104,XXXX,TRIM1#
SEAT = TYPE G-*104,XXXX,TRIM7#
SEAT = TYPE F OR TYPE G-*104,XXXX,TRIM1#; SEAT = TYPE G-*104,XXXX,TRIM1#
SEAT = TYPE F OR TYPE G-*104,XXXX,TRIM7#; SEAT = TYPE G-*104,XXXX,TRIM7#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
71601BPAD SUB-ASSY, REAR SEAT CUSHION W/COVER
SEAT = TYPE B-*104,GRAY,TRIM1#
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104 & W(REAR HEADREST),GRAY,TRIM1#
SEAT = TYPE C-*104 & W(REAR HEADREST),TORQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE C-*104,GRAY,TRIM1#,*(TA)
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,*(TA)
SEAT = TYPE D-*104,BLACK,TRIM9#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
SEAT = TYPE C-*104,DK. GRAY,TRIM97,98
SEAT = TYPE C-*104,DK.GRAY,TRIM99
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
SEAT = TYPE A-*104,BLACK,TRIM9#
71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH
SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE B-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE B-*104,GRAY,TRIM1#,TNK
SEAT = TYPE B-*104,TORQUOISE,TRIM7#,TNK
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE C-*104,GRAY,TRIM1#
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE C-*104,GRAY,TRIM1#
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#,*(TA)
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,*(TA)
SEAT = TYPE D-*104,BLACK,TRIM9#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE E OR TYPE F OR TYPE G-*104,SHADOW GRAY,TRIM1#; SEAT = TYPE F OR TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE E OR TYPE F OR TYPE G-*104,FRENCH TURQUOISE,TRIM7#; SEAT = TYPE F OR TYPE G-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK
SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TACHIESU
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU
SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,TACHIESU
SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,TACHIESU
SEAT = TYPE C-*104,DK. GRAY,TRIM97,98
SEAT = TYPE C-*104,DK.GRAY,TRIM99
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
SEAT = TYPE A-*104 & W(REAR HEADREST),DK. GRAY,TRIM9#
SEAT = TYPE A-*104,BLACK,TRIM9#
71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH
SEAT = TYPE B-*104,GRAY,TRIM1#; SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE B-*104,TORQUOISE,TRIM7#; SEAT = TYPE B-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE B-*104,GRAY,TRIM1#
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE C-*104,GRAY,TRIM1#,*(TA)
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,*(TA)
SEAT = TYPE C-*104,GRAY,TRIM1#,TNK
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK
SEAT = TYPE C-*104,GRAY,TRIM1#; SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
SEAT = TYPE C-*104,TORQUOISE,TRIM7#; SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
SEAT = TYPE C-*104,GRAY,TRIM1#,TNK
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK
SEAT = TYPE D-*104,BLACK,TRIM9#,TNK
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TACHIESU
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU
SEAT = TYPE F OR TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO; SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
SEAT = TYPE F OR TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO; SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104,DK. GRAY,TRIM97,98
SEAT = TYPE C-*104,DK.GRAY,TRIM99
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
SEAT = TYPE A-*104,BLACK,TRIM9#
71629COVER, REAR SEAT CUSHION HINGE
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
FRENCH TURQUOISE,TRIM7#
71693COVER, REAR SEAT CUSHION HINGE, LOWER RH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
FRENCH TURQUOISE,TRIM7#
71694COVER, REAR SEAT CUSHION HINGE, LOWER LH
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM1#; DK.GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
71769ACLIP, REAR SEATBACK BOARD
71878ACOVER, REAR SEAT RECLINING, INNER RH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
FRENCH TURQUOISE,TRIM7#
71879ACOVER, REAR SEAT RECLINING, INNER LH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#; DK.GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
71887CCARPET, REAR SEAT CUSHION
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
71893BCARPET, REAR SEAT CUSHION, UNDER RH
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
71894BCARPET, REAR SEAT CUSHION, UNDER LH
SHADOW GRAY,TRIM1#,7#
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),DK.GRAY,TRIM9#; W(LOCK),DK.GRAY,TRIM97,98; W(LOCK),DK.GRAY,TRIM97,98,99
W(LOCK),SHADOW GRAY,TRIM1#
W(LOCK),AGATE,TRIM7#
W/O(LOCK),DK.GRAY,TRIM9#; W/O(LOCK),DK.GRAY,TRIM97,98; W/O(LOCK),DK.GRAY,TRIM97,98,99
W/O(LOCK),SHADOW GRAY,TRIM1#
W/O(LOCK),AGATE,TRIM7#
71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST
W(LOCK),SHADOW GRAY,TRIM1#
W(LOCK),AGATE,TRIM7#
W(LOCK),DK.GRAY,TRIM1#,7#
W/O(LOCK),SHADOW GRAY,TRIM1#
W/O(LOCK),AGATE,TRIM7#
W/O(LOCK),DK.GRAY,TRIM1#,7#
W/O(LOCK),DK.GRAY,TRIM9#; W/O(LOCK),DK.GRAY,TRIM97,98; W/O(LOCK),DK.GRAY,TRIM97,98,99
W(LOCK),DK.GRAY,TRIM9#; W(LOCK),DK.GRAY,TRIM97,98; W(LOCK),DK.GRAY,TRIM97,98,99
71940AHEADREST ASSY, REAR SEAT
SEAT = TYPE A-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104,GRAY,TRIM1#
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
SEAT = TYPE D-*104,BLACK,TRIM9#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
MD. GRAY,TRIM9#; SEAT = TYPE A-*104,MD. GRAY,TRIM9#
SEAT = TYPE C-*104,DK. GRAY,TRIM9#
SEAT = TYPE B-*104,DK. GRAY,TRIM9#
71960BHEADREST ASSY, REAR SEAT, CENTER
SEAT = TYPE B-*104,GRAY,TRIM1#
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
SEAT = TYPE C-*104,GRAY,TRIM1#
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
SEAT = TYPE D-*104,BLACK,TRIM9#
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104,DK. GRAY,TRIM97,98,99
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
72030ADJUSTER ASSY, REAR NO.1 SEAT
72063AARM SUB-ASSY, REAR SEATBACK LOCK, RH
72064AARM SUB-ASSY, REAR SEATBACK LOCK, LH
72173HANDLE, REAR SEAT TRACK ADJUSTING
72265ACOVER, SEAT TRACK UPPER RAIL, RH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#; DK.GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
72266ACOVER, SEAT TRACK UPPER RAIL, LH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
FRENCH TURQUOISE,TRIM7#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
SHADOW GRAY,TRIM1#,7#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
FRENCH TURQUOISE,TRIM7#
72637AHANDLE, REAR SEAT LOCK
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#; DK.GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
79955ACOVER, REAR SEAT FRONT BRACKET, RH
SHADOW GRAY,TRIM1#,7#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
79956DCOVER, REAR SEAT FRONT BRACKET, LH
SHADOW GRAY,TRIM1#,7#
DK.GRAY,TRIM1#,7#; DK.GRAY,TRIM9#
7270252010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52010
7270252020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52020
9016740044
main90167-40044
9151381018
main91513-81018
9151581025
main91515-81025
35 parts on this diagram · 4 diagrams in section
