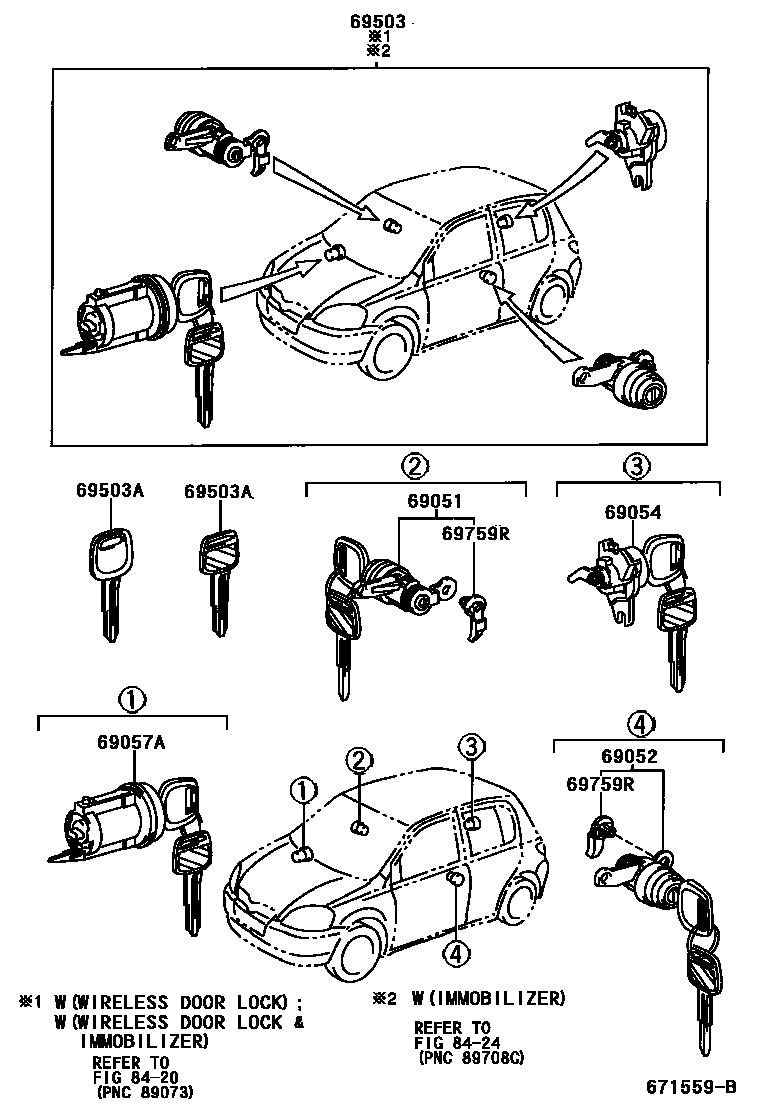

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
W(KEY LESS ENTRY)
69054CYLINDER & KEY SET, BACK DOOR LOCK
W(KEY LESS ENTRY)
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
W(IMMOBILIZER)
W(IMMOBILIZER & KEY LESS ENTRY)
W(IMMOBILIZER & KEY LESS ENTRY)
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68); MASTER KEY,W(*68),W(KEY LESS ENTRY)
MASTER KEY,W(*68)
MASTER KEY
MASTER KEY
MASTER KEY,W(*68); MASTER KEY,W(*68),W(KEY LESS ENTRY)
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
8420WIRELESS DOOR LOCK
8424ANTI-THEFT DEVICE
9 parts on this diagram · 1 diagram in section
