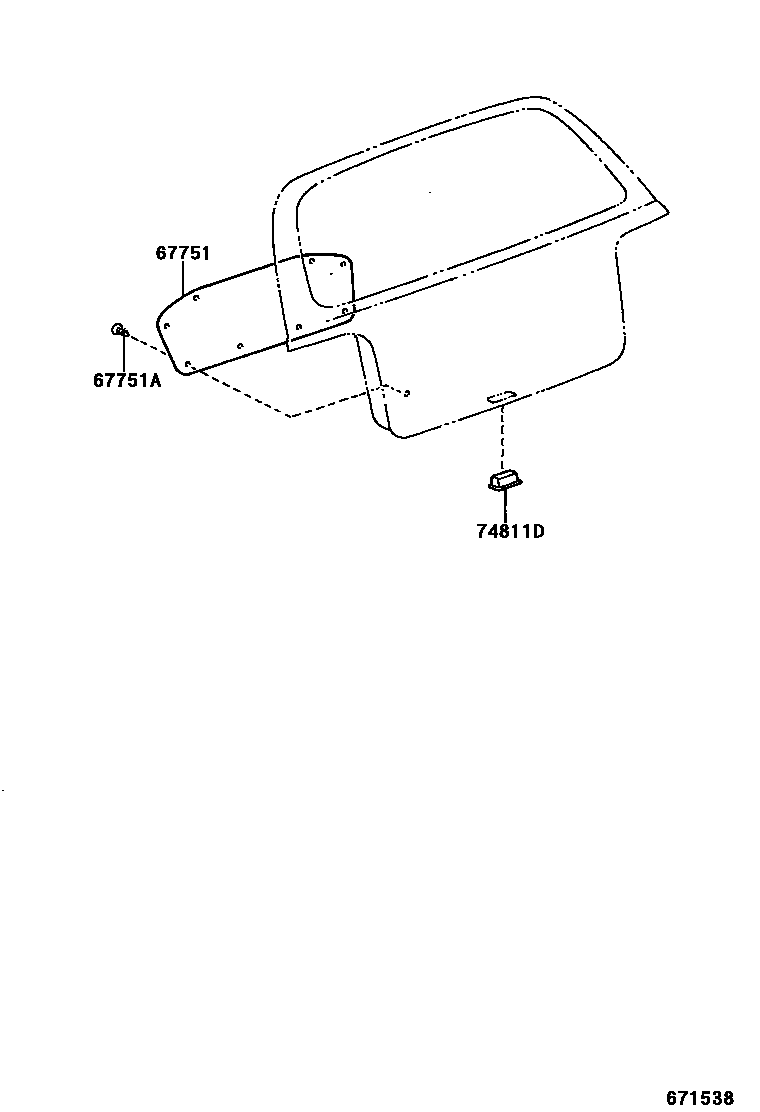

BACK DOOR PANEL & GLASS

0001 1 0002 1

67751BOARD, BACK DOOR TRIM

main67751-52010-C0iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

BLACK,TRIM9#; BLACK,TRIM97,98; BLACK,TRIM97,98,99

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05096-22×8iNCP10,SCP10199903-200211

BLACK,TRIM1#,7#

main90467-05165-B0×8iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main90467-05165-C0×8iNCP10,SCP10; NCP13200211-200212

BLACK,TRIM1#,7#; BLACK,TRIM9#

74811DHANDLE, DOOR PULL

main74811-13010-C0iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

BLACK,TRIM9#; BLACK,TRIM97,98; BLACK,TRIM97,98,99

3 parts on this diagram · 2 diagrams in section
