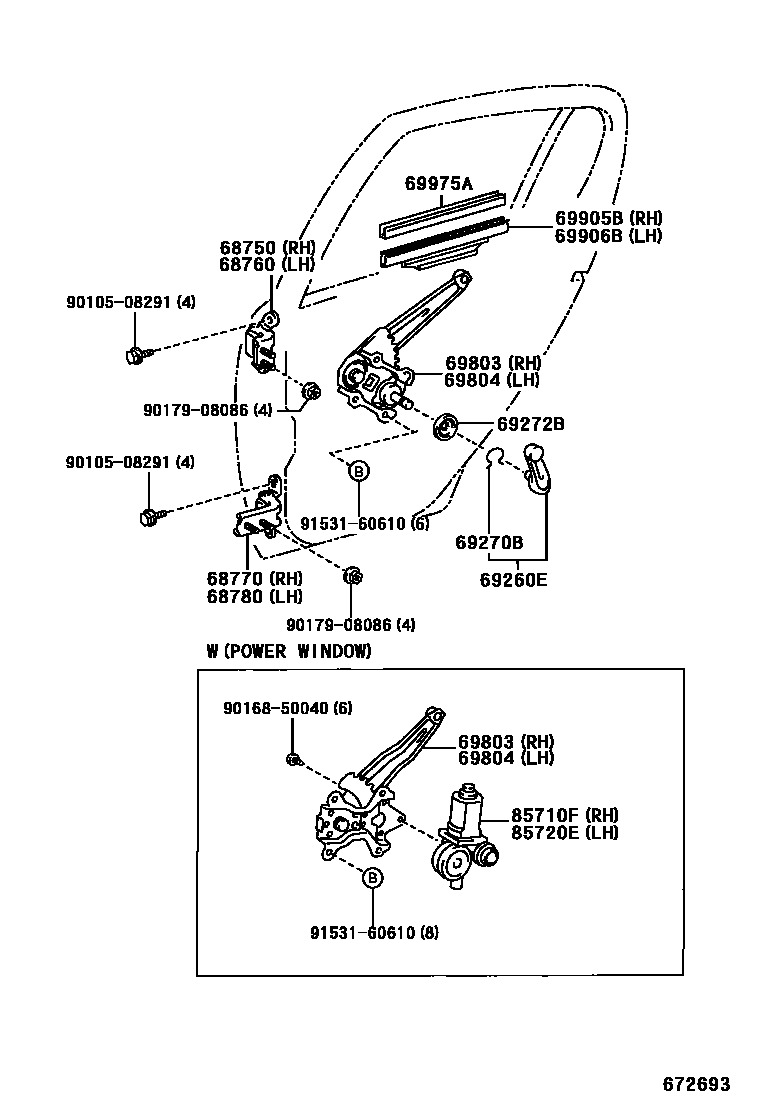

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-52010iSCP10199903-199908

main68750-52011iNCP1#,SCP10..5D199908-200212

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-52010iSCP10199903-199908

main68760-52011iNCP1#,SCP10..5D199908-200212

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52010iSCP10199903-199908

main68770-52011iNCP1#,SCP10..5D200212-200508

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52010iSCP10199903-199908

main68780-52011iNCP1#,SCP10..5D199908-200212

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52030-B1×2iNCP10,SCP10..5D199903-200101

SHADOW GRAY,TRIM1#

main69260-52030-B4×2iNCP10,SCP10..5D..GEN; NCP10..5D..ARL; NCP13..5D200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main69260-52030-H0×2iNCP10,SCP10..5D199903-200212

FRENCH TURQUOISE,TRIM7#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iNCP1#,SCP10..5D199903-200212

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iNCP1#,SCP10..5D200212

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52010iNCP1#,SCP10..5D199903-200212

W(POWER WINDOW)

main69830-52020iNCP1#,SCP10..5D199903-200212

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52010iNCP1#,SCP10..5D199903-200212

W(POWER WINDOW)

main69840-52020iNCP1#,SCP10..5D199903-200212

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52010iNCP1#,SCP10..5D199903-200212

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52020iNCP1#,SCP10..5D199903-200212

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNCP1#,SCP10..5D199903-200212

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52010iNCP1#,SCP10..5D199903-200212

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52020iNCP1#,SCP10..5D199903-200212

9010508291

main90105-08291

9016850040

main90168-50040

9017908086

main90179-08086

9153160610

main91531-60610

18 parts on this diagram · 1 diagram in section
