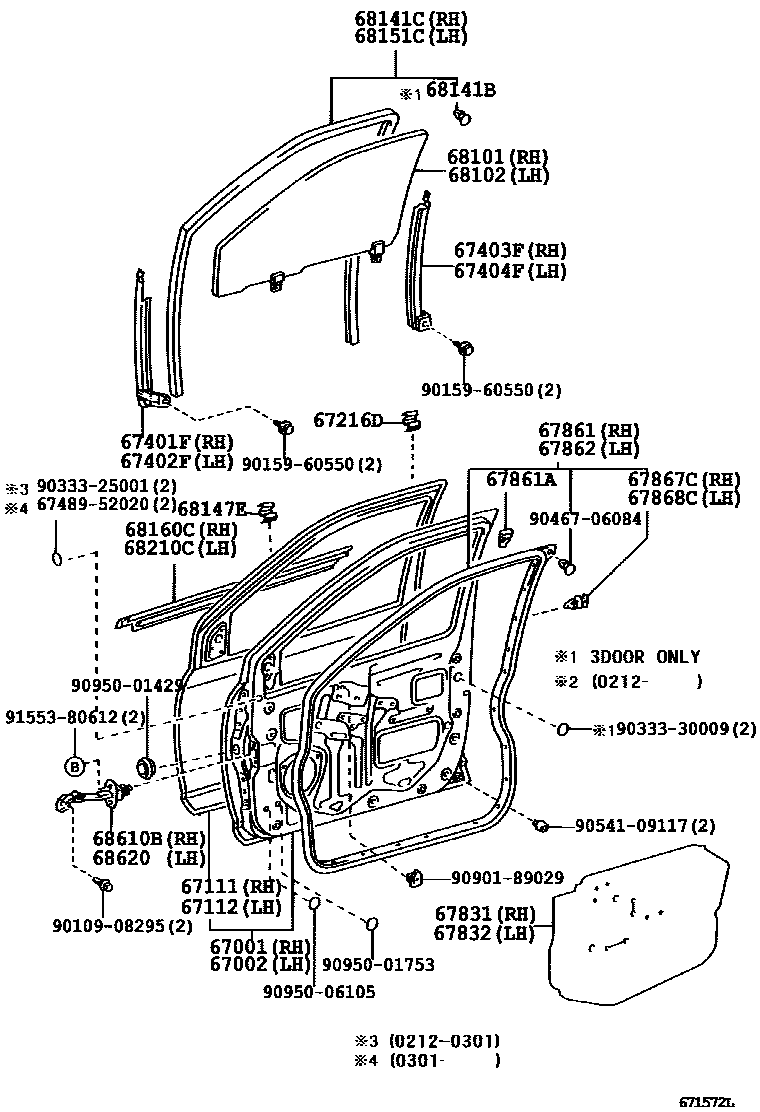

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE TABLE 0004 1TRIM CODE TABLE

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52010iNCP10,SCP10..5D199903-199911

main67001-52011iNCP1#,SCP10..5D199911-200212

main67001-52020iNCP10..3D199908-199910

main67001-52021iNCP1#..3D200212-200508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52010iNCP10,SCP10..5D199903-199911

main67002-52011iNCP1#,SCP10..5D199911-200212

main67002-52020iNCP10..3D199908-199910

main67002-52021iNCP1#..3D200212-200508

67111PANEL, FRONT DOOR, OUTER RH

main67111-52010iNCP1#,SCP10..5D200212-200508

main67111-52020iNCP1#..3D199908-200212

67112PANEL, FRONT DOOR, OUTER LH

main67112-52010iNCP1#,SCP10..5D199903-200212

main67112-52020iNCP1#..3D200212-200508

67216DSTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-52010×2iNCP1#,SCP10199903-200212

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52010iNCP1#,SCP10..5D199903-200203

main67401-52011iNCP1#,SCP10..5D200203-200212

main67401-52020iNCP1#..3D200212

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52010iNCP1#,SCP10..5D199903-200203

main67402-52011iNCP1#,SCP10..5D200203-200212

main67402-52020iNCP1#..3D199908-200212

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52010iNCP1#,SCP10199903-200212

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52010iNCP1#,SCP10199903-200212

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52010iNCP1#,SCP10..5D200212

main67831-52020iNCP1#,SCP10..5D199903-200212

W(FRONT DOOR SPEAKER)

main67831-52030iNCP1#..3D200212

main67831-52040iNCP1#..3D200212

W(FRONT DOOR SPEAKER)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-52010iNCP1#,SCP10..5D200212

main67831-52020iNCP1#,SCP10..5D200212

W(FRONT DOOR SPEAKER)

main67831-52030iNCP1#..3D199908-200212

main67831-52040iNCP1#..3D199908-200212

W(FRONT DOOR SPEAKER)

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52010iNCP1#,SCP10..5D200212

main67861-52020iNCP1#..3D200212

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52010×20iSCP10199903-199907

main67867-52020×10iNCP10,SCP10..5D; NCP10..3D199908-200012

RH

main67867-52030×11iNCP10,SCP10..5D; NCP10..3D199908-200012

LH

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52010iNCP1#,SCP10..5D200212

main67862-52020iNCP1#..3D199908-200212

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×21iNCP1#,SCP10..5D200012-200212

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×21iNCP1#,SCP10..5D; NCP1#..3D200212

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52010iNCP10,SCP10..5D..GEN200212

*TEM,T=3.1,GREEN

main68110-52020iNCP1#..5D..ARL200212

*UVCT,T=3.1,GREEN

main68110-52030iNCP10..3D..GEN199908-200212

*TEM,T=3.1,GREEN

main68110-52040iNCP1#..3D..ARL200212

*UVCT,T=3.1,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52010iNCP10,SCP10..5D..GEN200212

*TEM,T=3.1,GREEN

main68120-52020iNCP1#..5D..ARL200212

*UVCT,T=3.1,GREEN

main68120-52030iNCP10..3D..GEN199908-200212

*TEM,T=3.1,GREEN

main68120-52040iNCP1#..3D..ARL199908-200212

*UVCT,T=3.1,GREEN

68141BCLIP, DOOR GLASS RUN

main90467-06084×2iNCP1#..3D199908-200212

68141CRUN, FRONT DOOR GLASS, RH

main68141-52010iNCP1#,SCP10..5D199903-200205

main68141-52011iNCP1#,SCP10..5D200212

main68141-52020iNCP1#..3D199908-200205

main68141-52021iNCP1#..3D200205-200212

68147ESTOP, FRONT DOOR GLASS, UPPER

main68147-52010×2iNCP1#,SCP10199903-200212

68151CRUN, FRONT DOOR GLASS, LH

main68151-52010iNCP1#,SCP10..5D199903-200205

main68151-52011iNCP1#,SCP10..5D200205-200212

main68151-52020iNCP1#..3D199908-200205

main68151-52021iNCP1#..3D200205-200212

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52010iNCP1#,SCP10..5D200212

main68160-52020iNCP1#..3D200212

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52010iNCP1#,SCP10..5D200212

main68210-52020iNCP1#..3D200212

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52010iNCP1#,SCP10200212

68620CHECK ASSY, FRONT DOOR, LH

main68620-52010iNCP1#,SCP10199903-200212

6748952020SEAL, REAR DOOR DIVISION BAR

main67489-52020

9010908295

main90109-08295

9015960550

main90159-60550

9033325001

main90333-25001

9033330009

main90333-30009

9046706084

main90467-06084

9054109117

main90541-09117

9090189029

main90901-89029

9095001429

main90950-01429

9095001753

main90950-01753

9095006105

main90950-06105

9155380612

main91553-80612

38 parts on this diagram · 4 diagrams in section
