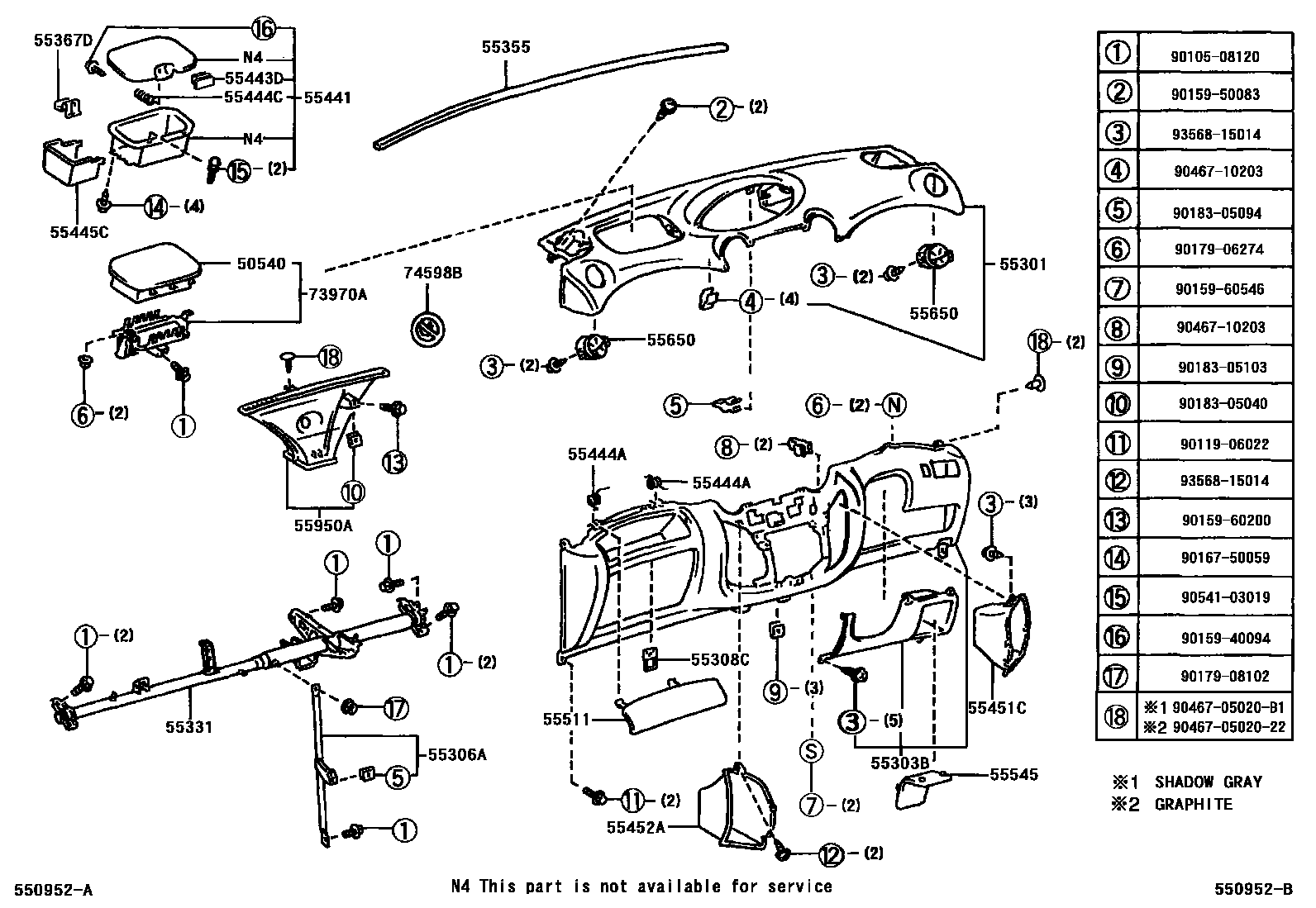

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE 0013 1 0014 1DRIVER SIDE 0015 1CENTER 0016 1PASSENGER SIDE

50540DO0R ASSY, AIRBAG PASSENGER

main50540-52020-B0iNCP13200101-200212

SHADOW GRAY,TRIM9#

main50540-52020-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52010-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main55301-52010-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

main55301-52020-B0iNCP10,SCP10..RHD199903-200212

SHADOW GRAY,TRIM1#

main55301-52020-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

main55301-52140-B0iNCP10,SCP10..RHD..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main55301-52170-B0iNCP10..LHD200212-200508

DK. GRAY,TRIM97,98

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52901iNCP1#,SCP10..RHD200212-200508

main55303-52901-B0iNCP10,SCP10..RHD199903-200212

SHADOW GRAY,TRIM1#

main55303-52901-B3iNCP13200101-200212

SHADOW GRAY,TRIM9#

main55303-52901-B4iNCP10,SCP10..RHD200212-200508

MD.GRAY,TRIM98

main55303-52901-B5iNCP10,SCP10..RHD..GEN; NCP10..ARL; NCP13200212-200508

DK. GRAY,TRIM9#; DK. GRAY,TRIM97; DK. GRAY,TRIM97,99

main55303-52901-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

main55303-52902iNCP10..LHD200212-200508

main55303-52902-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main55303-52902-B4iNCP10..LHD200212-200508

MD. GRAY,TRIM98

main55303-52902-B5iNCP10..LHD200212-200508

DK.GRAY,TRIM97

main55303-52902-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52011iNCP10..LHD199908-200212

main55306-52020iSCP10199903-199906

main55306-52021iNCP1#,SCP10..RHD199906-200212

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52010iNCP1#,SCP10199903-200204

main55308-52080iNCP1#,SCP10200204-200212

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52010iNCP10..LHD199908-200212

main55330-52020iNCP10..LHD199908-200212

W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE)

main55330-52030iSCP10199903-199907

main55330-52040iSCP10199903-199907

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55330-52041iNCP1#,SCP10..RHD199907-200212

main55330-52280iNCP10..LHD200212

main55330-52350iNCP1#,SCP10..RHD200212

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52010iSCP10199903-199908

main55355-52011iNCP10,SCP10199908-199909

main55355-52012iNCP1#,SCP10199909-200212

main55355-52150iNCP10,SCP10200501-200508

55367DBRACKET, INSTRUMENT PANEL BOX MOUNTING

main55367-52050iNCP1#..ARL199908-200212

55441BOX, INSTRUMENT PANEL

main55440-52030-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main55440-52030-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

main55440-52040-B0iNCP13200101-200212

SHADOW GRAY,TRIM9#

main55440-52040-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

55443DKNOB, INSTRUMENT PANEL BOX DOOR

main55443-52010-B0iNCP10,SCP10199903-200212

SHADOW GRAY,TRIM1#

main55443-52010-H0iNCP10,SCP10199903-200212

FRENCH TURQUOISE,TRIM7#

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52020×2iNCP10..LHD200212

main55444-52040×2iNCP1#,SCP10..RHD200212

55444CSPRING, INSTRUMENT PANEL BOX

main55444-52080iNCP1#,SCP10199903-200212

55445CPLATE, INSTRUMENT PANEL BOX

main55445-52030-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main55445-52030-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

main55445-52040-B0iNCP10,SCP10..RHD199903-200212

SHADOW GRAY,TRIM1#

main55445-52040-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-52010-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main55451-52010-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

main55451-52020-B0iNCP13200101-200212

SHADOW GRAY,TRIM9#

main55451-52020-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

main55451-52050-B1iNCP10,SCP10..RHD..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main55451-52080-B0iNCP10..LHD200212-200508

DK.GRAY,TRIM97,98

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-52010-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main55452-52010-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

main55452-52020-B0iNCP13200101-200212

SHADOW GRAY,TRIM9#

main55452-52020-H0iNCP10,SCP10..RHD199903-200212

FRENCH TURQUOISE,TRIM7#

main55452-52060-B1iNCP10,SCP10..RHD..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main55452-52080-B0iNCP10..LHD200212-200508

DK.GRAY,TRIM97,98

55511DOOR, GLOVE COMPARTMENT

main55501-52010-B0iNCP10..LHD199908-200212

MD.GRAY,TRIM1#

main55501-52010-G0iNCP10..LHD199908-200212

MIST GREEN,TRIM7#

main55501-52020-B0iNCP10,SCP10..RHD199903-200208

MD.GRAY,TRIM1#

main55501-52020-B2iNCP13200101-200208

SHADOW GRAY,TRIM9#

main55501-52020-G0iNCP10,SCP10..RHD199903-200208

MIST GREEN,TRIM7#

main55501-52050-B0iNCP10,SCP10..RHD200212-200508

MD.GRAY,TRIM98

main55501-52050-B1iNCP10,SCP10..RHD200208-200212

MD.GRAY,TRIM1#

main55501-52050-B2iNCP10,SCP10..RHD..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97; DK.GRAY,TRIM97,99

main55501-52050-B3iNCP13200208-200212

SHADOW GRAY,TRIM9#

main55501-52050-G0iNCP10,SCP10..RHD200208-200212

MIST GREEN,TRIM7#

main55501-52060-B0iNCP10..LHD200212-200508

DK.GRAY,TRIM97

main55501-52060-B1iNCP10..LHD200212-200508

MD.GRAY,TRIM98

55545COVER, FUSE BOX OPENING

main55545-52010-B0iNCP10,SCP10199903-200212

MD.GRAY,TRIM1#

main55545-52010-B2iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97; DK.GRAY,TRIM97,99

main55545-52010-B3iNCP13200101-200212

SHADOW GRAY,TRIM9#

main55545-52010-B5iNCP10,SCP10200212-200508

MD.GRAY,TRIM98

main55545-52010-G0iNCP10,SCP10199903-200212

MIST GREEN,TRIM7#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-52010-B0×2iNCP10,SCP10199903-200212

SHADOW GRAY,TRIM1#

main55650-52010-H0×2iNCP10,SCP10199903-200212

FRENCH TURQUOISE,TRIM7#

main55650-52080-B0×2iNCP10,SCP10200212-200508

DK.GRAY,TRIM9#

main55650-52110-B0×2iNCP13200212-200508

DK.GRAY,TRIM9#

55950ANOZZLE ASSY, DEFROSTER

main55950-52010iNCP10..LHD199908-200212

main55950-52020iNCP1#,SCP10..RHD199903-200212

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52010-B0iNCP10..LHD199908-200212

SHADOW GRAY,TRIM1#

main73970-52010-H0iNCP10..LHD199908-200212

FRENCH TURQUOISE,TRIM7#

main73970-52020-B0iNCP10,SCP10..RHD199903-200112

SHADOW GRAY,TRIM1#

main73970-52020-H0iNCP10,SCP10..RHD199903-200112

FRENCH TURQUOISE,TRIM7#

main73970-52080-B0iNCP10,SCP10..RHD; NCP13200112-200212

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#

main73970-52080-H0iNCP10,SCP10..RHD200112-200212

FRENCH TURQUOISE,TRIM7#

main73970-52130-B0iNCP10,SCP10..RHD..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99

main73970-52170-B0iNCP10..LHD200212-200508

DK.GRAY,TRIM97,98

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iNCP1#,SCP10199903-200212

9010508120

main90105-08120

9011906022

main90119-06022

9015940094

main90159-40094

9015950083

main90159-50083

9015960200

main90159-60200

9015960546

main90159-60546

9016750059

main90167-50059

9017906274

main90179-06274

9017908102

main90179-08102

9018305040

main90183-05040

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046705020B1

main90467-05020B1

9046710203

main90467-10203

9054103019

main90541-03019

9356815014

main93568-15014

38 parts on this diagram · 16 diagrams in section
