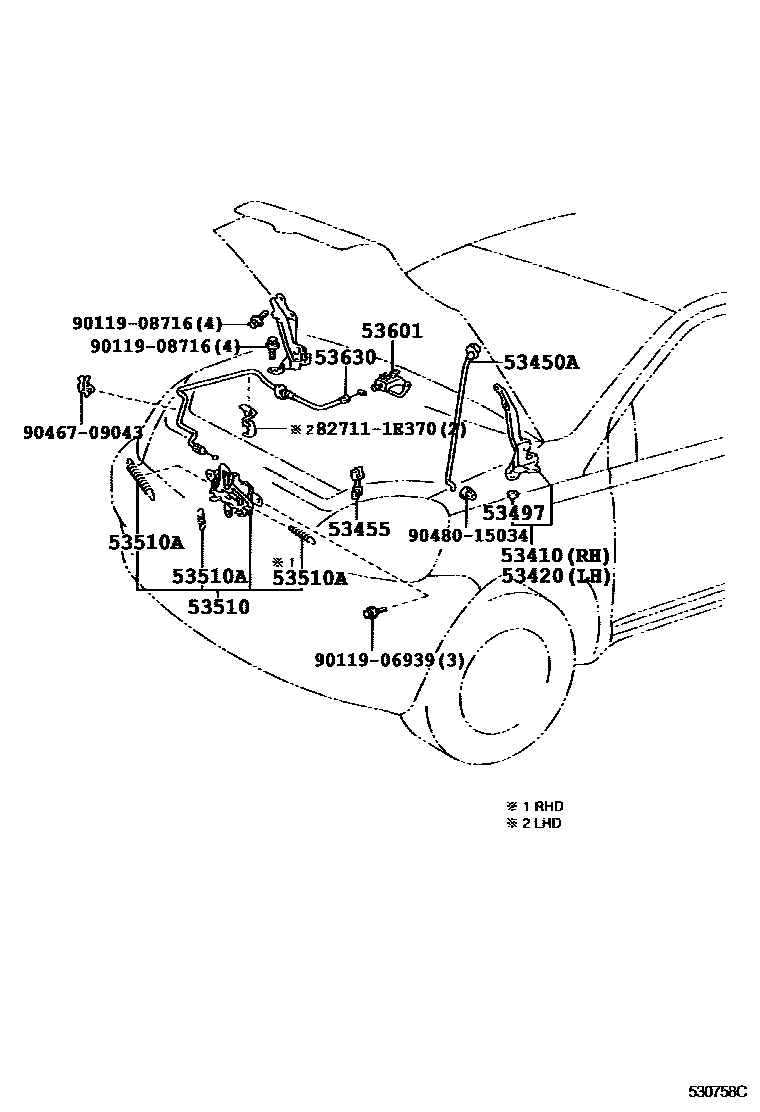

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52010iNCP1#,SCP10200212-200508

53420HINGE ASSY, HOOD, LH

main53420-52010iNCP1#,SCP10199903-200212

53450ASUPPORT ASSY, HOOD, LH

main53440-52010iNCP1#,SCP10199903-200211

main53440-52100iNCP1#,SCP10200212

53455CLAMP, HOOD SUPPORT ROD

main53455-52010iNCP1#,SCP10199903-200212

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iNCP1#,SCP10199903-200212

T=1.5

main53497-12050×4iNCP1#,SCP10199903-200212

T=1.0

main53497-42010×4iNCP1#,SCP10200212

T=0.5

53510LOCK ASSY, HOOD

main53510-52010iNCP1#,SCP10..RHD199903-200212

main53510-52030iNCP10..LHD199908-200212

main53510-52220iNCP1#,SCP10..RHD200212

main53510-52230iNCP10..LHD200212

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iNCP1#,SCP10..RHD199903-200212

WD=0.9,CW=20.75

main90506-09055iNCP1#,SCP10200208-200212

WD=0.9,CW=21

main90506-12063iNCP1#,SCP10200212

WD=1.2,CW=8.5

main90506-16077iNCP1#,SCP10200001-200212

WD=1.6,CW=12

main90506-18067iNCP10,SCP10199903-200001

WD=1.8,CW=13

main90905-06005iNCP10..LHD199908-200212

WD=0.9,CW=21.25

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B0iNCP10,SCP10199903-200212

BLUE GRAY,TRIM1#

main53601-52010-B3iNCP10,SCP10..GEN; NCP10..ARL; NCP13200212-200508

DK.GRAY,TRIM9#; DK.GRAY,TRIM97; DK.GRAY,TRIM97,99

main53601-52010-B6iNCP10,SCP10200212-200508

MD.GRAY,TRIM98

main53601-52010-G0iNCP10,SCP10199903-200212

MIST GREEN,TRIM7#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52010iNCP1#,SCP10199903-200212

main53630-52090iNCP1#,SCP10200212

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9011908716

main90119-08716

9046709043

main90467-09043

9048015034

main90480-15034

14 parts on this diagram · 1 diagram in section
