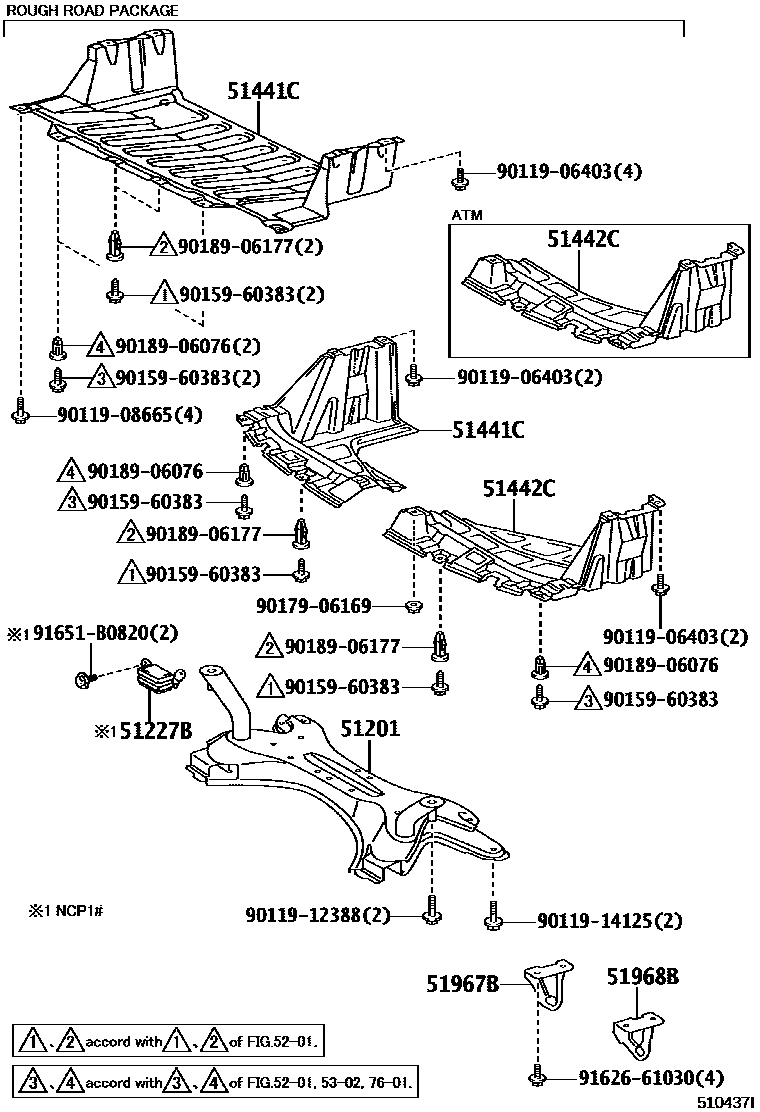

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52010iSCP10199903-199908

main51201-52011iNCP1#,SCP10199908-200207

main51201-52012iNCP1#,SCP10200207-200212

main51201-52013iNCP1#,SCP10200212-200305

main51201-52014iNCP1#,SCP10200305

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52010iNCP10199908-200212

main51227-52030iNCP13200101-200212

51441CCOVER, ENGINE UNDER, RH

main51405-52010iNCP10..MTM..GEN199908-200212

ROUGH ROAD PACKAGE

main51441-52010iNCP1#199908-200212

main51441-52030iSCP10199903-200212

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP10,SCP10..ATM199903-200212

main51442-52030iNCP1#,SCP10..MTM199903-200212

51967BHOOK, TRANSPORT, REAR RH

main51967-10100iNCP1#,SCP10199903-200212

51968BHOOK, TRANSPORT, REAR LH

main51967-10090iNCP1#,SCP10199903-200212

9011906403

main90119-06403

9011908665

main90119-08665

9011912388

main90119-12388

9011914125

main90119-14125

9015960383

main90159-60383

9017906169

main90179-06169

9018906076

main90189-06076

9018906177

main90189-06177

9162661030

main91626-61030

91651B0820

main91651-B0820

16 parts on this diagram · 1 diagram in section
