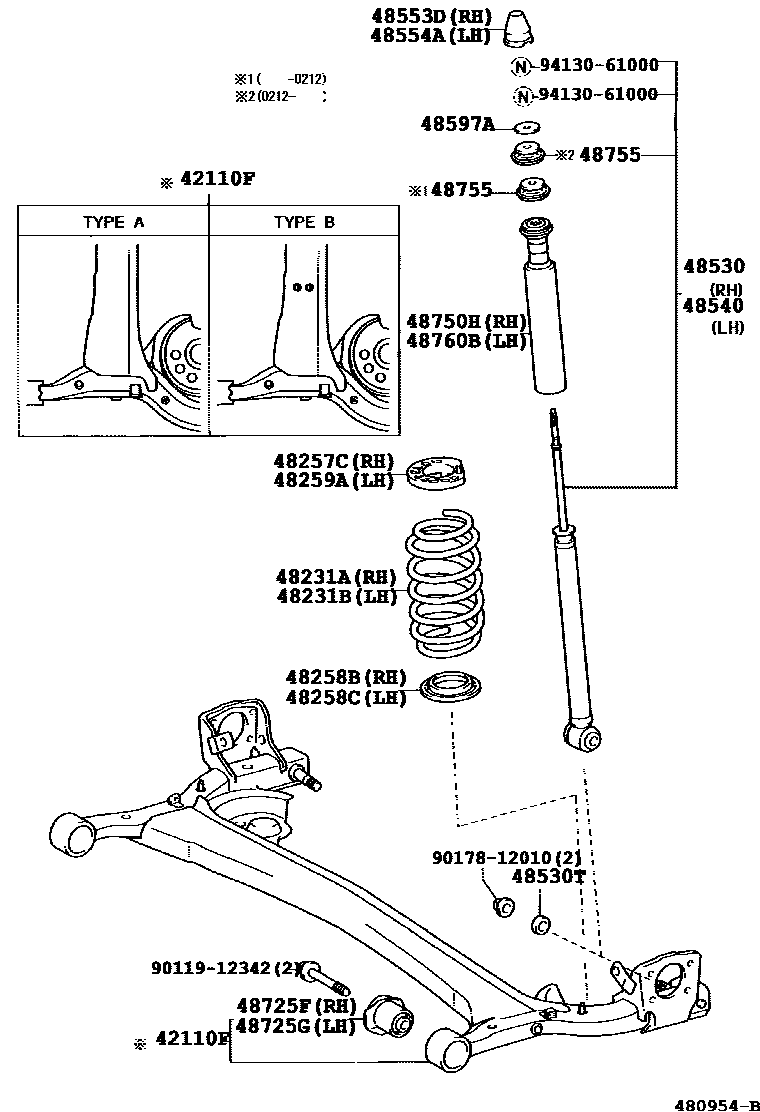

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE
TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE
TYPE B:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE
TYPE B:REFER TO ILLUSTRATION & ROUGH ROAD PACKAGE
48231ASPRING, COIL, REAR RH
ORANGE PAINTED
48231BSPRING, COIL, REAR LH
ORANGE PAINTED
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52021
MARK 48530-52022
MARK 48530-52041
MARK 48530-52042
MARK 48530-52060
MARK 48530-52061
MARK 48530-52700
MARK 48530-52710
MARK 48530-52750
48530TSPACER(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52021
MARK 48530-52022
MARK 48530-52041
MARK 48530-52042
MARK 48530-52060
MARK 48530-52061
MARK 48530-52700
MARK 48530-52710
MARK 48530-52750
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48725GBUSH, REAR AXLE CARRIER, LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912342
main90119-12342
9017812010
main90178-12010
9413061000
main94130-61000
21 parts on this diagram · 1 diagram in section
