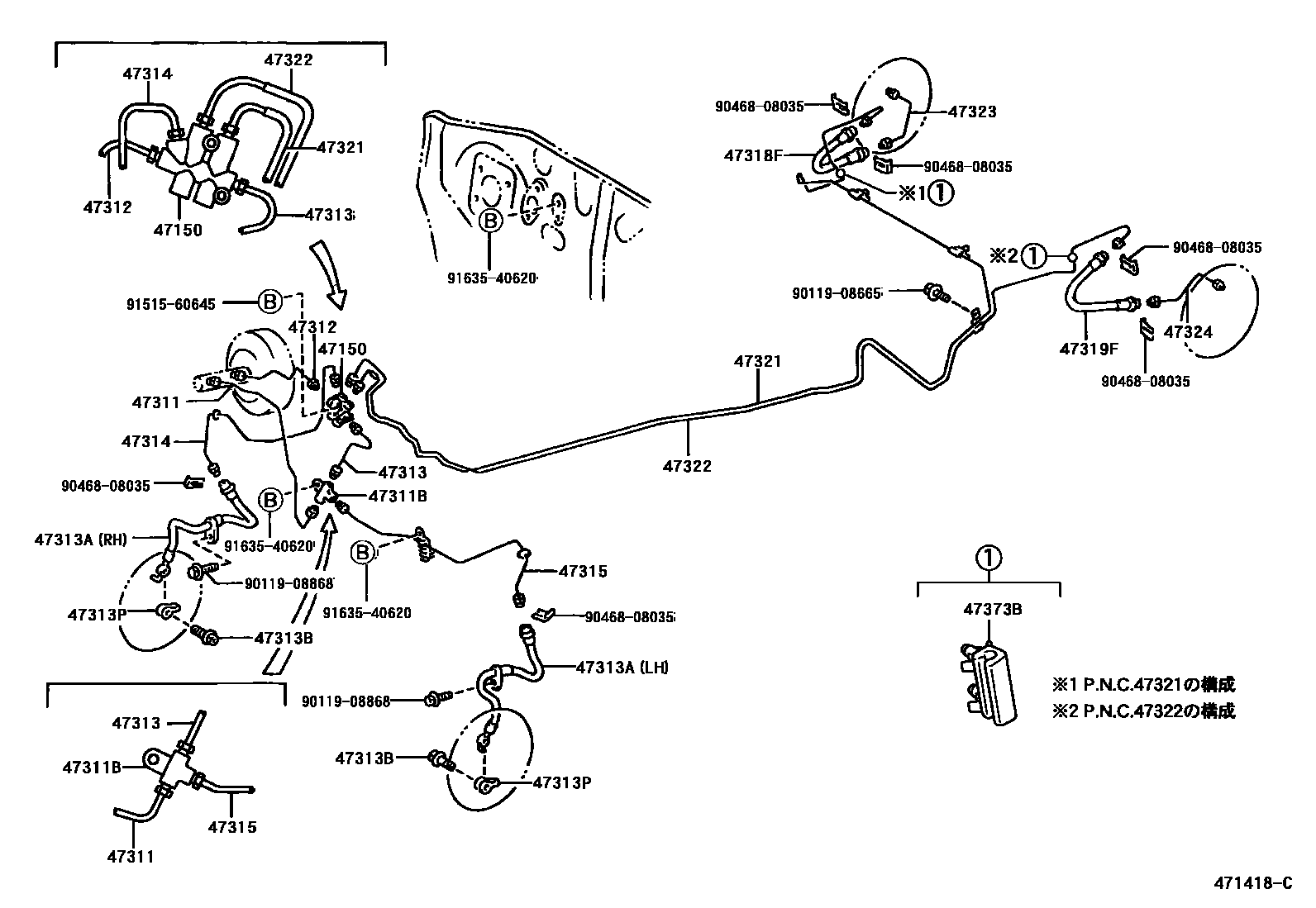

BRAKE TUBE & CLAMP

0001 1W/O(ABS) 0002 1W/O(ABS) 0003 1W(ABS) 0004 1W(ABS) 0005 1W/O(ABS) 0006 1W/O(ABS) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1

47150VALVE ASSY, PROPORTIONING

main47150-12150iNCP1#; SCP10199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS); W(ABS)

main47150-12240iNCP1#,SCP10199908-200212

main47150-33090iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47311TUBE, FRONT BRAKE, NO.1

main47311-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47311-52011iSCP10200110-200212

W(ABS)

main47311-52012iSCP10200108-200110

W(ABS)

main47311-52021iNCP10..LHD199908-200109

W(ABS)

main47311-52022iNCP10..LHD200212

W(ABS)

main47311-52031iNCP10..LHD199908-200212

W/O(ABS)

main47311-52040iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47311-52041iNCP10..RHD199908-200008

W/O(ABS)

main47311-52042iSCP10200108-200111

W/O(ABS)

main47311-52051iNCP1#..RHD200008-200110

W/O(ABS)

main47311-52052iNCP1#..RHD200110-200212

W/O(ABS)

main47311-52061iNCP13200101-200212

W(ABS)

main47311-52120iSCP10200111-200212

W/O(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10228iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main90412-10235iNCP10..RHD; SCP10199908-200101

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS); W(ABS)

main90413-10286iNCP1#..RHD; SCP10199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS); W/O(ABS)

main90413-10786iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

47312TUBE, FRONT BRAKE, NO.2

main47312-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47312-52011iNCP1#..RHD; SCP10200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS); W(ABS)

main47312-52021iNCP10..LHD200212

W(ABS)

main47312-52031iNCP10..LHD200212

W/O(ABS)

main47312-52040iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47312-52041iNCP10..RHD..GEN200008-200108

EXHAUST EMISSION CONTROL & W/O(ABS)

main47312-52051iNCP1#..RHD200008-200212

W/O(ABS)

main47312-52061iNCP13200101-200212

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47313-52011iNCP10..RHD; SCP10199908-200101

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS); W(ABS)

main47313-52020iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47313-52021iNCP1#..RHD; SCP10200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS); W/O(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A45iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH

main90947-02A46iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH

main90947-02C31iNCP1#; SCP10199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH; RH

main90947-02C32iNCP1#; SCP10199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH; LH

main90947-02D76iNCP1#,SCP10200308

RH

main90947-02D77iNCP1#,SCP10200308

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP1#,SCP10200212

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP1#,SCP10199903-200212

47314TUBE, FRONT BRAKE, NO.4

main47314-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47314-52011iNCP1#,SCP10..RHD200101-200212

W(ABS)

main47314-52020iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47314-52021iNCP1#..RHD; SCP10199908-200108

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS); W/O(ABS)

main47314-52022iNCP1#,SCP10..RHD200108-200111

W/O(ABS)

main47314-52031iNCP10..LHD200212

W/O(ABS)

main47314-52041iNCP10..LHD199908-200108

W(ABS)

main47314-52042iNCP10..LHD200108-200212

W(ABS)

main47314-52070iNCP1#,SCP10..RHD200111-200212

W/O(ABS)

47315TUBE, FRONT BRAKE, NO.5

main47315-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS)

main47315-52011iNCP10..RHD199908-200008

W(ABS)

main47315-52021iNCP10..LHD200212

W/O(ABS)

main47315-52030iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS)

main47315-52031iNCP1#..RHD; SCP10199908-200108

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS); W/O(ABS)

main47315-52032iNCP1#,SCP10..RHD200108-200110

W/O(ABS)

main47315-52041iNCP10..LHD199908-200212

W(ABS)

main47315-52061iNCP1#,SCP10..RHD200112-200212

W/O(ABS)

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A47iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C30iNCP1#; SCP10200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A47iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C30iNCP1#; SCP10199908-200212

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47321TUBE, REAR BRAKE, NO.1

main47321-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-52011iNCP10; SCP10199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-52012iNCP1#,SCP10200010-200212

47322TUBE, REAR BRAKE, NO.2

main47322-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-52011iNCP10; SCP10199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-52012iNCP1#,SCP10200010-200212

47323TUBE, REAR BRAKE, NO.3

main47323-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-52011iNCP10; SCP10199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-52012iNCP1#,SCP10200010-200202

main47323-52080iNCP1#,SCP10200202-200212

47324TUBE, REAR BRAKE, NO.4

main47324-52010iSCP10199903-199908

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47324-52011iNCP10; SCP10199908-200010

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47324-52012iNCP1#,SCP10200010-200202

main47324-52070iNCP1#,SCP10200202-200212

47373BCLAMP, BRAKE TUBE, NO.3

main47371-52030×2iNCP10,SCP10199903-200010

9011908665

main90119-08665

9011908868

main90119-08868

9046808035

main90468-08035

9151560645

main91515-60645

9163540620

main91635-40620

22 parts on this diagram · 10 diagrams in section
