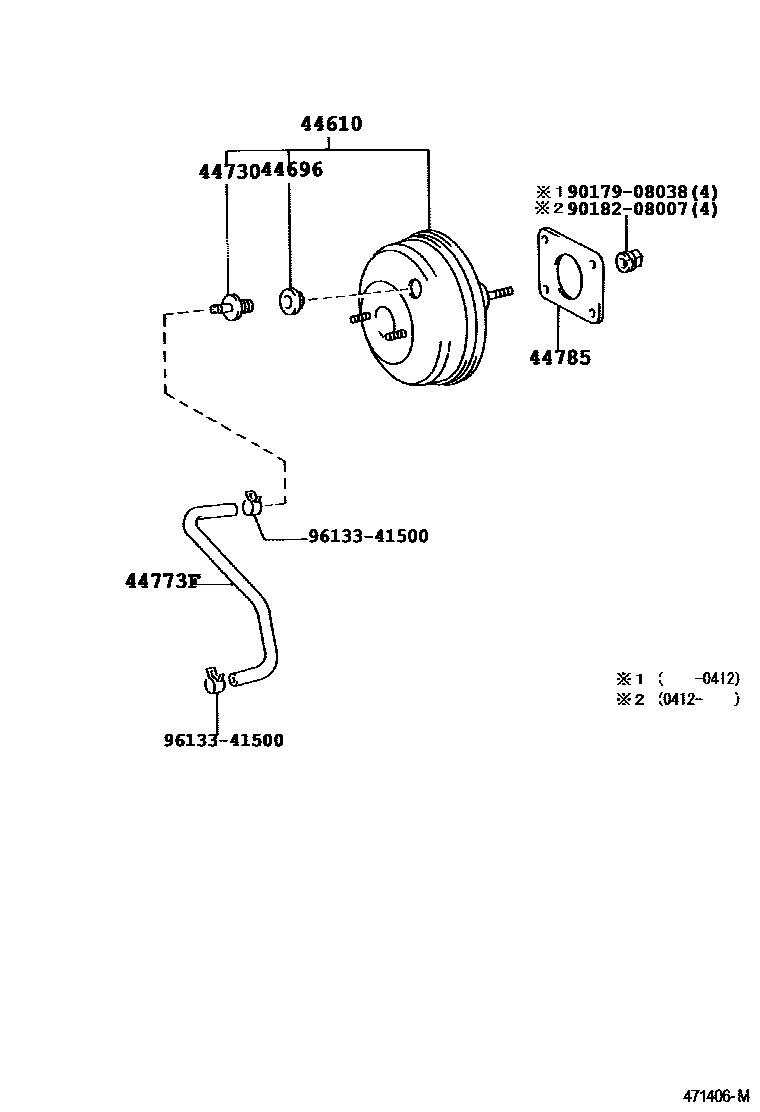

BRAKE BOOSTER & VACUUM TUBE

0001 1W/0(ABS) 0002 1W(ABS) 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-52020iSCP10200008-200109

EXHAUST EMISSION CONTROL

main44610-52020iNCP10,SCP10..RHD199903-200008

main44610-52021iSCP10200109-200410

main44610-52022iNCP1#,SCP10..RHD200411

main44610-52030iNCP10..LHD199908-200109

EXHAUST EMISSION CONTROL

main44610-52040iNCP1#..RHD200008-200212

main44610-52050iNCP10..LHD200008-200309

main44610-52051iNCP10..LHD200309

44696GROMMET, CHECK VALVE

main90480-24015iNCP1#199908-200212

main90480-24439iNCP10..RHD..GEN200008-200109

EXHAUST EMISSION CONTROL

main90480-24439iNCP10,SCP10..RHD199903-200410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP1#,SCP10..RHD199903-200410

main44730-20080iNCP10..RHD..GEN200008-200109

EXHAUST EMISSION CONTROL

main44730-28030iNCP10..LHD200305

main44730-30010iNCP1#199908-200212

44773FHOSE, UNION TO CHECK VALVE

main44773-52010iSCP10199903-200212

main44773-52020iNCP1#..RHD199908-200212

main44773-52040iNCP10..LHD199908-200212

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP1#,SCP10199903-200212

9017908038

main90179-08038

9018208007

main90182-08007

9613341500

main96133-41500

8 parts on this diagram · 4 diagrams in section
