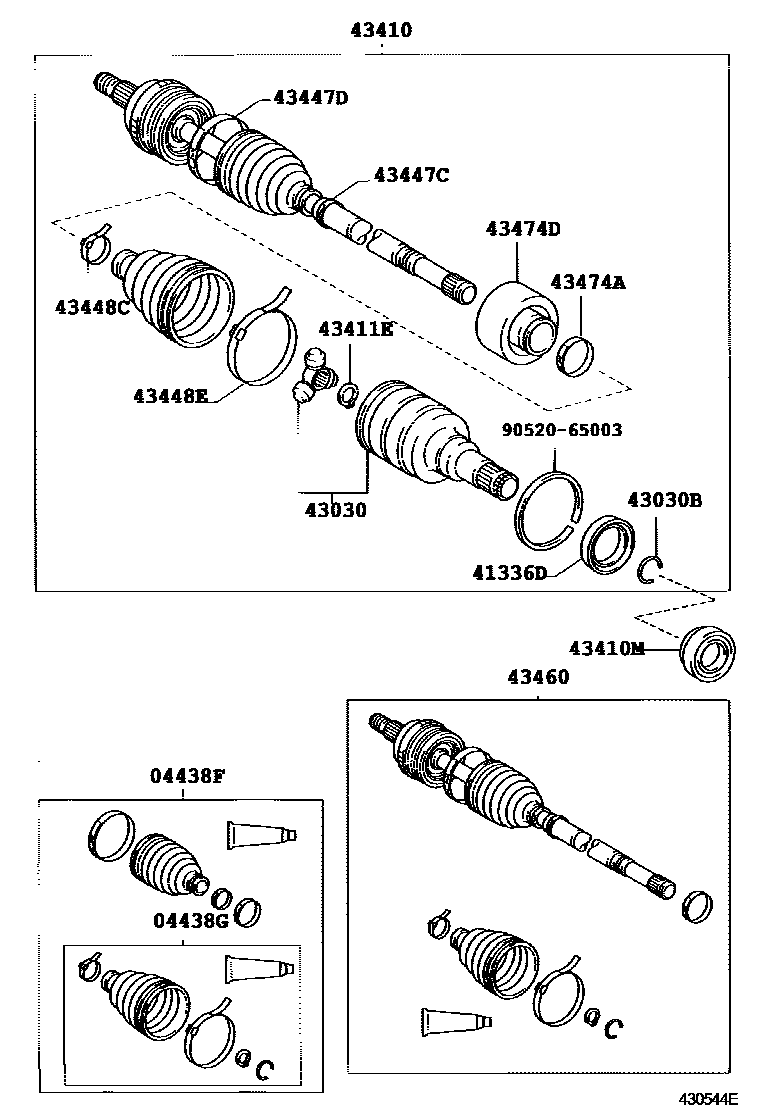

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
TYPE A:REFER TO ILLUSTRATION
sub04427-52240
W(ABS)
TYPE C:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
TYPE C:REFER ILLUST.
TYPE A OR TYPE D:REFER TO ILLUSTRATION
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
TYPE B OR TYPE C:REFER TO ILLUSTRATION
43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE B:REFER TO ILLUSTRATION
W(ABS)
W(ABS)
W(ABS)
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
TYPE B OR TYPE C:REFER TO ILLUSTRATION
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=29.3
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=82.1,TYPE B OR TYPE C:REFER TO ILLUSTRATION
ID=80.5
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B OR TYPE C:REFER TO ILLUSTRATION
TYPE A OR TYPE D:REFER TO ILLUSTRATION
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B OR TYPE C:REFER TO ILLUSTRATION
TYPE A OR TYPE D:REFER TO ILLUSTRATION
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
W(ABS)
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION, W(ABS)
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION,W(ABS)
TYPE B:REFER TO ILLUSTRATION,W(ABS)
TYPE C:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION, W(ABS)
sub43460-59236
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
43474DDAMPER, FRONT DRIVE SHAFT, RH
TYPE B:REFER TO ILLUSTRATION
TYPE A OR TYPE D:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
9052065003
main90520-65003
16 parts on this diagram · 6 diagrams in section
