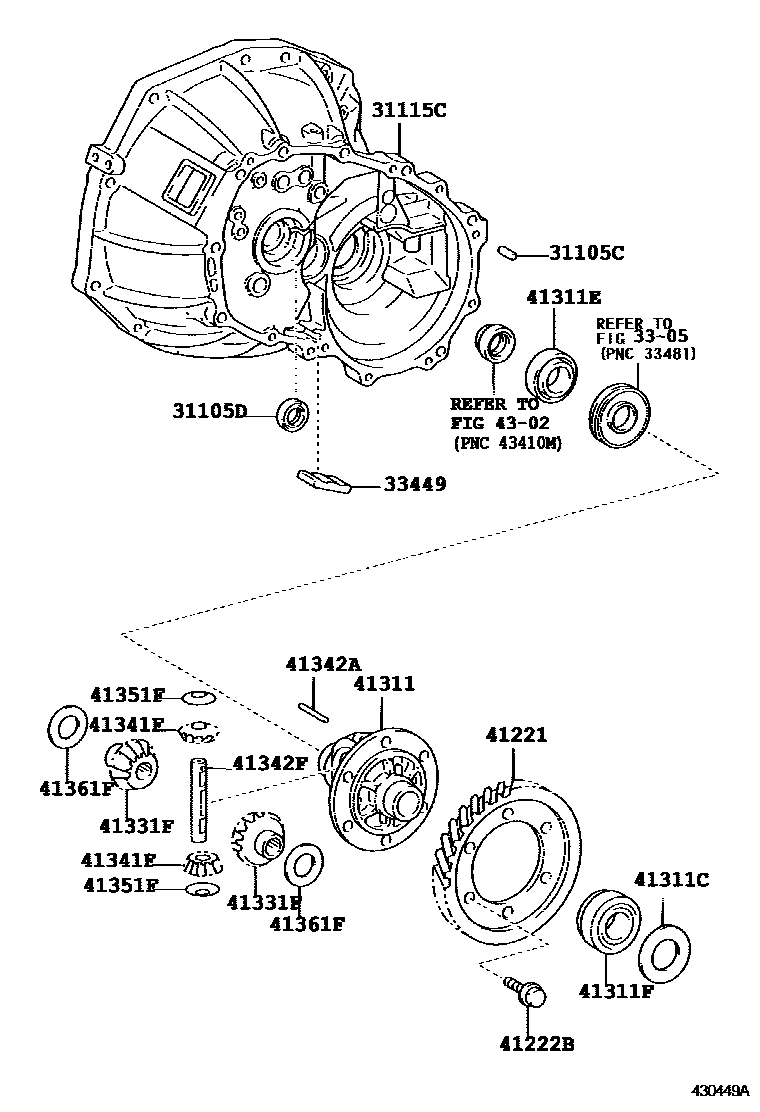

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
3305TRANSMISSION GEAR (MTM)
41221GEAR, FRONT DIFFERENTIAL RING
LEADED GASOLINE SPEC
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.20,MARK A
T=1.25,MARK B
T=1.30,MARK C
T=1.35,MARK D
T=1.40,MARK E
T=1.45,MARK F
T=1.50,MARK G
T=1.55,MARK H
T=1.60,MARK J
T=1.65,MARK K
T=1.70,MARK L
T=1.75,MARK M
T=1.80,MARK N
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
T=19.4
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
T=0.75
T=0.80
T=0.85
T=0.90
T=0.95
4302FRONT DRIVE SHAFT
18 parts on this diagram · 3 diagrams in section
