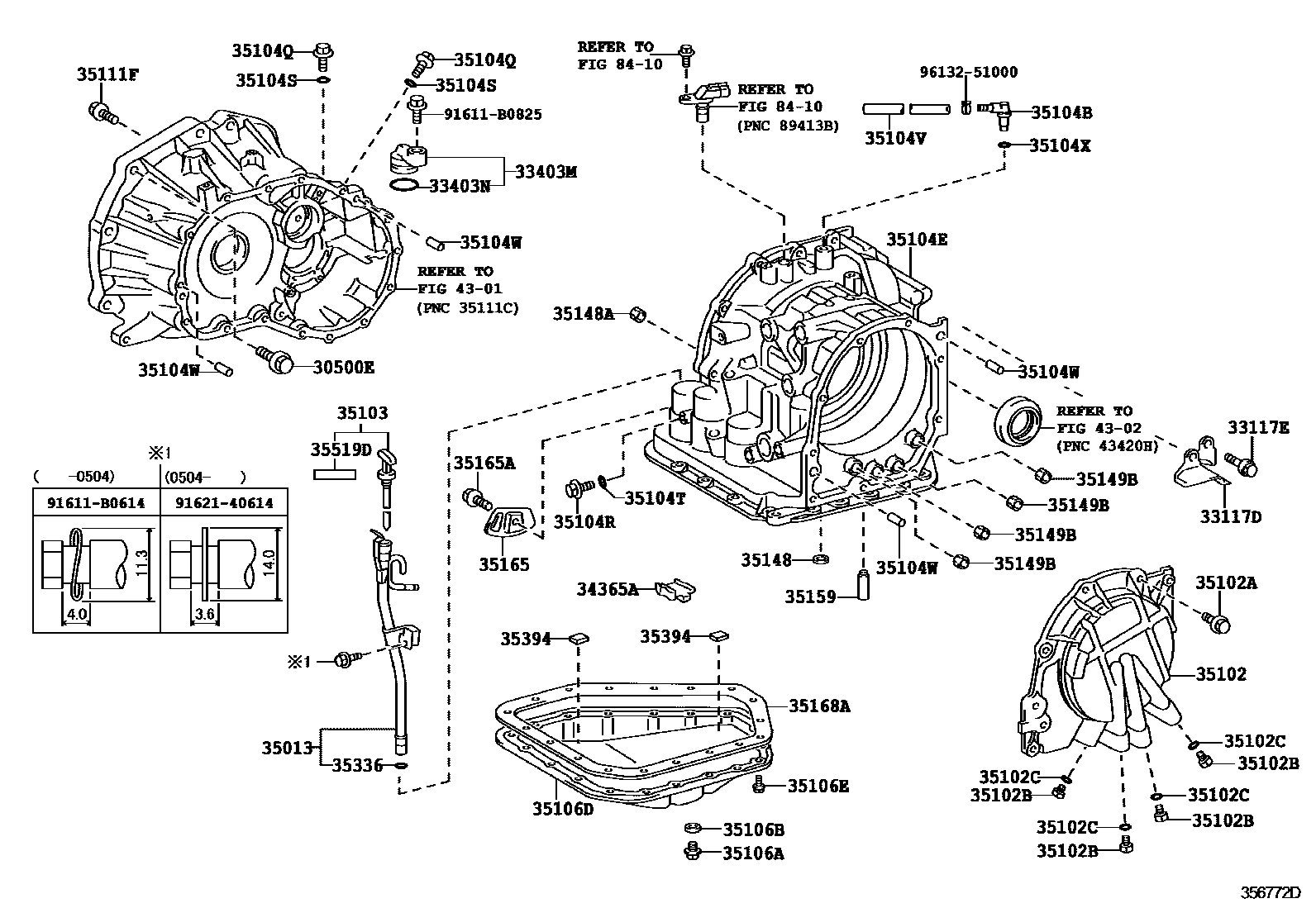

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U440E,U441E 0003 1U440E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91612-61050×7iNCP10..ATM199908-200212

*10-1.25PX50-30

main91619-61245×5iSCP10..ATM199903-200212

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-52010iNCP10,SCP10..ATM199903-200212

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iSCP10..ATM199903-199907

main91621-60818×2iNCP10,SCP10..ATM199907-200212

main91621-G0818×2iNCP10,SCP10..ATM200504

main91651-B0820×2iNCP10,SCP10..ATM200212-200503

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iSCP10..ATM199903-200212

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iSCP10..ATM199903-200212

34365ARETAINER, OUTER RACE

main34365-52020iNCP10,SCP10..ATM200212

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-52010iSCP10..ATM199903-200112

main35013-52020iNCP10..ATM200212-200507

main35013-52021iNCP10..ATM200507

main35013-52090iSCP10..ATM200112-200205

main35013-52120iSCP10..ATM200205-200212

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52010iNCP10,SCP10..ATM199903-200112

main35102-52030iSCP10..ATM200111-200212

W(ABS)

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08375×9iNCP10,SCP10..ATM200212

*8-1.25PX25-25

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iNCP10,SCP10..ATM199903-200212

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iNCP10,SCP10..ATM199903-200212

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-52010iSCP10..ATM199903-200112

main35103-52020iNCP10..ATM200212

main35103-52100iSCP10..ATM200212

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156iNCP10,SCP10..ATM199903-200212

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52010iSCP10..ATM200212

main35104-52020iNCP10..ATM199908-200212

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iNCP10,SCP10..ATM199903-200212

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iNCP10,SCP10..ATM200212-200508

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iNCP10,SCP10..ATM200212

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196iNCP10,SCP10..ATM199903-200212

35104VHOSE (FOR BREATHER PLUG)

main90447-11044iSCP10..ATM199903-200112

W(ABS)

main90447-11045iSCP10..ATM199903-199908

main90447-11047iSCP10..ATM200112-200212

W(ABS)

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10034×4iNCP10,SCP10..ATM200212

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iNCP10,SCP10..ATM199903-200212

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iNCP10,SCP10..ATM200212

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iNCP10,SCP10..ATM199903-200212

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52010iSCP10..ATM200212

main35106-52030iNCP10..ATM199908-200212

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iNCP10,SCP10..ATM199903-200212

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×16iNCP10,SCP10..ATM200212

*8-1.25PX30-25

35148GASKET, GOVERNOR APPLY, NO.1

main35145-60020iNCP10,SCP10..ATM200305

main35148-16010iNCP10,SCP10..ATM200212-200305

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iNCP10,SCP10..ATM199903-200212

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020×4iNCP10,SCP10..ATM199903-200212

35159GASKET, BRAKE DRUM

main35159-52010iNCP10,SCP10..ATM199903-200212

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010iNCP10,SCP10..ATM199903-200212

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iNCP10,SCP10..ATM200212

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010iNCP10,SCP10..ATM200212

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP10,SCP10..ATM199903-200212

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iNCP10,SCP10..ATM200212-200407

main35394-48010×2iNCP10,SCP10..ATM200407

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iSCP10..ATM199903-199904

main35519-30010iSCP10..ATM199904-199908

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

91611B0614

main91611-B0614

91611B0825

main91611-B0825

9162140614

main91621-40614

9613251000

main96132-51000

43 parts on this diagram · 2 diagrams in section
