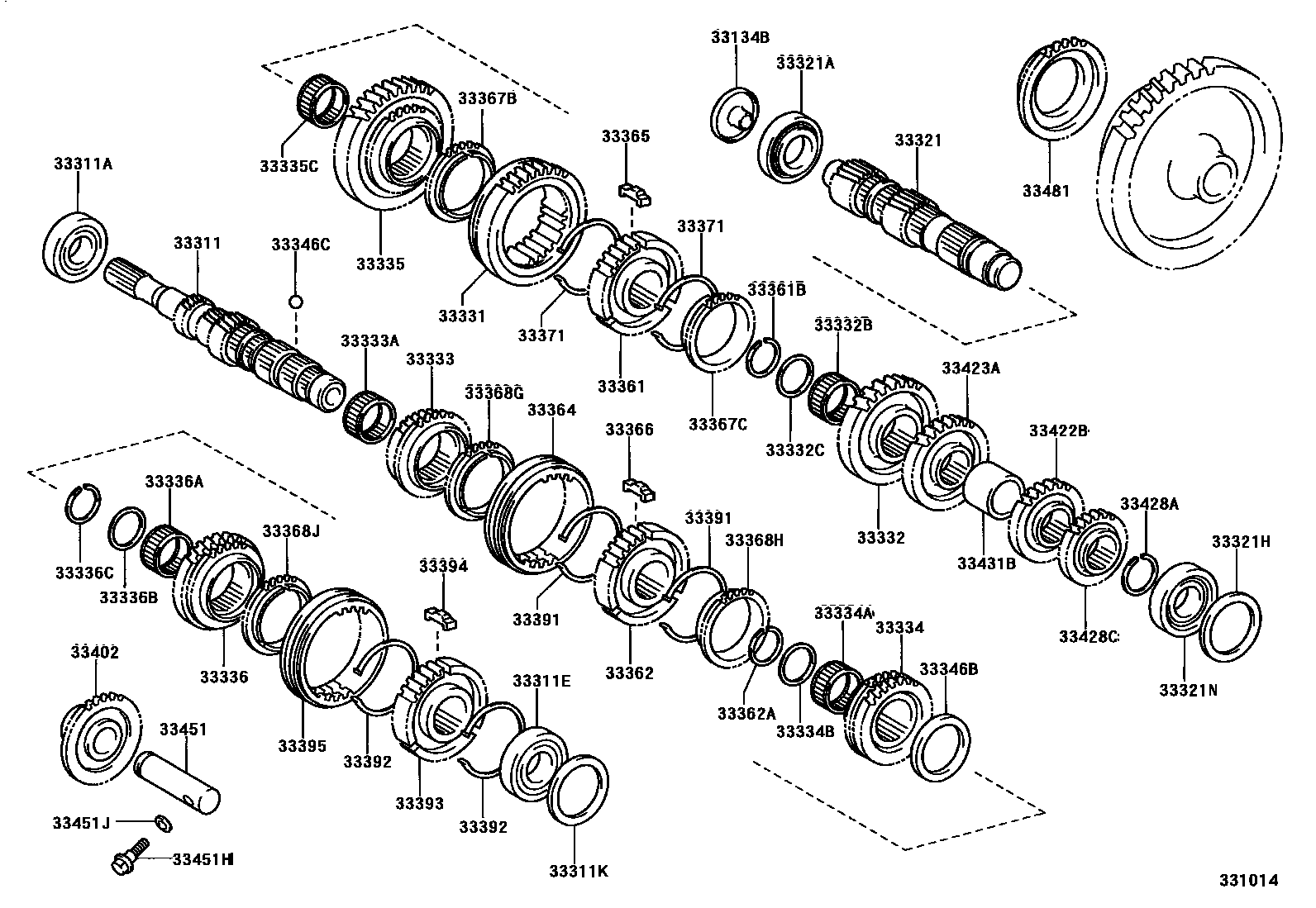

TRANSMISSION GEAR (MTM)
33134BCOVER, OUTPUT SHAFT(MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
T=2.30,MARK R
T=2.35,MARK S
T=2.40,MARK T
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.55,MARK A
T=1.60,MARK B
T=1.65,MARK C
T=1.70,MARK D
T=1.75,MARK E
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
sub33034-10051
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12190
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.28,MARK 1
T=2.34,MARK 2
T=2.40,MARK 3
T=2.46,MARK 4
T=2.52,MARK 5
T=2.58,MARK 6
33346BWASHER, 5TH GEAR THRUST
33346CBALL (FOR 5TH GEAR THRUST WASHER)
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR SIDE
2ND GEAR SIDE
33367BRING, SYNCHRONIZER (FOR 1ST GEAR)
33367CRING, SYNCHRONIZER (FOR 2ND GEAR)
33368RING, SYNCHRONIZER, NO.2
3RD GEAR SIDE
4TH GEAR SIDE
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33423AGEAR, 3RD DRIVEN
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.22,MARK A
T=2.28,MARK B
T=2.34,MARK C
T=2.40,MARK D
T=2.46,MARK E
T=2.52,MARK F
T=2.58,MARK G
T=2.64,MARK H
T=2.70,MARK J
33431BSPACER, OUTPUT SHAFT
sub33431-52020
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=34,MARK 34X30-32
N=34
56 parts on this diagram · 2 diagrams in section
