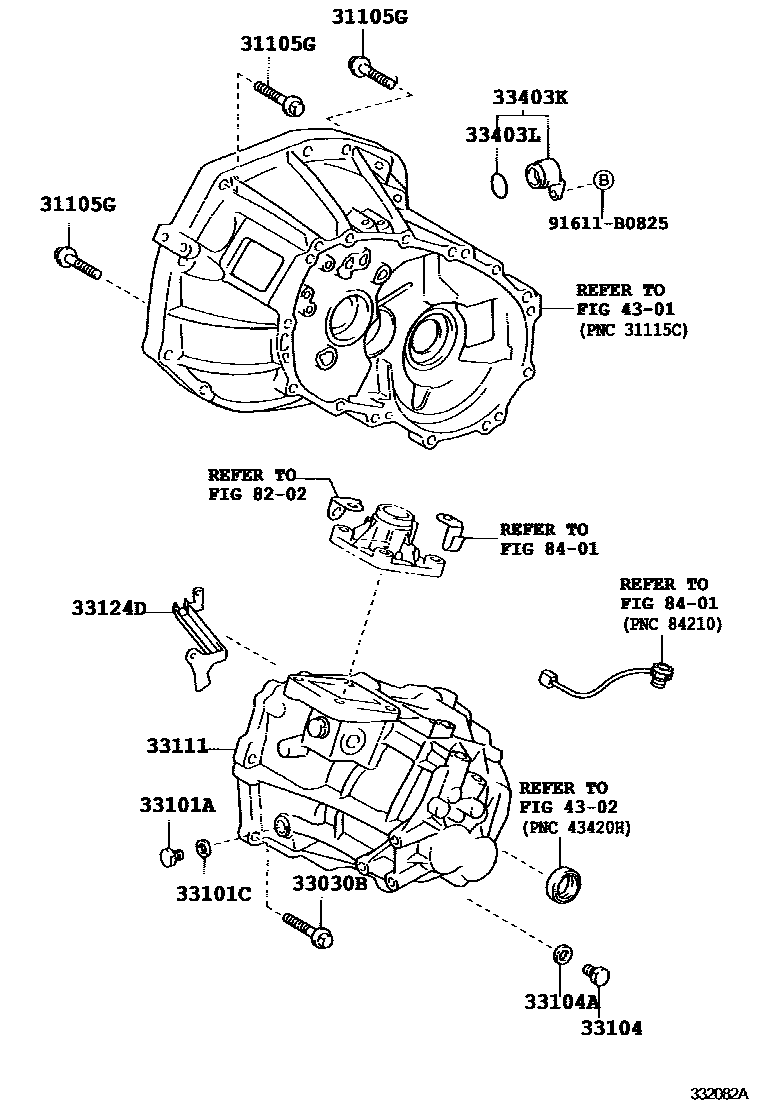

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C550 0002 1C50F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08139iSCP10..MTM199903-200212

*8-1.25PX35-30

main91511-C0835iSCP10..MTM200212

*8-1.25PX35-30

main91612-61050iNCP1#..MTM199908-200212

*10-1.25PX50-30

main91619-61245iSCP10..MTM199903-200212

*12-1.25PX45-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iNCP1#..MTM199908-200408

*8-1.25PX45-27.5

main90105-08139iSCP10..MTM199903-200212

*8-1.25PX35-30

main90105-08430iNCP1#..MTM200408

*8-1.25PX45-27.5

main91511-C0835iSCP10..MTM200212

*8-1.25PX35-30

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNCP1#,SCP10..MTM199903-200506

main90341-18033iNCP1#..MTM200506

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP1#,SCP10..MTM199903-200212

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNCP1#,SCP10..MTM199903-200506

main90341-18033iNCP1#..MTM200506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP1#,SCP10..MTM199903-200212

33111CASE, MANUAL TRANSMISSION

main33111-16053iNCP1#..MTM199908-200212

main33111-52010iSCP10..MTM199903-200212

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNCP1#..MTM199908-200212

main33124-52010iSCP10..MTM199903-200212

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iSCP10..MTM199903-200212

33403LRING, O

main96711-24030iSCP10..MTM199903-200212

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

15 parts on this diagram · 2 diagrams in section
