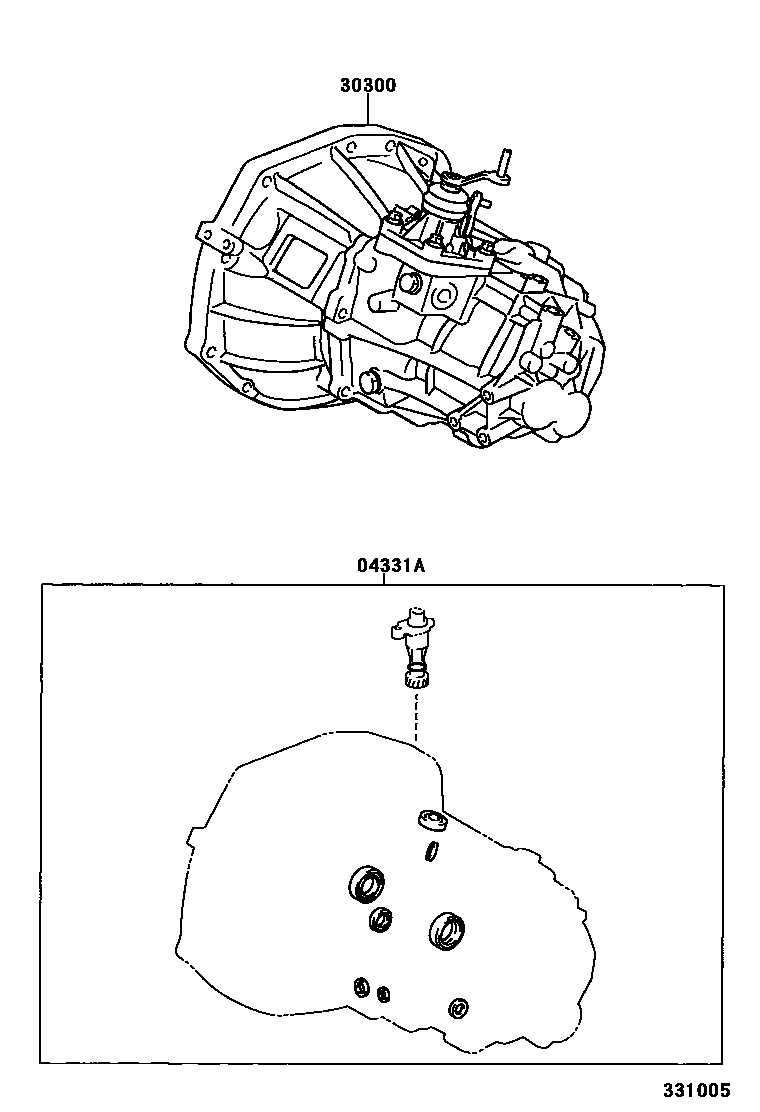

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C550 0002 1C154

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-52010iSCP10..MTM199903-200212

main04331-52040iNCP1#..MTM199908-200212

main04331-52120iNCP1#..MTM200407-200508

main04331-52170iNCP10..MTM..GEN200407-200508

LEADED GASOLINE SPEC

main04331-52310iSCP10..MTM200411-200508

30300TRANSAXLE ASSY, MANUAL

main30300-52020iNCP10..MTM199908-200109

main30300-52021iNCP10..MTM200212-200508

C154

main30300-52030iNCP10..MTM..GEN199908-200109

LEADED GASOLINE SPEC

main30300-52031iNCP10..MTM..GEN200109-200212

LEADED GASOLINE SPEC

main30300-52050iSCP10..MTM199903-200206

main30300-52051iSCP10..MTM200212-200508

C550

main30300-52130iNCP13200101-200109

main30300-52131iNCP13200109-200212

2 parts on this diagram · 2 diagrams in section
