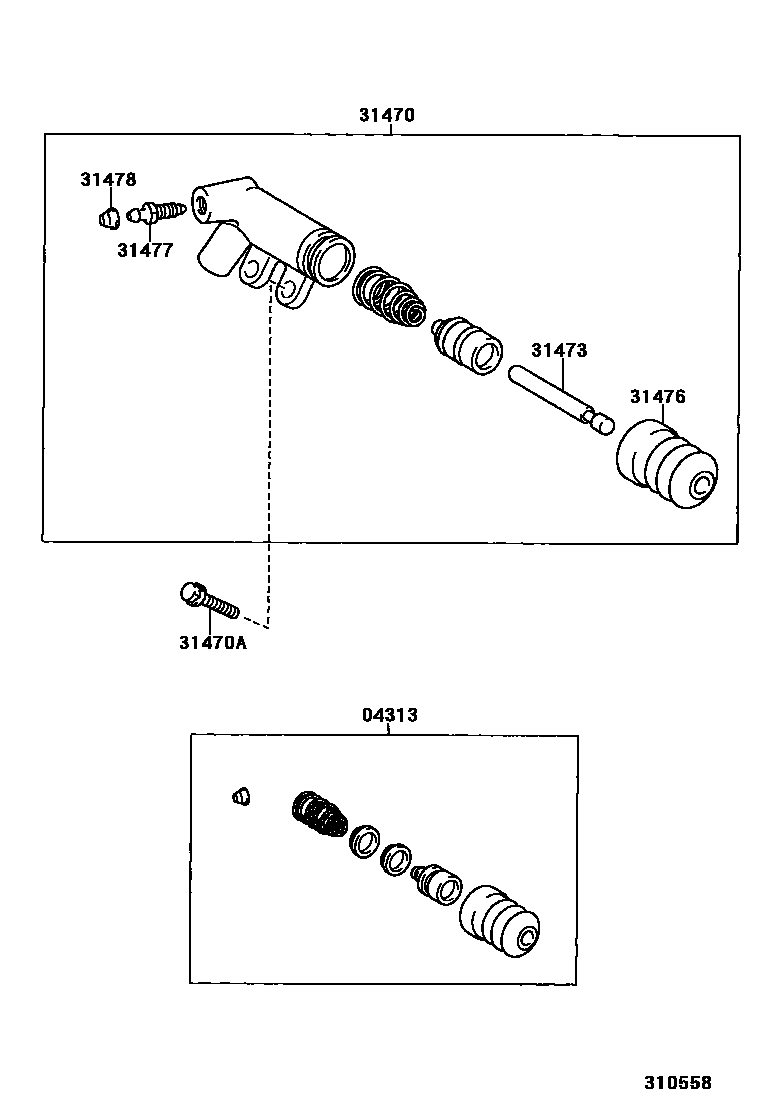

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12060iNCP1#..MTM200407

main04313-17010iSCP10..MTM200212

main04313-18020iNCP1#..MTM199908-200109

main04313-35060iNCP1#..MTM200212-200407

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52010iNCP1#..MTM199908-200109

main31470-52011iNCP1#..MTM200109-200212

sub31470-12200

main31470-52020iSCP10..MTM199903-200212

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iNCP1#,SCP10..MTM199903-200212

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iSCP10..MTM199903-200212

main31473-32010iNCP1#..MTM199908-200212

main31473-35050iNCP1#..MTM200212

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP1#,SCP10..MTM199903-200212

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP1#,SCP10..MTM199903-200212

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP1#,SCP10..MTM199903-200212

7 parts on this diagram · 2 diagrams in section
