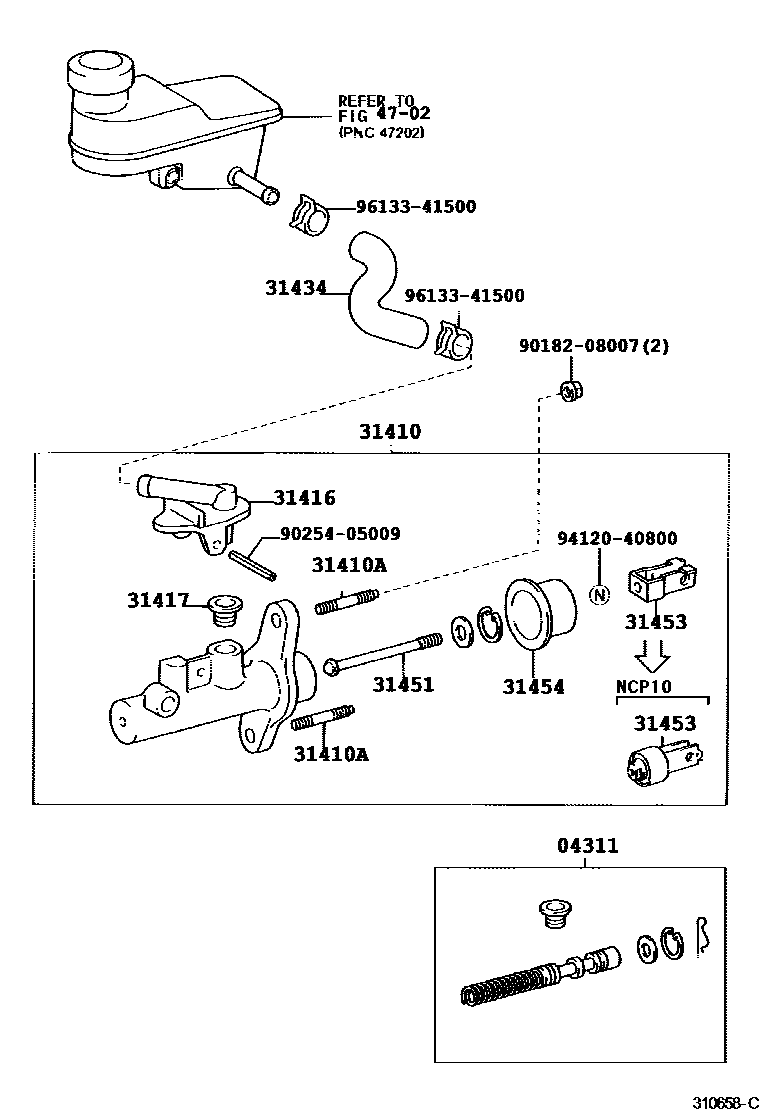

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iNCP1#,SCP10..MTM199903-200212

31410CYLINDER ASSY, CLUTCH MASTER

main31420-16020iSCP10..MTM199908-200212

main31420-52010iNCP1#..MTM199908-200109

sub31420-52030

main31420-52020iSCP10..MTM199903-199908

main31420-52030iNCP1#..MTM200109-200212

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iNCP1#,SCP10..MTM199903-200212

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-42010iSCP10..MTM199903-199908

main31416-52010iNCP1#,SCP10..MTM199908-200212

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iSCP10..MTM199903-200212

31434TUBE, CLUTCH RESERVOIR

main31434-52011iNCP10..LHD..MTM200007-200212

main31434-52030iSCP10..MTM199903-200212

main31434-52040iNCP10,SCP10..MTM199908-200009

sub31434-52030

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iSCP10..MTM199903-200212

main31451-36040iNCP1#..MTM199908-200109

main31451-52010iNCP1#..MTM200109-200212

sub31451-35080

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iNCP1#..MTM199908-200212

main31453-10040iSCP10..MTM199903-200212

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iNCP1#,SCP10..MTM199903-200212

4702

9018208007

main90182-08007

9025405009

main90254-05009

9412040800

main94120-40800

9613341500

main96133-41500

14 parts on this diagram · 1 diagram in section
