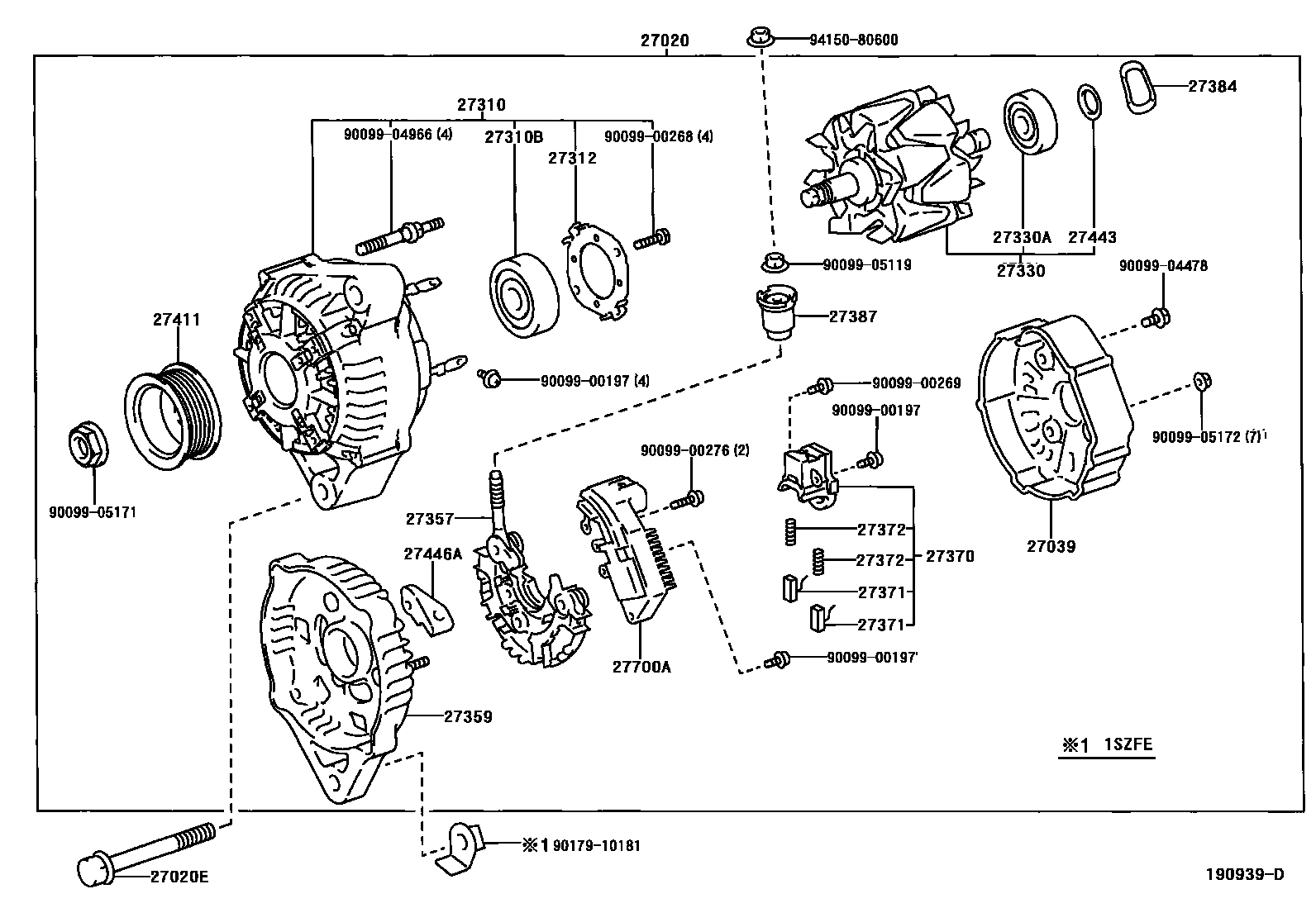

ALTERNATOR

0001 112V 70A 0002 112V 80A 0003 112V 70A 0004 112V 80A

27020ALTERNATOR ASSY

main27060-21030i1NZFE..NCP13200101-200212

12V 80A

main27060-21031i1NZFE,2NZFE..NCP1#200305

12V 80A

main27060-21040i2NZFE..NCP10199908-200212

12V 70A

main27060-21041i2NZFE..NCP10200305

12V 70A

main27060-23010i1SZFE..SCP10199903-199909

12V 70A

main27060-23020i1SZFE..SCP10200212

12V 80A

main27060-23070i1SZFE..SCP10200212

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE,2NZFE..NCP1#200212-200508

main90105-10468i1SZFE..SCP10200212-200508

27039COVER, ALTERNATOR REAR END

main27039-21020i2NZFE..NCP10199908-200104

main27039-21060i2NZFE..NCP10200104-200212

main27039-22050i1NZFE..NCP13200104-200212

main27039-46190i1NZFE..NCP13200101-200104

main27039-67100i1SZFE..SCP10199903-200212

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-21020i2NZFE..NCP10199908-200212

main27310-21030i1NZFE..NCP13200101-200212

main27310-23030i1SZFE..SCP10199903-200212

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10219i1NZFE..NCP13200101-200212

main90099-10220i2NZFE,1SZFE..NCP10,SCP10199903-200212

27312PLATE, RETAINER

main27312-42010i1NZFE..NCP13200101-200212

main27312-72100i2NZFE,1SZFE..NCP10,SCP10199903-200212

27330ROTOR ASSY, ALTERNATOR

main27330-16390i1NZFE,2NZFE,1SZFE..NCP1#,SCP10200212

12V 80A

main27330-67100i2NZFE,1SZFE..NCP10,SCP10200212

12V 70A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1NZFE..NCP13200101-200212

main90099-10216i2NZFE,1SZFE..NCP10,SCP10199903-200212

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-21060i2NZFE,1SZFE..NCP10,SCP10200204-200212

12V 70A

main27357-22050i1NZFE,2NZFE,1SZFE..NCP1#,SCP10200212

12V 80A

main27357-23040i1NZFE..NCP13200101-200212

main27357-67100i2NZFE,1SZFE..NCP10,SCP10199903-200204

27359FRAME, ALTERNATOR RECTIFIER END

main27359-21020i2NZFE..NCP10199908-200212

main27359-21030i1NZFE..NCP13200101-200212

main27359-23030i1SZFE..SCP10199903-200212

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i2NZFE..NCP10199908-200212

12V 70A

main27370-58320i1SZFE..SCP10199903-200212

12V 70A

main27370-75060i1NZFE..NCP13200101-200212

27371BRUSH, ALTERNATOR

main27371-70300×2i2NZFE,1SZFE..NCP10,SCP10199903-200212

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i2NZFE,1SZFE..NCP10,SCP10199903-200012

main27372-87501×2i2NZFE,1SZFE..NCP10,SCP10200012-200212

27384WASHER

main27384-16380i2NZFE,1SZFE..NCP10,SCP10199903-200212

main27384-50030i1NZFE..NCP13200101-200212

27387INSULATOR, TERMINAL

main27387-42021i1NZFE..NCP13200101-200212

main27387-70171i2NZFE,1SZFE..NCP10,SCP10199903-200212

27411PULLEY, ALTERNATOR

main27411-11060i1NZFE..NCP13200101-200212

main27411-21030i1NZFE,2NZFE..NCP1#200305

12V 80A

main27411-42010i1SZFE..SCP10200212

12V 80A

main27411-65010i2NZFE..NCP10200212-200305

12V 70A

main27411-70140i2NZFE..NCP10200305

12V 70A

main27411-70200i1SZFE..SCP10199903-200212

12V 70A

27443COVER, ALTERNATOR BEARING

main27443-63020i1NZFE,2NZFE,1SZFE..NCP1#,SCP10199903-200212

27446ACLAMP

main27446-21020i1NZFE,2NZFE..NCP1#199908-200212

main27446-72250i1SZFE..SCP10199903-200212

27700AREGULATOR ASSY, GENERATOR

main27700-21010i1NZFE..NCP13200101-200212

main27700-21020i2NZFE..NCP10200212

12V 70A

main27700-23010i1SZFE..SCP10199903-199909

main27700-23020i1SZFE..SCP10200212

12V 70A

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017910181

main90179-10181

9415080600

main94150-80600

30 parts on this diagram · 4 diagrams in section
