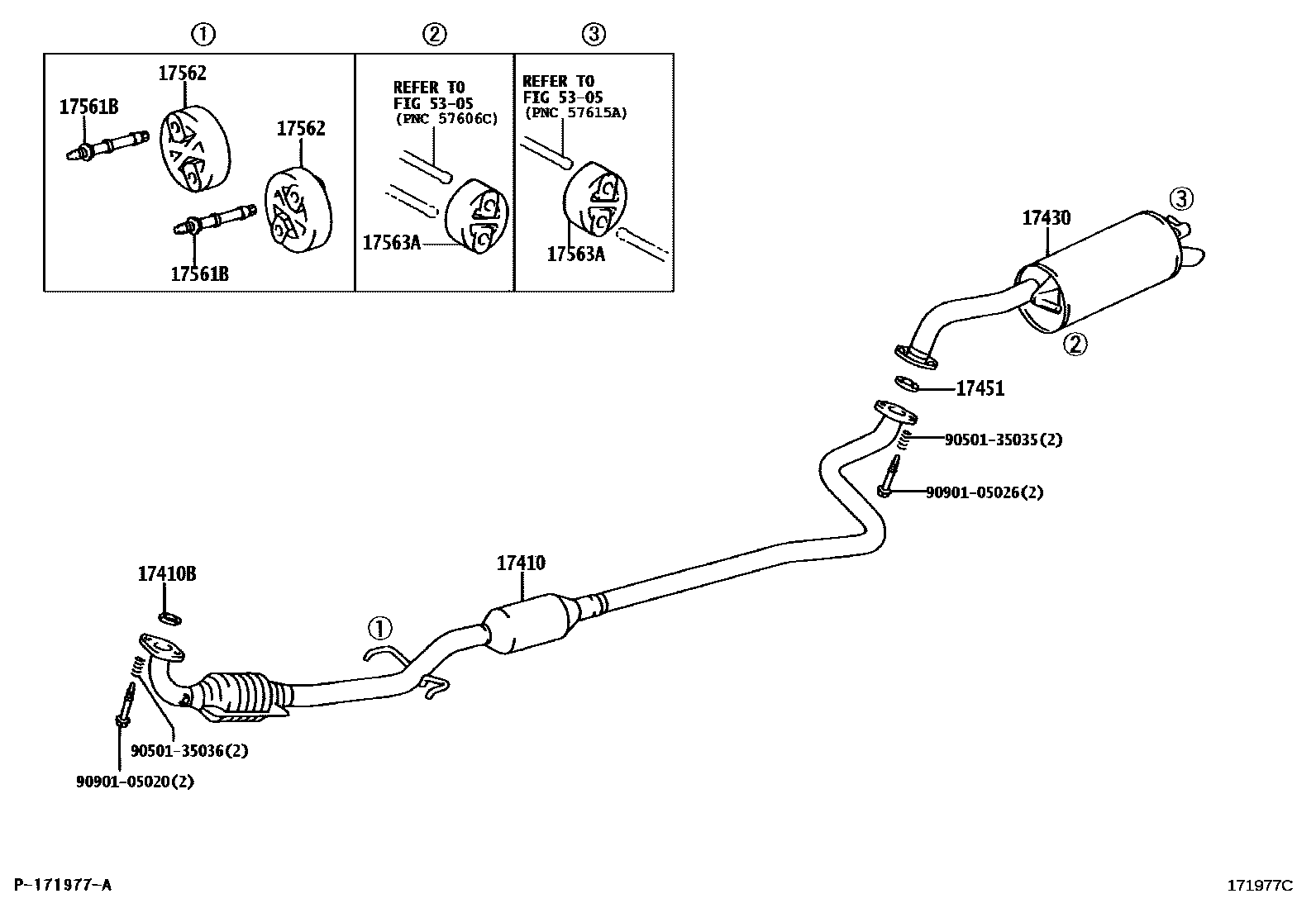

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21060i2NZFE..NCP10..MTM199908-200212

*115=TOYOTA/99-/Y

main17410-21070i2NZFE..NCP10..ATM199908-200212

*115=TOYOTA/99-/Y

main17410-21080i2NZFE..NCP10..GEN199908-200212

LEADED GASOLINE SPEC

main17410-21150i1NZFE..NCP13200101-200212

main17410-21351i1NZFE..NCP13200212

main17410-21380i2NZFE..NCP10200212

main17410-23070i1SZFE..SCP10199903-200212

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,2NZFE..NCP1#199908-200212

main17451-23030i1SZFE..SCP10200112-200212

main90917-06080i1SZFE..SCP10199903-200112

17430PIPE ASSY, EXHAUST, TAIL

main17430-21030i2NZFE..NCP10199908-200208

main17430-21031i2NZFE..NCP10200208-200212

main17430-21200i1NZFE..NCP13200101-200212

main17430-21540i1NZFE..NCP13200212

main17430-23030i1SZFE..SCP10199903-200208

main17430-23031i1SZFE..SCP10200208-200212

17451GASKET, EXHAUST PIPE

main17451-23010i1SZFE..SCP10199903-200212

main90917-06082i1NZFE,2NZFE..NCP1#199908-200212

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-74280×2i1NZFE,2NZFE..NCP1#199908-200212

main17584-23020×2i1SZFE..SCP10199903-200212

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040×2i1NZFE,2NZFE,1SZFE..NCP1#,SCP10200212

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-46040×2i1SZFE..SCP10199903-200212

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 3 diagrams in section
