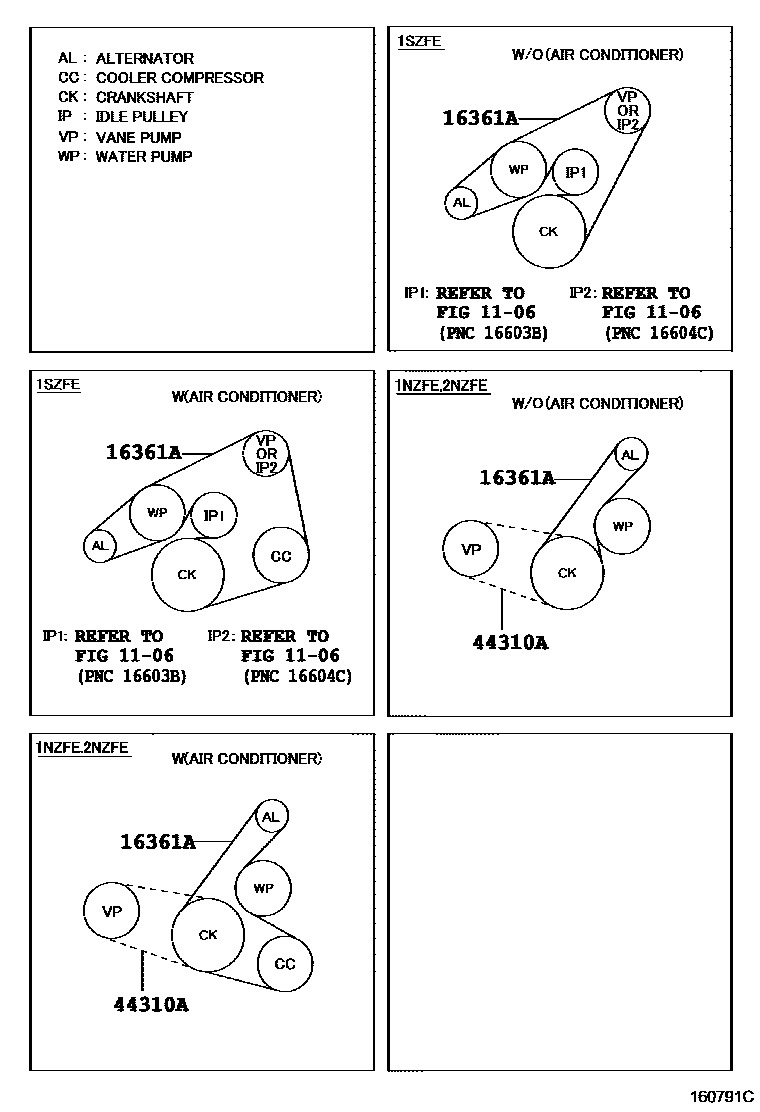

V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02475i1SZFE..SCP10199903-200008

L=1770

main90916-02476i1SZFE..SCP10200008-200212

L=1770

main90916-02478i1SZFE..SCP10199903-200211

L=1710

main90916-02499i1NZFE,2NZFE..NCP1#199909-200212

L=920

main90916-02500i1NZFE,2NZFE..NCP1#200308-200508

L=1180,W(AIR CONDITIONER)

main90916-02560i1SZFE..SCP10200211-200212

L=1770

main90916-02561i1SZFE..SCP10200212-200508

L=1710,BANDO

main90916-02564i1SZFE..SCP10200208-200212

L=1710,MITSUBOSHI

main90916-02566i1SZFE..SCP10200208-200212

L=1770,MITSUBOSHI

main90916-02569i1NZFE,2NZFE..NCP1#200306-200508

L=1170,W(AIR CONDITIONER)

main99364-90920i2NZFE..NCP10199908-199909

L=920

main99364-91180i2NZFE..NCP10199908-199909

L=1180

44310ABELT, V(FOR VANE PUMP)

main90916-02575iNCP1#200405

L=850,MITSUBOSHI

main90916-02576iNCP1#200405

L=850,BANDO

main99363-30850iNCP1#199908-200212

L=850

3 parts on this diagram · 1 diagram in section
