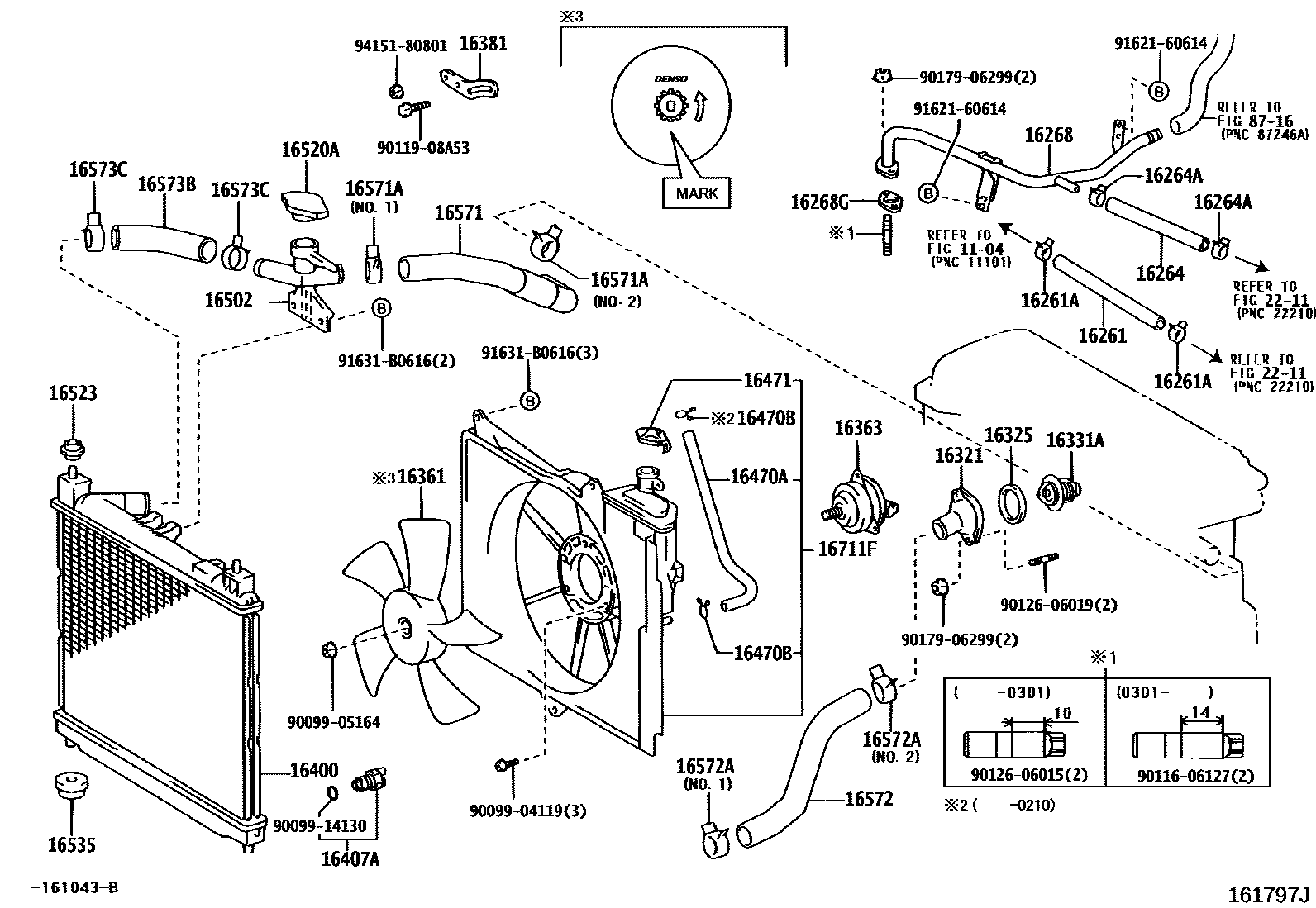

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16261HOSE, WATER BY-PASS

main99555-10185i1NZFE,2NZFE..NCP1#200212

L=185

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13054×2i1NZFE,2NZFE..NCP1#199908-200212

16264HOSE, WATER BY-PASS, NO.2

main16261-21040i1NZFE,2NZFE..NCP1#200202-200212

L=145

main99555-10200i1NZFE,2NZFE..NCP1#199908-200202

*H,L=150

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13054×2i1NZFE,2NZFE..NCP1#199908-200212

16268PIPE, WATER BY-PASS, NO.1

main16268-21020i1NZFE,2NZFE..NCP1#200212-200301

main16268-21021i1NZFE,2NZFE..NCP1#200301-200411

main16268-21022i1NZFE,2NZFE..NCP1#200411

16268GGASKET(FOR WATER BY-PASS PIPE)

main16258-21010i2NZFE..NCP10199908-200001

main16258-21020i1NZFE,2NZFE..NCP1#200001-200212

16321INLET, WATER

main16321-21020i1NZFE,2NZFE..NCP1#199908-200212

main16321-23010i1SZFE..SCP10200212

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1NZFE,2NZFE..NCP1#200212

16331ATHERMOSTAT

main90916-03093i1NZFE,2NZFE..NCP1#199908-200212

*WAX 82-95

main90916-03122i1SZFE..SCP10199903-200212

*WAX 80-93

16361FAN

main16361-21030i2NZFE..NCP10..GEN199908-200004

main16361-21050i1NZFE,2NZFE..NCP1#..ARL200311-200508

MARK=574:REF.ILLUST

main16361-21080i2NZFE..NCP10..GEN200212-200508

MARK=378:REF.ILLUST

main16361-23040i1SZFE..SCP10199903-200202

main16361-23050i1NZFE,2NZFE..NCP1#..ARL200212-200311

MARK=379:REF.ILLUST

main16361-28100i1SZFE..SCP10200202-200212

16363MOTOR, COOLING FAN

main16363-21050i1NZFE,2NZFE..NCP1#..ARL200307-200508

main16363-23020i1SZFE..SCP10; 2NZFE..NCP10..GEN200212-200306

main16363-23030i1NZFE,2NZFE..NCP1#..ARL199908-200212

main16363-28150i1SZFE..SCP10; 2NZFE..NCP10..GEN200306-200508

16381BAR, FAN BELT ADJUSTING

main16381-21020i2NZFE..NCP10200212

main16381-21030i1NZFE..NCP13200101-200212

main16381-23030i1SZFE..SCP10199903-200212

main16381-23070i1SZFE..SCP10200502-200508

16400RADIATOR ASSY

main16400-21060i2NZFE..NCP10..MTM200212-200508

main16400-21070i2NZFE..NCP10..ATM200212-200508

main16400-21080i1NZFE..NCP13200101-200212

main16400-23080i1SZFE..SCP10..MTM200212-200508

main16400-23090i1SZFE..SCP10..ATM199903-200112

main16400-23091i1SZFE..SCP10..ATM200112-200212

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1NZFE,2NZFE..NCP1#199908-200212

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33370i1SZFE..SCP10200212

L=420

main90445-12078i1NZFE,2NZFE..NCP1#200212-200508

*H,L=430

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE,2NZFE..NCP1#; 1SZFE..SCP10200212

16471CAP SUB-ASSY, RESERVE TANK

main16471-0J010i2NZFE..NCP10..GEN200212-200306

(L)

main16471-23010i1NZFE,2NZFE..NCP1#..ARL200212-200508

16502FILLER SUB-ASSY, WATER

main16502-21010i1NZFE,2NZFE..NCP1#199908-200212

16520ACAP SUB-ASSY, WATER FILLER

main16401-62100i1NZFE,2NZFE..NCP1#199908-200212

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-23010×2i1SZFE..SCP10199903-200212

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i1SZFE..SCP10199903-200212

16571HOSE, RADIATOR, INLET

main16571-21020i1NZFE,2NZFE..NCP1#199908-200212

main16571-23040i1SZFE..SCP10200212

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-30001i1SZFE..SCP10200503-200508

NO.1

main90467-31003i1SZFE..SCP10199903-200212

NO.1

main90467-33006i1NZFE,2NZFE..NCP1#; 1SZFE..SCP10200110-200212

NO.1 OR NO.2; NO.2

main90467-34003i1NZFE,2NZFE..NCP1#199908-200110

NO.1

16572HOSE, RADIATOR, OUTLET

main16572-21020i1NZFE,2NZFE..NCP1#200212

main16572-23020i1SZFE..SCP10..ATM199903-200212

main16572-23030i1SZFE..SCP10..MTM199903-200212

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-30001i1SZFE..SCP10200503-200508

NO.1

main90467-31003i1SZFE..SCP10199903-200212

NO.1

main90467-33006i1NZFE,2NZFE..NCP1#200212

NO.2

main90467-34003i1SZFE..SCP10199903-200212

NO.2

main90467-34004i1NZFE,2NZFE..NCP1#200212

NO.1

16573BHOSE, RADIATOR, NO.3

main16573-21010i1NZFE,2NZFE..NCP1#199908-200212

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i1NZFE,2NZFE..NCP1#200212

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-21030i1NZFE,2NZFE..NCP1#199908-200212

main16711-23060i1SZFE..SCP10199903-200212

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

9011606127

main90116-06127

9011908A53

main90119-08A53

9012606015

main90126-06015

9012606019

main90126-06019

9017906299

main90179-06299

9162160614

main91621-60614

91631B0616

main91631-B0616

9415180801

main94151-80801

42 parts on this diagram · 4 diagrams in section
