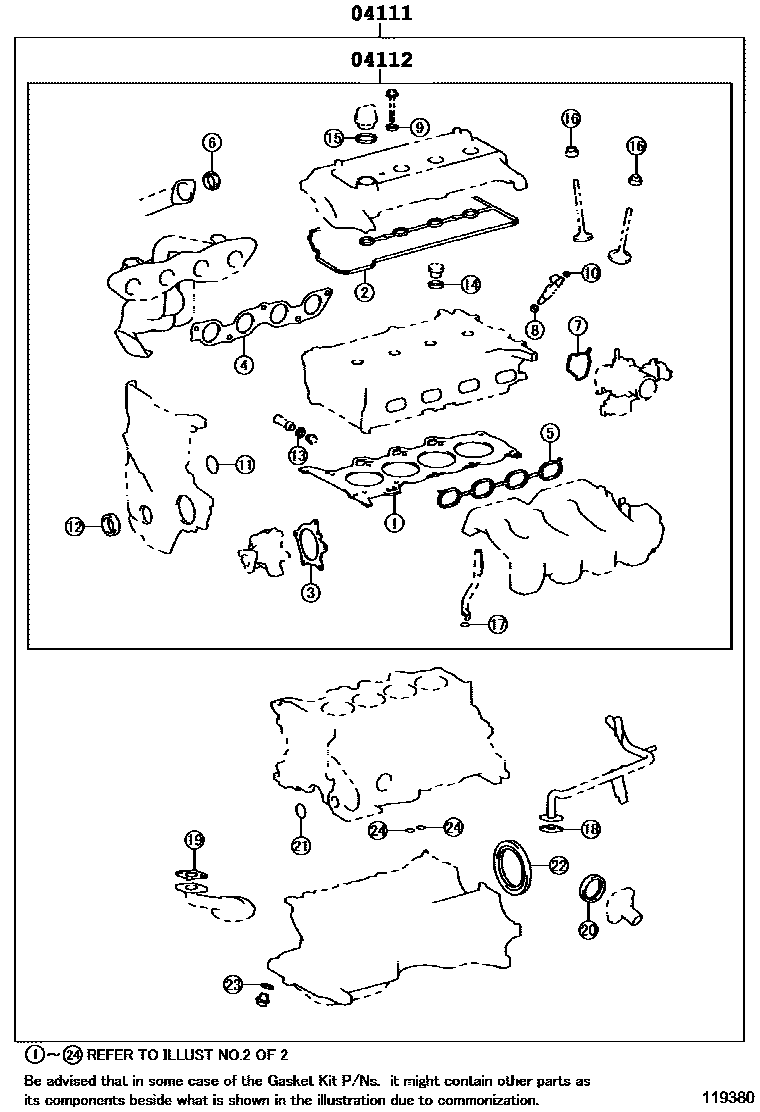

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-21040i1NZFE,2NZFE..NCP1#199908-200110

sub04111-21041

main04111-21060i1NZFE,2NZFE..NCP1#200111-200302

sub04111-21061

sub04111-21100

main04111-21061i1NZFE,2NZFE..NCP1#200302-200308

sub04111-21062

main04111-21062i1NZFE,2NZFE..NCP1#200308-200310

sub04111-21063

main04111-21140i1NZFE,2NZFE..NCP1#200310-200312

sub04111-21062

main04111-23040i1SZFE..SCP10199903-200212

main04111-23050i1SZFE..SCP10200212

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21040i1NZFE,2NZFE..NCP1#199908-200111

sub04112-21041

main04112-21060i1NZFE,2NZFE..NCP1#200111-200302

sub04112-21061

sub04112-21100

main04112-21061i1NZFE,2NZFE..NCP1#200302-200308

sub04112-21062

main04112-21062i1NZFE,2NZFE..NCP1#200308-200310

sub04112-21063

main04112-21140i1NZFE,2NZFE..NCP1#200310-200312

sub04112-21062

main04112-23040i1SZFE..SCP10199903-200212

main04112-23050i1SZFE..SCP10200212

2 parts on this diagram · 4 diagrams in section
